Rohde & Schwarz

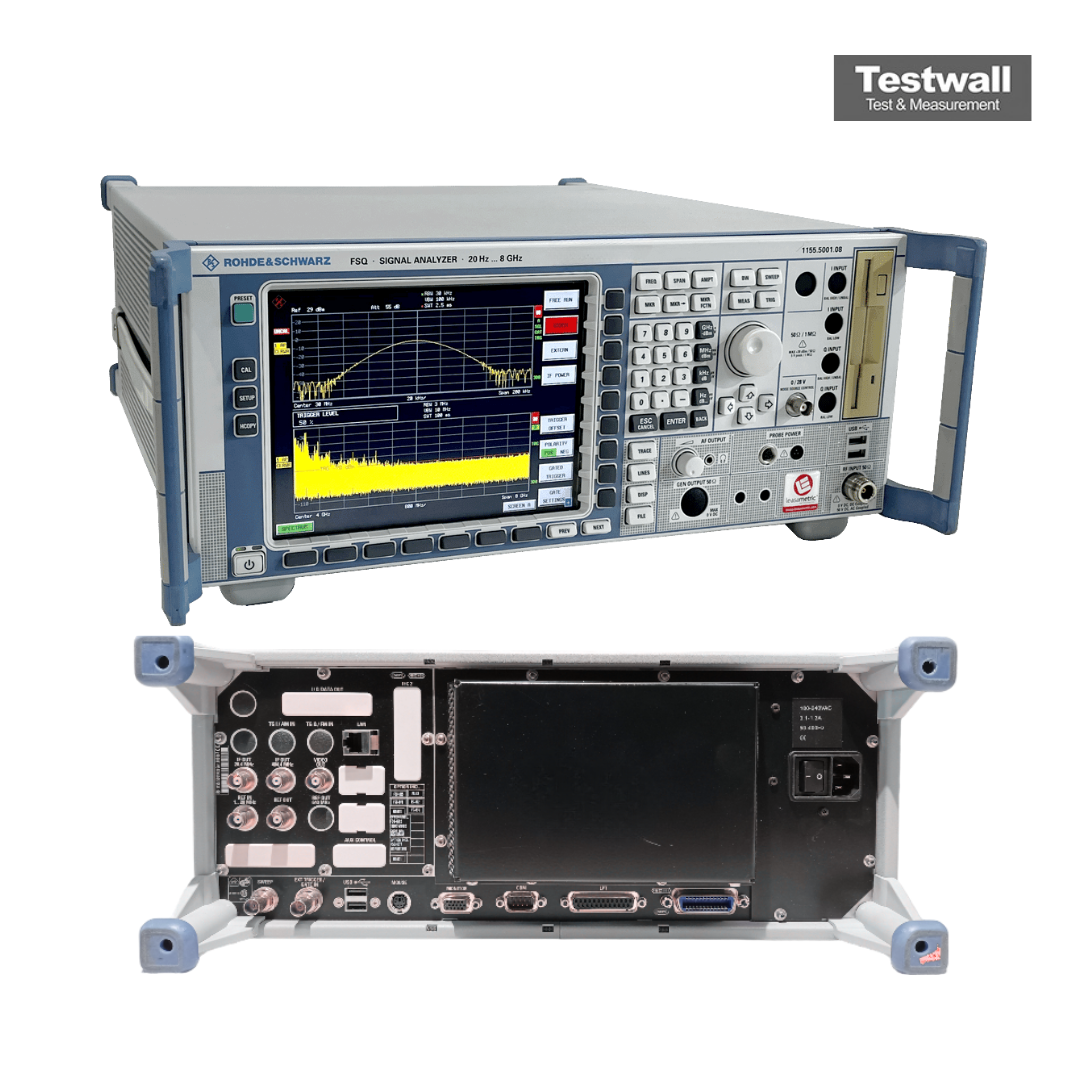

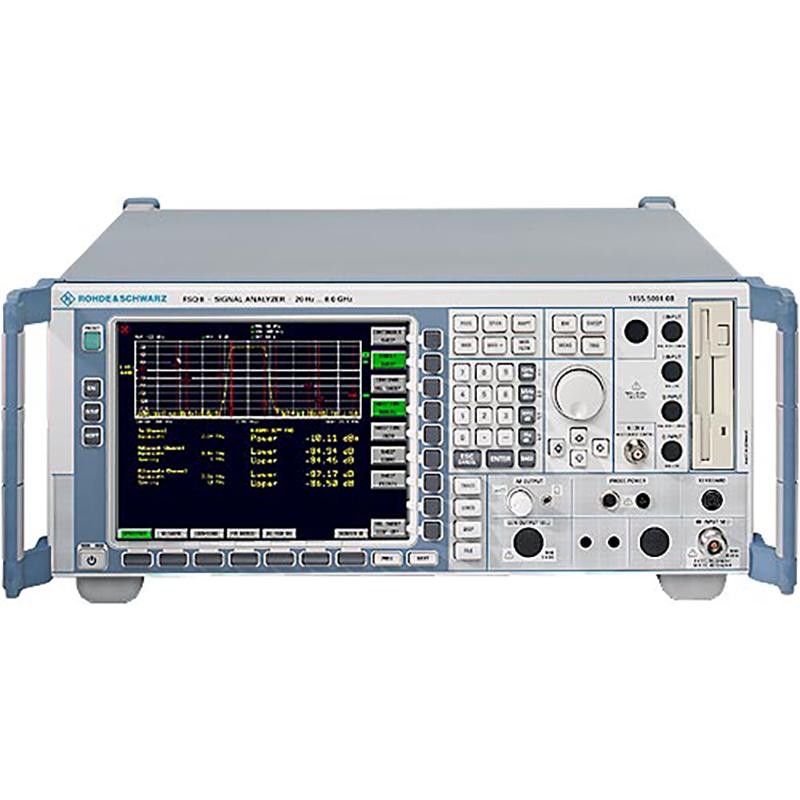

Rohde & Schwarz FSQ8
20Hz - 8GHz Spectrum Analyser
20 Hz – 8 GHz Rango de frecuencia
1 Hz – 50 MHz Ancho de banda de resolución (RBW)
1 Hz – 50 MHz Ancho de banda de video (VBW)
-155 dBm (típico) a 1 GHz Nivel de ruido promedio mostrado (DANL)
hasta 110 dB Rango dinámico
| Atributo | Valor |
|---|---|
| Rango de frecuencia | 20 Hz – 8 GHz |
| Ancho de banda de resolución (RBW) | 1 Hz – 50 MHz |
| Ancho de banda de video (VBW) | 1 Hz – 50 MHz |
| Nivel de ruido promedio mostrado (DANL) | -155 dBm (típico) a 1 GHz |
| Rango dinámico | hasta 110 dB |
| Punto de intercepción de tercer orden (TOI) | +18 dBm (típico) |
| Nivel de referencia | -130 dBm a +30 dBm |
| Exactitud de nivel | ± 0,3 dB (típico) |
| Ancho de banda de análisis en tiempo real | hasta 120 MHz |
| Impedancia de entrada | 50 Ω |
Rohde & Schwarz FSQ8 Options:
- FSQ8 - FSU-B4 - Low-Aging OXCO
- FSQ8 - FSU-B9 - Tracking Generator, 100 kHz to 3.6 GHz
- FSQ8 - FSP-B10 - External Generator Control
- FSQ8 - FSU-B12 - Attenuator for Tracking Generator R&S FSU-B9
- FSQ8 - FSQ-B18 - Removable Hard Disk
- FSQ8 - FSQ-B19 - Second Hard Disk for R&S FSQ-B18
- FSQ8 - FSU-B21 - LO/IF Ports for External Mixers
- FSQ8 - FSQ-B23 - RF Preamplifier, 3.6 GHz to 26 GHz, for R&S FSQ 26
- FSQ8 - FSU-B25 - Electronic Attenuator, 0 dB to 30 dB, and 20 dB preamplifier
- FSQ8 - FSQ-B71 - Analog Baseband Inputs
- FSQ8 - FSQ-B72 - I/Q Bandwidth Extension to 60 MHz/120 MHz
- FSQ8 - FS-K4 - Phase noise measurements (Windows software)
- FSQ8 - FS-K5 - Modulation and spectrum measurements on GSM/EDGE base station and mobile signals
- FSQ8 - FS-K7 - AM/FM/φM measurement demodulator with measurement of modulation frequency, THD, SINAD and spectrum (FFT) of the demodulated signal
- FSQ8 - FS-K8 - Bluetooth transmitter measurements
- FSQ8 - FS-K9 - Power sensor measurements (supports R&S NRP-Z11/-Z21 with R&S NRP-Z4 USB adapter)
- FSQ8 - FS-K30 - Noise figure measurements (application firmware), functions similar to R&S FS-K3, but remote-controllable
- FSQ8 - FS-K72 - Modulation and code domain power measurements to 3GPP TS 24.141 on base station signals (node B)
- FSQ8 - FS-K73 - Modulation and code domain power measurements to 3GPP TS 25.121 on mobile station signals (UE)
- FSQ8 - FS-K74 - HSDPA extension for R&S FS-K72
- FSQ8 - FS-K76 - Modulation and code domain power measurements on TD-SCDMA base station signals
- FSQ8 - FS-K77 - Modulation and code domain power measurements on TD-SCDMA mobile station signals (UE)
- FSQ8 - FS-K82 - Modulation and code domain power measurements to cdma2000/3GPP2 on base station signals (also for measurements on IS-95/cdmaOne signals)
- FSQ8 - FS-K83 - Modulation and code domain power measurements on cdma2000/1xEV-DV mobile station signals (UE)
- FSQ8 - FS-K84 - Modulation and code domain power measurements on cdma2000/1xEV-DO mobile station signals (UE)
- FSQ8 - FS-K85 - Modulation and code domain power measurements to 1xEV-DO on base station signals
- FSQ8 - FSQ-K70 - Universal vector signal analysis, FSK, MSK, BPSK, up to 256QAM, symbol rates up to 25 Msymbol/s (up to 81.6 Msymbol/s with R&S FSQ-B72)
- FSQ8 - FSQ-K91 - Modulation and spectrum measurements on WLAN signals to 802.11 a/b/g/j
| Model | FSQ8 |
|---|
El Rohde & Schwarz FSQ8 ofrece un rango de frecuencia de 20 Hz a 8 GHz, RBW de 1 Hz a 50 MHz y un ancho de banda de demodulación de hasta 120 MHz. Con un DANL de -154 dBm, permite un análisis detallado de señales y ofrece múltiples opciones de medición y radio digital.
Ideal para WLAN, GSM-MCPA, WiMAX y sistemas 3GPP, permite el análisis de tecnologías 2G, 2.5G y 3G mediante firmware opcional para GSM/EDGE, CDMA2000, HSDPA y TD-SCDMA.
Testwall puede suministrar el Rohde & Schwarz FSQ8 usado, completamente probado. Con soporte experto y entrega global, Testwall garantiza instrumentación de alto rendimiento con una fiabilidad y calidad de servicio inigualables. Póngase en contacto con nosotros directamente si necesita calibración o reparación del Rohde & Schwarz FSQ8.
