Rohde & Schwarz FSV3013
| Atributo | Valor |
|---|---|
| Rango de frecuencia | 10 Hz – 13,6 GHz |
| Nivel de ruido mostrado (DANL) | -164 dBm (típico) a 1 GHz con preamplificador activado |
| Figura de ruido | 8 dB (típico) a 1 GHz sin preamplificador |
| Rango dinámico libre de espurios (SFDR) | hasta 110 dBc (típico) |
| Ancho de banda de análisis (en tiempo real) | hasta 160 MHz |
| Resolución de ancho de banda (RBW) | 1 Hz – 10 MHz |
| Nivel de entrada máximo | +30 dBm (con atenuador de entrada) |
| Incertidumbre de nivel | < 0,4 dB (típico) a 1 GHz |
| Interfaz y conectividad | LAN (1000BASE-T), USB 3.0, GPIB (opcional), pantalla táctil de 12,1 pulgadas |
| Opciones de medición | Análisis de señales vectoriales (VSA), análisis en tiempo real, mediciones de fase de ruido, análisis de amplificadores de potencia |
Rohde & Schwarz FSV3013 Options:
- FSV3013 - FSV3-B1 - Side carry handles
- FSV3013 - FSV3-B3 - Audio demodulator
- FSV3013 - FSV3-B4 - OCXO frequency reference
- FSV3013 - FSV3-B5 - Additional interfaces (IF out, video out (2 × BNC), trigger out, aux port, aux control, GPIB)
- FSV3013 - FSV3-B6 - 10 Gbit/s LAN interface
- FSV3013 - FSV3-B10 - External generator control (LAN based)
- FSV3013 - FSV3-B11 - YIG preselector bypass
- FSV3013 - FSV3-B40 - 40 MHz analysis bandwidth
- FSV3013 - FSV3-B200 - 200 MHz analysis bandwidth
- FSV3013 - FSV3-B18 - Spare hard drive
- FSV3013 - FSV3-B20 - Removable hard drive (at front panel)
- FSV3013 - FSV3-B24 - RF preamplifier (10 MHz to 13.6 GHz)
- FSV3013 - FSV3-B25 - Electronic attenuator, 1 dB steps
- FSV3013 - FSV3-B33 - USB mass memory write protection
- FSV3013 - FSV3-B114 - Enhanced computing power
- FSV3013 - FSV3-B28V - Noise source control via BNC
- FSV3013 - FSV3-K703 - 1 GHz reference
- FSV3013 - FSV3-K6 - Pulse measurements
- FSV3013 - FSV3-K7 - Analog modulation analysis for AM/FM/φM
- FSV3013 - FSV3-K9 - Power sensor support
- FSV3013 - FSV3-K10 - GSM/EDGE/EDGE Evolution/VAMOS measurements
- FSV3013 - FSV3-K18 - Amplifier measurements
- FSV3013 - FSV3-K18D - Direct DPD measurements (requires FSV3-K18)
- FSV3013 - FSV3-K18F - Frequency response and group delay measurements (requires FSV3-K18)
- FSV3013 - FSV3-K30 - Noise figure measurements
- FSV3013 - FSV3-K33 - Security write protection of solid state drive
- FSV3013 - FSV3-K40 - Phase noise measurements
- FSV3013 - FSV3-K70 - Vector signal analysis
- FSV3013 - FSV3-K70M - Multi-modulation analysis (requires FSV3-K70)
- FSV3013 - FSV3-K70P - BER PRBS measurements (requires FSV3-K70)
- FSV3013 - FSV3-K72 - 3GPP FDD (WCDMA) BS measurements (incl. HSDPA and HSDPA+)
- FSV3013 - FSV3-K73 - 3GPP FDD (WCDMA) MS measurements (incl. HSUPA and HSUPA+)
- FSV3013 - FSV3-K91 - WLAN 802.11a/b/g measurements
- FSV3013 - FSV3-K91N - WLAN 802.11n measurements (requires FSV3-K91)
- FSV3013 - FSV3-K91AC - WLAN 802.11ac measurements
- FSV3013 - FSV3-K91AX - WLAN 802.11ax measurements
- FSV3013 - FSV3-K91P - WLAN 802.11p measurements
- FSV3013 - FSV3-K100 - EUTRA/LTE FDD BS measurements
- FSV3013 - FSV3-K101 - EUTRA/LTE FDD UE measurements
- FSV3013 - FSV3-K102 - EUTRA/LTE BS MIMO measurements (requires FSV3-K100 or FSV3-K104)
- FSV3013 - FSV3-K103 - EUTRA/LTE UL advanced UL measurements (requires FSV3-K101 or FSV3-K105)
- FSV3013 - FSV3-K104 - EUTRA/LTE TDD BS measurements
- FSV3013 - FSV3-K105 - EUTRA/LTE TDD uplink measurements
- FSV3013 - FSV3-K106 - EUTRA/LTE NB-IoT downlink measurements
- FSV3013 - FSV3-K144 - 3GPP 5G-NR DL measurements
- FSV3013 - FSV3-K145 - 3GPP 5G-NR UL measurements
- FSV3013 - FSV3-K544 - User defined frequency correction by SnP file
| Model | FSV3013 |
|---|

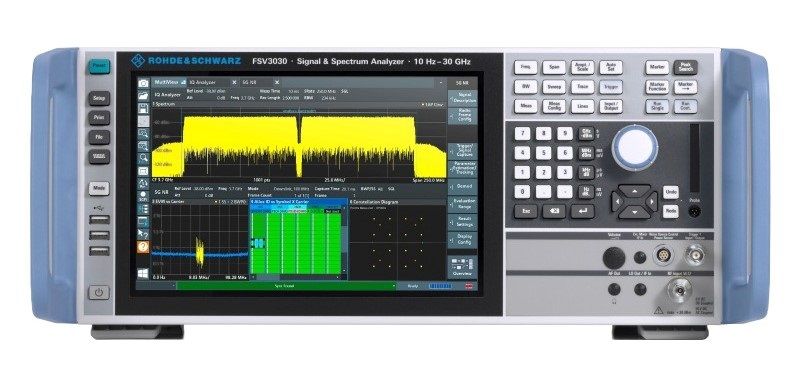

ROHDE & SCHWARZ FSV3013 Signal and Spectrum Analyzer
The Rohde & Schwarz FSV3013 Signal and Spectrum Analyzer features functions that make complex measurements fast and easy. Setting up RF parameters with touchscreen gestures is as easy as using your smartphone. The auto set feature automatically sets the most important parameters such as frequency, level and gating. The SCPI recorder, which translates manual operation into remote control command scripts, is the dream of any test system software engineer. The Rohde & Schwarz FSV3013 has been designed for high-speed measurements. Production lines benefit from fast measurement times for spectral measurements, highspeed signal demodulation and rapid switching between diffe measurement modes.
With 200 MHz of analysis bandwidth, the Rohde & Schwarz FSV3013 is ideal for analyzing wireless communications signals in R&D, system testing, verification and production. It allows capturing of two neighboring 5G NR carriers at once. This saves measurement time and makes it possible to analyze interactions and timing between the carriers. With the optional YIG bypass, the 200 MHz bandwidth is available up to the maximum frequency. The FSV3013 features an excellent dynamic range, which is beneficial not only for spectral measurements but also for analyzing and demodulating signals with a high crest factor, such as OFDM signals or signals with a high modulation order. Excellent EVM values better than 1% are possible with 160 MHz wide WLAN signals and also for 5G NR signals.
Specifications for the ROHDE & SCHWARZ FSV3013 Signal and Spectrum Analyzer Include:
| Frequency Range | 10 Hz to 13.6 GHz |
| Bandwidth | 28 MHz (Up to 200 MHz) |
| Displayed average noise level (DANL) | €“151 dBm (typ.) |
| Total measurement uncertainty | 0.29 dB |
