Rohde & Schwarz FSV3044
| Atributo | Valor |
|---|---|
| Rango de frecuencia | 10 Hz – 44 GHz |
| Nivel de ruido mostrado promedio (DANL) | -170 dBm/Hz (típico, con preamplificador activado) |
| Rango dinámico | hasta 110 dB |
| Ancho de banda de resolución (RBW) | 1 Hz – 10 MHz |
| Nivel de entrada máximo | +30 dBm |
| Fase de ruido | -115 dBc/Hz a 10 kHz de separación (típico, a 1 GHz) |
| Distorsión armónica de segundo orden (TOI) | +20 dBm (típico) |
| Preamplificador interno | Integrado, hasta 44 GHz |
| Interfaz y conectividad | LAN (1 Gbit), USB, HDMI, conector de entrada RF tipo N (hasta 26,5 GHz) y 2,92 mm (hasta 44 GHz) |
| Pantalla | Pantalla táctil a color de 12,1 pulgadas (1280 x 800 píxeles) |
Rohde & Schwarz FSV3044 Options:
- FSV3044 - B1 - Side carry handles
- FSV3044 - B3 - Audio demodulator
- FSV3044 - B4 - OCXO frequency reference
- FSV3044 - B5 - Additional interfaces (IF out, video out (2 × BNC), trigger out, aux port, aux control, GPIB)
- FSV3044 - B6 - 10 Gbit/s LAN interface
- FSV3044 - B10 - External generator control (LAN based, user-retrofittable)
- FSV3044 - B11 - YIG preselector bypass (user-retrofittable)
- FSV3044 - B40 - 40 MHz analysis bandwidth (user-retrofittable)
- FSV3044 - B200 - 200 MHz analysis bandwidth (requires B11 for frequencies > 7.5 GHz)
- FSV3044 - B18 - Spare hard drive (requires B20)
- FSV3044 - B20 - Removable hard drive (at front panel)
- FSV3044 - B24 - RF preamplifier (10 MHz to 43.5 GHz, 30 dB gain)
- FSV3044 - B25 - Electronic attenuator, 1 dB steps (user-retrofittable)
- FSV3044 - B33 - USB mass memory write protection
- FSV3044 - B114 - Enhanced computing power
- FSV3044 - B28V - Noise source control via BNC
- FSV3044 - K703 - 1 GHz reference (user-retrofittable)
- FSV3044 - K6 - Pulse measurements
- FSV3044 - K7 - Analog modulation analysis for AM/FM/φM
- FSV3044 - K9 - Power sensor support
- FSV3044 - K10 - GSM/EDGE/EDGE Evolution/VAMOS measurements
- FSV3044 - K18 - Amplifier measurements
- FSV3044 - K18D - Direct DPD measurements (requires K18)
- FSV3044 - K18F - Frequency response and group delay measurements (requires K18)
- FSV3044 - K30 - Noise figure measurements
- FSV3044 - K33 - Security write protection of solid state drive
- FSV3044 - K40 - Phase noise measurements
- FSV3044 - K70 - Vector signal analysis
- FSV3044 - K70M - Multi-modulation analysis (requires K70)
- FSV3044 - K70P - BER PRBS measurements (requires K70)
- FSV3044 - K72 - 3GPP FDD (WCDMA) BS measurements (incl. HSDPA and HSDPA+)
- FSV3044 - K73 - 3GPP FDD (WCDMA) MS measurements (incl. HSUPA and HSUPA+)
- FSV3044 - K91 - WLAN 802.11a/b/g measurements
- FSV3044 - K91N - WLAN 802.11n measurements (requires K91)
- FSV3044 - K91AC - WLAN 802.11ac measurements
- FSV3044 - K91AX - WLAN 802.11ax measurements
- FSV3044 - K91P - WLAN 802.11p measurements
- FSV3044 - K100 - EUTRA/LTE FDD BS measurements
- FSV3044 - K101 - EUTRA/LTE FDD UE measurements
- FSV3044 - K102 - EUTRA/LTE BS MIMO measurements (requires K100 or K104)
- FSV3044 - K103 - EUTRA/LTE UL advanced UL measurements (requires K101 or K105)
- FSV3044 - K104 - EUTRA/LTE TDD BS measurements
- FSV3044 - K105 - EUTRA/LTE TDD uplink measurements
- FSV3044 - K106 - EUTRA/LTE NB-IoT downlink measurements
- FSV3044 - K144 - 3GPP 5G-NR DL measurements
- FSV3044 - K145 - 3GPP 5G-NR UL measurements
- FSV3044 - K544 - User defined frequency correction by SnP file
| Model | FSV3044 |
|---|

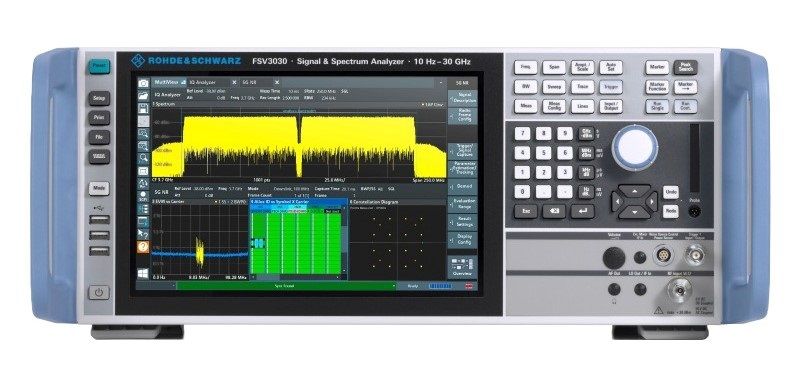

ROHDE & SCHWARZ FSV3044 Signal and Spectrum Analyzer
The Rohde & Schwarz FSV3044 Signal and Spectrum Analyzer features functions that make complex measurements fast and easy. Setting up RF parameters with touchscreen gestures is as easy as using your smartphone. The auto set feature automatically sets the most important parameters such as frequency, level and gating. The SCPI recorder, which translates manual operation into remote control command scripts, is the dream of any test system software engineer. The Rohde & Schwarz FSV3044 has been designed for high-speed measurements. Production lines benefit from fast measurement times for spectral measurements, highspeed signal demodulation and rapid switching between diffe measurement modes.
With 200 MHz of analysis bandwidth, the Rohde & Schwarz FSV3044 is ideal for analyzing wireless communications signals in R&D, system testing, verification and production. It allows capturing of two neighboring 5G NR carriers at once. This saves measurement time and makes it possible to analyze interactions and timing between the carriers. With the optional YIG bypass, the 200 MHz bandwidth is available up to the maximum frequency. The FSV3044 features an excellent dynamic range, which is beneficial not only for spectral measurements but also for analyzing and demodulating signals with a high crest factor, such as OFDM signals or signals with a high modulation order. Excellent EVM values better than 1% are possible with 160 MHz wide WLAN signals and also for 5G NR signals.
Specifications for the ROHDE & SCHWARZ FSV3044 Signal and Spectrum Analyzer Include:
| Frequency Range | 10 Hz to 44 GHz |
| Bandwidth | 28 MHz (Up to 200 MHz) |
| Displayed average noise level (DANL) | €“151 dBm (typ.) |
| Total measurement uncertainty | 0.29 dB |
