Rohde & Schwarz FSVA3044
| Atributo | Valor |
|---|---|
| Rango de frecuencia | 2 Hz – 44 GHz |
| Ancho de banda de análisis | hasta 400 MHz |
| Nivel de ruido mostrado promedio (DANL) | -172 dBm/Hz (típico, con preamplificador) |
| Rango dinámico libre de espurios (SFDR) | hasta 110 dBc |
| Fase de ruido | -116 dBc/Hz a 10 kHz de separación (típico) |
| Rango de nivel de entrada | +30 dBm máximo |
| Incertidumbre de nivel | < 0,4 dB (típico) |
| Interfaz de pantalla | Pantalla táctil capacitiva de 12,1 pulgadas |
| Conectividad | USB, LAN (1 Gbit), HDMI, GPIO |
| Opciones de medición | Análisis de señal vectorial (VSA), análisis de fase de ruido, análisis de transitorios, demodulación analógica y digital |
Rohde & Schwarz FSVA3044 Options:
- FSVA3044 - FSV3-B1 - Side carry handles
- FSVA3044 - FSV3-B3 - Audio demodulator
- FSVA3044 - FSV3-B4 - OCXO frequency reference
- FSVA3044 - FSV3-B5 - Additional interfaces (IF out, video out (2 × BNC), trigger out, aux port, aux control, GPIB)
- FSVA3044 - FSV3-B6 - 10 Gbit/s LAN interface (for fast remote control and fast I/Q data transfer)
- FSVA3044 - FSV3-B10 - External generator control (LAN based, user-retrofittable (license key), R&S FSV3-B5 is recommended for high sweep speed)
- FSVA3044 - FSV3-B11 - YIG preselector bypass (user-retrofittable (license key))
- FSVA3044 - FSV3-B40 - 40 MHz analysis bandwidth (user-retrofittable (license key))
- FSVA3044 - FSV3-B200 - 200 MHz analysis bandwidth (R&S FSV3-B11 option is required for frequencies > 7.5 GHz)
- FSVA3044 - FSV3-B400 - 400 MHz analysis bandwidth (R&S FSV3-B11 option is required for frequencies > 7.5 GHz)
- FSVA3044 - FSV3-U400 - Upgrade from 200 MHz to 400 MHz analysis bandwidth (R&S FSV3-B200 option is required, user-retrofittable (license key))
- FSVA3044 - FSV3-B18 - Spare hard drive (requires R&S FSV3-B20, user-retrofittable)
- FSVA3044 - FSV3-B20 - Removable hard drive (at front panel)
- FSVA3044 - FSV3-B24 - RF preamplifier for R&S FSVA3044
- FSVA3044 - FSV3-B25 - Electronic attenuator, 1 dB steps (user-retrofittable (license key))
- FSVA3044 - FSV3-B33 - USB mass memory write protection
- FSVA3044 - FSV3-B114 - Enhanced computing power
- FSVA3044 - FSV3-B28V - Noise source control via BNC
- FSVA3044 - FSV3-K703 - 1 GHz reference (user-retrofittable (license key))
- FSVA3044 - FSV3-K6 - Pulse measurements
- FSVA3044 - FSV3-K7 - Analog modulation analysis for AM/FM/φM
- FSVA3044 - FSV3-K9 - Power sensor support
- FSVA3044 - FSV3-K10 - GSM/EDGE/EDGE evolution/VAMOS measurements
- FSVA3044 - FSV3-K18 - Amplifier measurements
- FSVA3044 - FSV3-K18D - Direct DPD measurements (R&S FSV3-K18 option required)
- FSVA3044 - FSV3-K18F - Frequency response and group delay measurements (R&S FSV3-K18 option required)
- FSVA3044 - FSV3-K30 - Noise figure measurements
- FSVA3044 - FSV3-K33 - Security write protection of solid state drive
- FSVA3044 - FSV3-K40 - Phase noise measurements
- FSVA3044 - FSV3-K70 - Vector signal analysis
- FSVA3044 - FSV3-K70M - Multi-modulation analysis (R&S FSV3-K70 option required)
- FSVA3044 - FSV3-K70P - BER PRBS measurements (R&S FSV3-K70 option required)
- FSVA3044 - FSV3-K72 - 3GPP FDD (WCDMA) BS measurements (incl. HSDPA and HSDPA+)
- FSVA3044 - FSV3-K73 - 3GPP FDD (WCDMA) MS measurements (incl. HSUPA and HSUPA+)
- FSVA3044 - FSV3-K91 - WLAN 802.11a/b/g measurements
- FSVA3044 - FSV3-K91N - WLAN 802.11n measurements (R&S FSV3-K91 option required)
- FSVA3044 - FSV3-K91AC - WLAN 802.11ac measurements
- FSVA3044 - FSV3-K91AX - WLAN 802.11ax measurements
- FSVA3044 - FSV3-K91P - WLAN 802.11p measurements
- FSVA3044 - FSV3-K100 - EUTRA/LTE FDD BS measurements
- FSVA3044 - FSV3-K101 - EUTRA/LTE FDD UE measurements
- FSVA3044 - FSV3-K102 - EUTRA/LTE BS MIMO measurements (R&S FSV3-K100 or R&S FSV3-K104 option required)
- FSVA3044 - FSV3-K103 - EUTRA/LTE UL advanced UL measurements (R&S FSV3-K101 or R&S FSV3-K105 option required)
- FSVA3044 - FSV3-K104 - EUTRA/LTE TDD BS measurements
- FSVA3044 - FSV3-K105 - EUTRA/LTE TDD uplink measurements
- FSVA3044 - FSV3-K106 - EUTRA/LTE NB-IoT downlink measurements
- FSVA3044 - FSV3-K144 - 3GPP 5G-NR DL measurements
- FSVA3044 - FSV3-K145 - 3GPP 5G-NR UL measurements
- FSVA3044 - FSV3-K544 - User defined frequency correction by SnP file
| Model | FSVA3044 |
|---|

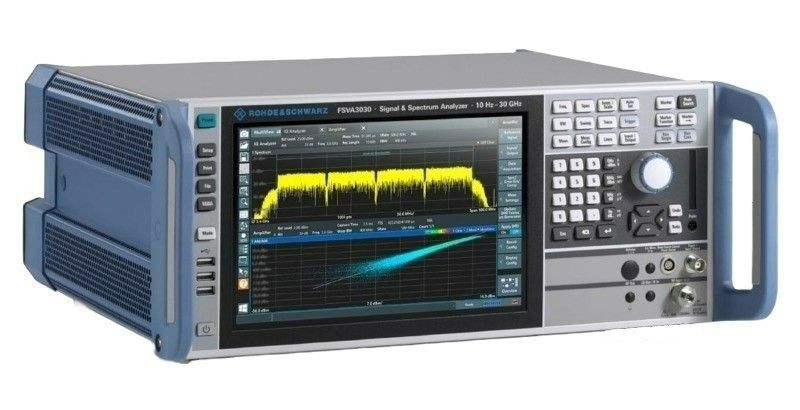

ROHDE & SCHWARZ FSVA3044 Signal and Spectrum Analyzer
The Rohde & Schwarz FSVA3044 delivers a performance level that until recently was reserved for high-end instruments. It is equally suitable for analyzing frequency agile signals and wideband signals as for linearizing power amplifiers. It supports all modern cellular and wireless standards; its frequency ranges and bandwidth options are a perfect match for 5G NR. It provides high throughput and yield in the production of cellular base stations and components and is equally suitable for development and verification labs. The FSVA3044 features functions and wizards, which makes complex user measurement scenarios fast and easy.
With an analysis bandwidth of up to 400 MHz, an outstanding phase noise of €“120 dBc (1 Hz) at 10 kHz offset and a high dynamic range: the Rohde & Schwarz FSVA3044 signal and spectrum analyzer has everything needed to keep up with demanding measurement applications. Setting up RF parameters with touchscreen gestures is easy. The auto set feature automatically sets the most important parameters such as frequency, level and gating. The SCPI recorder, which translates manual operation into remote control command scripts, is the dream of any test system software engineer. And event based actions support you when debugging your DUT by capturing and documenting rare events. With its high measurement speed and easy usability, it is the right instrument for demanding signal analysis tasks both in the lab and on a production line.
Specifications for the ROHDE & SCHWARZ FSVA3044 Signal and Spectrum Analyzer Include:
| Frequency Range | 10 Hz to 44 GHz |
| I/Q demodulation bandwidth | 28 MHz std (up to 400 MHz) |
| Channel Filter | 100 Hz to 5 MHz |
| Video Filter | 1 Hz to 10 MHz |
