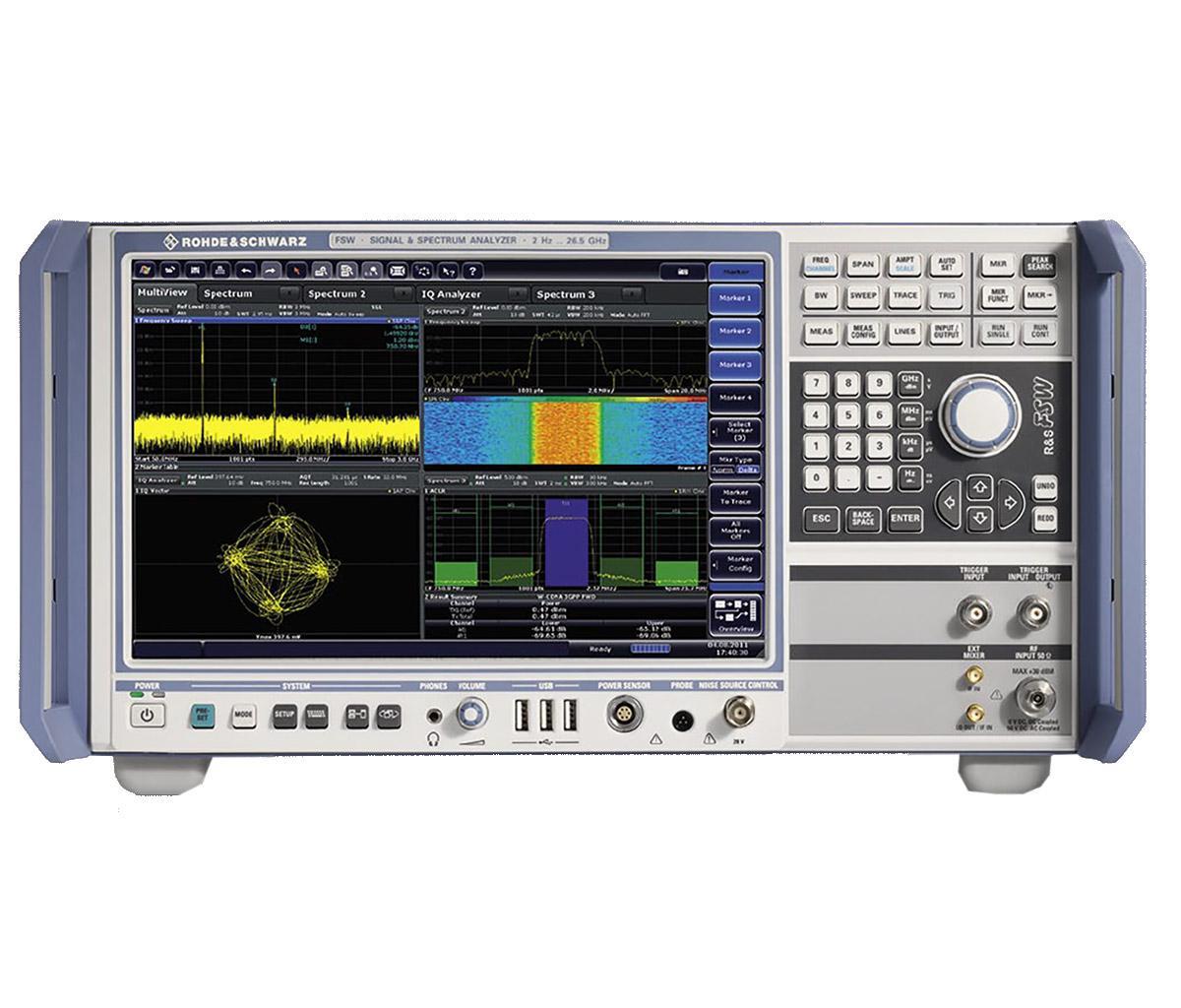

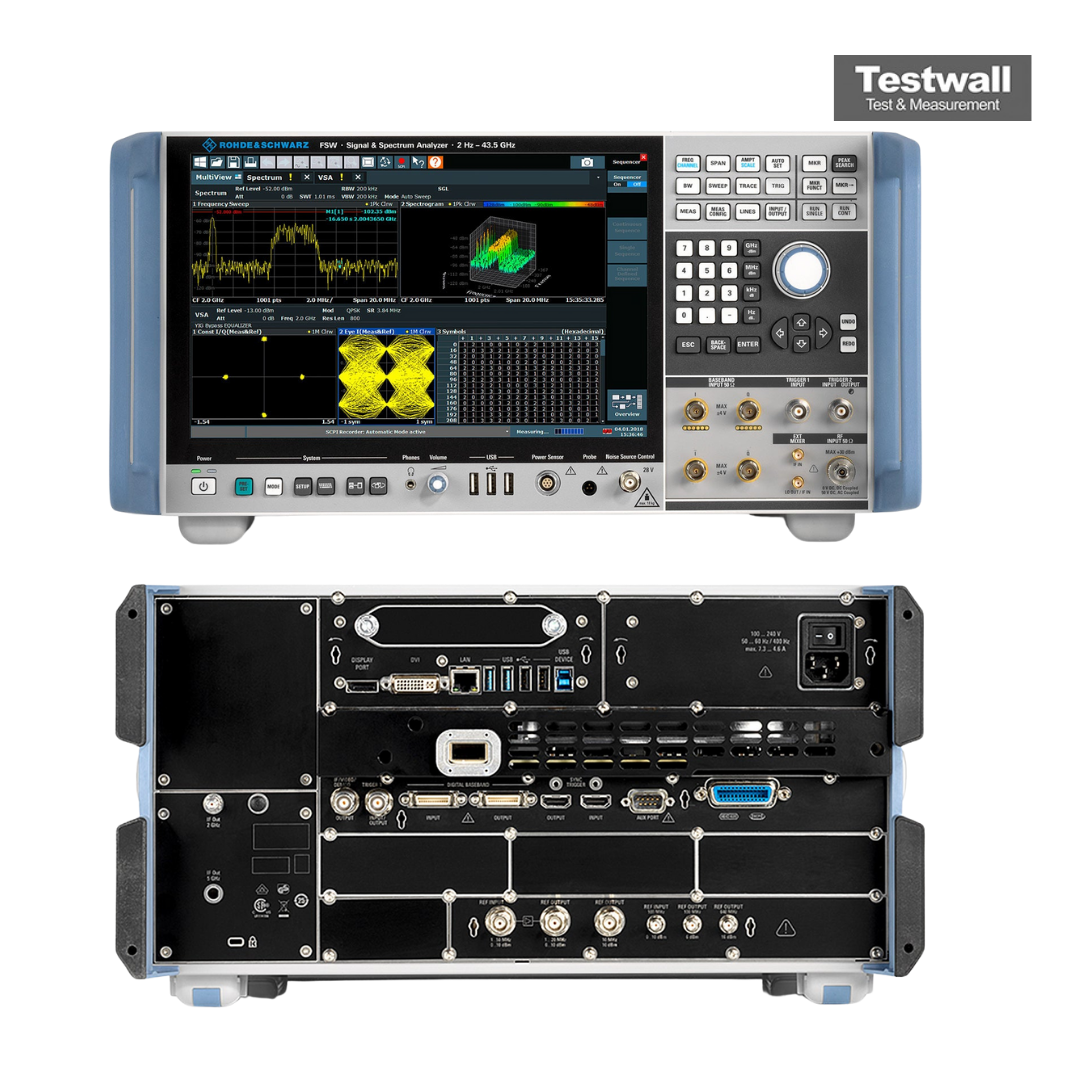

Rohde & Schwarz FSW8 8 GHz Signal Analyzer, Type N (f)
8 GHz Signal Analyzer
2 Hz – 8 GHz Rango de frecuencia
Type N (hembra) Tipo de conector de entrada
hasta 160 MHz Ancho de banda de análisis
-174 dBm/Hz (típico) Nivel de ruido promedio mostrado (DANL)
hasta 110 dB Rango dinámico
| Atributo | Valor |
|---|---|
| Rango de frecuencia | 2 Hz – 8 GHz |
| Tipo de conector de entrada | Type N (hembra) |
| Ancho de banda de análisis | hasta 160 MHz |
| Nivel de ruido promedio mostrado (DANL) | -174 dBm/Hz (típico) |
| Rango dinámico | hasta 110 dB |
| Nivel máximo de entrada | +30 dBm |
| Exactitud de nivel | ±0,3 dB (típico) |
| Resolución de ancho de banda (RBW) | 1 Hz – 50 MHz |
| Pantalla | Pantalla táctil capacitiva de 12,1 pulgadas |
| Interfaz de comunicación | USB, LAN (Ethernet), GPIB (opcional) |
| Model | FSW8 |
|---|
The Rohde & Schwarz FSW8 is a Signal and Spectrum analyzer. The R&S FSW8 comes with a frequency range of 2 Hz to 26.5 GHz, low phase noise of -153 dBm to 30 dBm, Resolution bandwidth 1 Hz to 10 MHz. The high-performance R&S FSW8 signal and spectrum analyzer was developed to meet demanding customer requirements. Offering low phase noise, wide analysis bandwidth and straightforward and intuitive operation, the analyzer makes measurements fast and easy.
Here is the extended features list of the Rohde & Schwarz FSW8:
- Frequency range from 2 Hz to 8 GHz/13.6 GHz/26.5 GHz
- Low phase noise of ?137 dBc (1 Hz) at 10 kHz offset (1 GHz carrier)
- ?88 dB dynamic range (with noise cancellation) for WCDMA ACLR measurements
- Up to 160 MHz analysis bandwidth
- 0.4 dB total measurement uncertainty up to 8 GHz
- High-resolution 12.1%22 (31 cm) touchscreen for convenient operation
- Multiple measurement applications can be run and displayed in parallel
If you are looking for a new or well-maintained used Rhode & Schwarz - FSW8 Spectrum Analyzer for rent, contact us or request a quote today.
