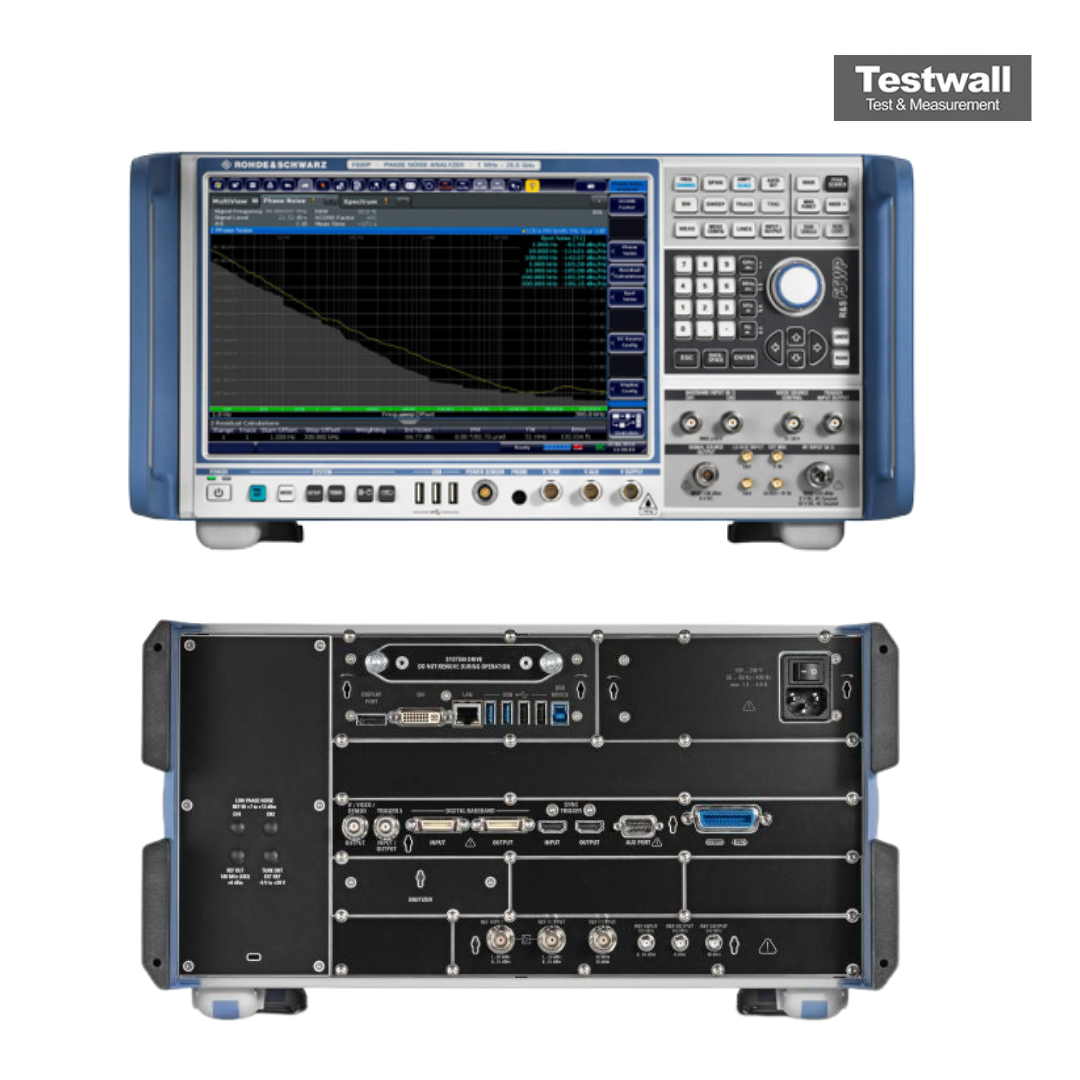

Rohde & Schwarz FSWP8
Analyseur de bruit de phase 8 GHz et testeur VCO, type N (f)
1 MHz – 8 GHz Rango de frecuencia
-104 dBc/Hz a 10 kHz de desplazamiento (portadora de 1 GHz) Rango de ruido de fase
-170 dBc/Hz (típico) Nivel de ruido de piso (Noise Floor)
Hasta 75 dB Rango dinámico
50 Ω Impedancia de entrada
| Atributo | Valor |
|---|---|
| Rango de frecuencia | 1 MHz – 8 GHz |
| Rango de ruido de fase | -104 dBc/Hz a 10 kHz de desplazamiento (portadora de 1 GHz) |
| Nivel de ruido de piso (Noise Floor) | -170 dBc/Hz (típico) |
| Rango dinámico | Hasta 75 dB |
| Impedancia de entrada | 50 Ω |
| Nivel máximo de entrada | +30 dBm (1 W) |
| Modos de medición | Ruido de fase, análisis de señal, análisis espectral, medición de ruido de amplificadores |
| Pantalla | Pantalla táctil a color de 12,1 pulgadas |
| Interfaces de conectividad | USB, LAN (Ethernet), GPIB (opcional) |
| Fuente de referencia interna | Oscilador de referencia interno de 10 MHz con salida de referencia externa |
Rohde & Schwarz FSWP8 Options:
- FSWP8 - B60 - Cross-Correlation, 8 GHz
- FSWP8 - B61 - Cross-Correlation (low phase noise), 8 GHz (includes R&S FSWP-B4)
- FSWP8 - B64 - Additive Phase Noise Measurements (frequency range 10 MHz to 8 GHz)
- FSWP8 - B4 - High Stability OCXO
- FSWP8 - B1 - Spectrum Analyzer, 10 Hz to 8 GHz
- FSWP8 - B10 - External Generator Control
- FSWP8 - B8 - Resolution Bandwidth > 10 MHz
- FSWP8 - B13 - Highpass Filter for Harmonic Measurements (requires R&S FSWP-B1 option)
- FSWP8 - B24 - RF Preamplifier, 100 kHz to 8 GHz (requires R&S FSWP-B1 option)
- FSWP8 - B80 - 80 MHz Analysis Bandwidth (requires R&S FSWP-B1 option)
- FSWP8 - B320 - 320 MHz Analysis Bandwidth (requires R&S FSWP-B1 option)
- FSWP8 - B18 - Spare Solid State Drive (removable hard drive)
- FSWP8 - K4 - Pulsed Phase Noise Measurements
- FSWP8 - K6 - Pulse Measurement Application (requires R&S FSWP-B1 option)
- FSWP8 - K6S - Time Sidelobe Measurements (requires R&S FSWP-K6 option)
- FSWP8 - K7 - Analog Modulation Analysis for AM/FM/φM (requires R&S FSWP-B1 option)
- FSWP8 - K30 - Noise Figure Measurements (requires R&S FSWP-B1 option)
- FSWP8 - K33 - Security Write Protection of solid state drive
- FSWP8 - K70 - Vector Signal Analysis (requires R&S FSWP-B1 option)
| Model | FSWP8 |
|---|
The Rohde & Schwarz FSWP8 is a Phase Noise Analyzer and VCO Tester that offers a frequency range of up to 8 GHz. The FSWP8 comes with the brand's cross-correlation technology and low-noise internal sources in order to offer high sensitivity for phase noise measurements.
Key facts of the R&S FSWP8:
- Frequency range from 1 MHz to?8 GHz
- High sensitivity for phase noise measurements thanks to cross-correlation and extremely low-noise internal reference sources
- typ. -172 dBc (1 Hz) at 1 GHz carrier frequency and 10 kHz offset
- typ. -158 dBc (1 Hz) at 10 GHz carrier frequency and 10 kHz offset
- Simultaneous measurement of amplitude noise and phase noise
- Measurement of phase noise on pulsed sources at the push of a button
- Internal source for measuring additive phase noise, including on pulsed signals
- Signal and spectrum analyzer and phase noise analyzer in a single box
- High-end signal and spectrum analyzer, 10 Hz to?8 GHz
- Wide dynamic range thanks to low displayed average noise level (DANL) of -156 dBm (1 Hz) (without noise cancellation) and high TOI of typ. 25 dBm
- 320? MHz signal analysis bandwidth
- Total measurement uncertainty: < 0.2 dB up to 3.6 GHz,< 0.3 dB up to 8 GHz
- Touchscreen operation
- Large 12.1%22 display for simultaneous viewing of multiple measurement windows
- Various measurement applications can be run and displayed in parallel
- High measurement speed
- Low-noise internal DC sources for VCO characterization
- Automatic VCO characterization
- Analysis of up to 8 GHz wide frequency hops (transients)
