Rohde & Schwarz HE300
| Atributo | Valor |
|---|---|
| Rango de frecuencia | 20 MHz – 200 MHz |
| Tipo de antena | Antena activa de bucle para campos magnéticos |
| Factor de antena | 0 dB (típico) |
| Impedancia | 50 Ω |
| Nivel máximo de entrada | 100 dBµV |
| Alimentación | Alimentación por el cable coaxial (bias tee), 12 V DC |
| Consumo de corriente | Máx. 150 mA |
| Conector de salida | BNC hembra |
| Temperatura de funcionamiento | 0 °C a +50 °C |
| Dimensiones (diámetro del bucle) | Aprox. 300 mm |
Rohde & Schwarz HE300 Options:
- HE300 - .02 - Active Directional Antenna, including analog compass
- HE300 - .03 - Active Directional Antenna, including GPS/electronic compass
- HE300UK - 4080.9011.02 - GPS/Electronic Compass Upgrade Kit
- HE300HF - 4067.6806.02 - HF Option (9 kHz to 20 MHz)
| Model | HE300 |
|---|

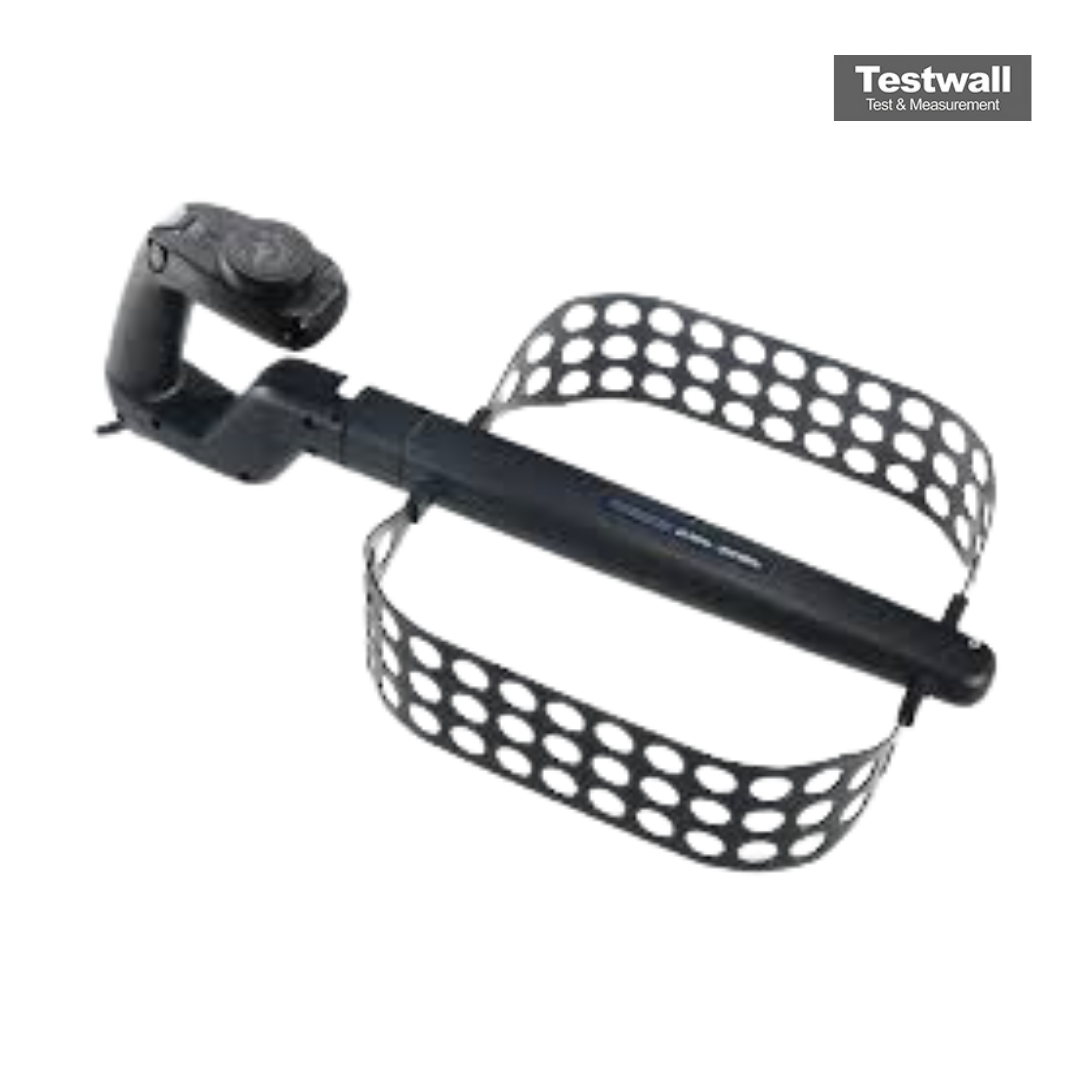

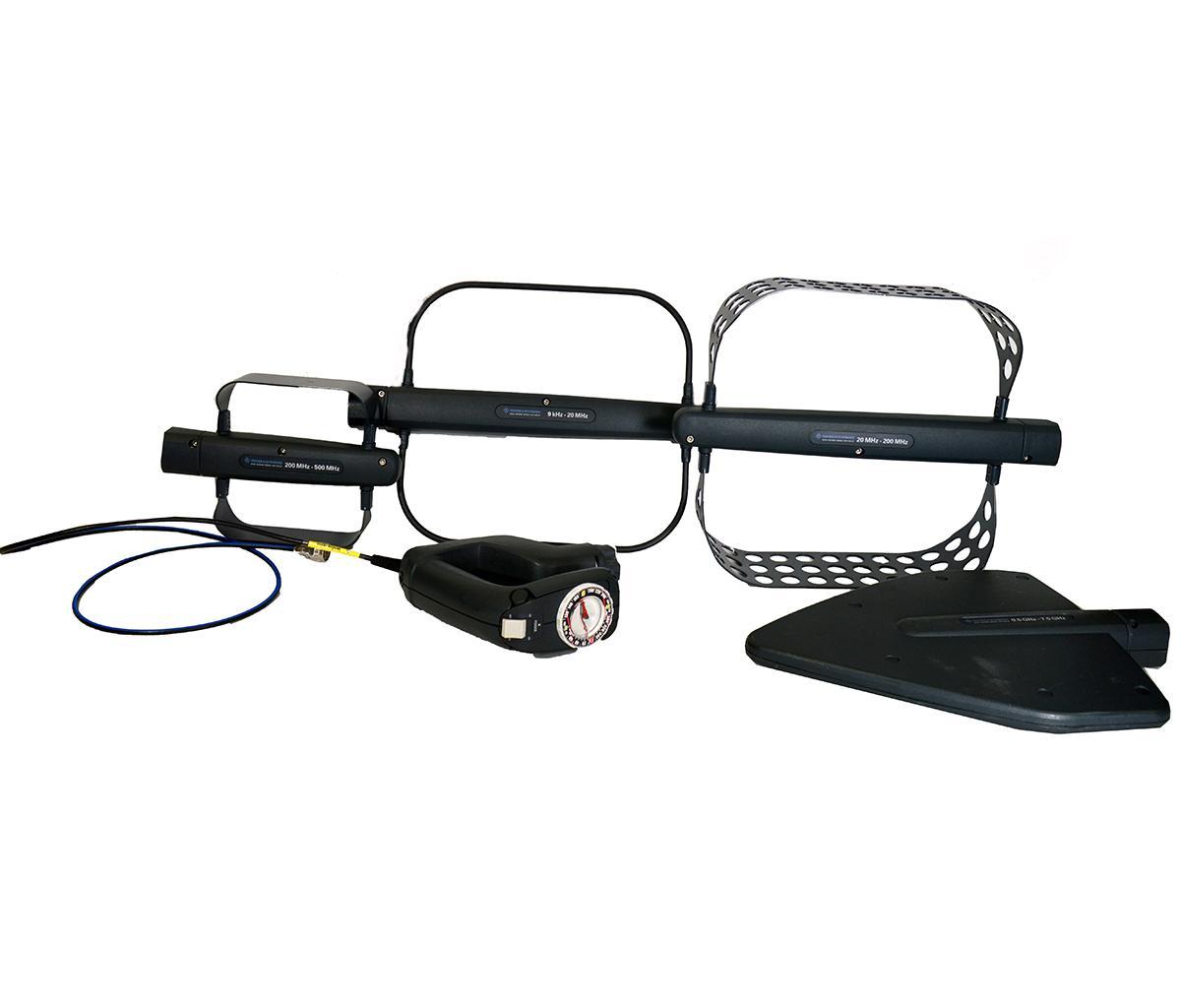

The Rohde & Schwarz HE300 is an active directional antenna. It can be used to locate transmitters and interference sources, if combined with portable receivers such as the Rohde & Schwarz PR100. The HE300 comes with 3 exchangeable sub-range antenna modules, which cover a frequency range of 20 MHz to 7.5 GHz, with an additional module HE300HF to handle frequencies from 9 kHz to 20 MHz.
When the HE300 is operating under the Active Mode, a built-in, low-noise wideband amplifier can be activated to enhance system sensitivity and the same can be bypassed in Passive Mode. The Rohde & Schwarz HE300 is both compact and lightweight, which makes it well-suited for easy handling and operation in field conditions, and has an N type male connector.
Rohde & Schwarz HE300 Usage: handheld or mounted on tripod
Some of the key features of the Rohde & Schwarz HE300 include:
- Horizontal and vertical polarization
- Unambiguous direction finding
- Direction finding by orienting antenna towards maximum signal strength
- %22Passive%22 and %22Active%22 mode create wide dynamic range
- 3 exchangeable antenna modules
Get the Rohde & Schwarz HE300 active directional antenna for rent or for purchase from Testwall with technical support. Upon purchase of this equipment, we also offer a 12 months part and labor warranty. All products come calibrated to stringent standards in our 50 GHz ANSI/NCSL Z540-1 compliant laboratory by an experienced team of metrologists and technicians. Request a quote today.
