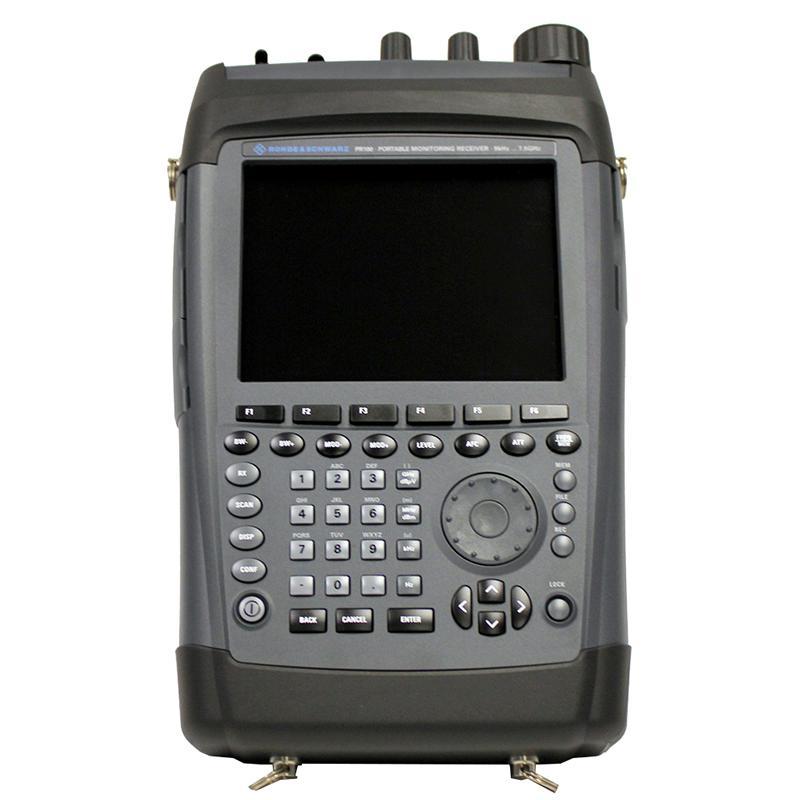

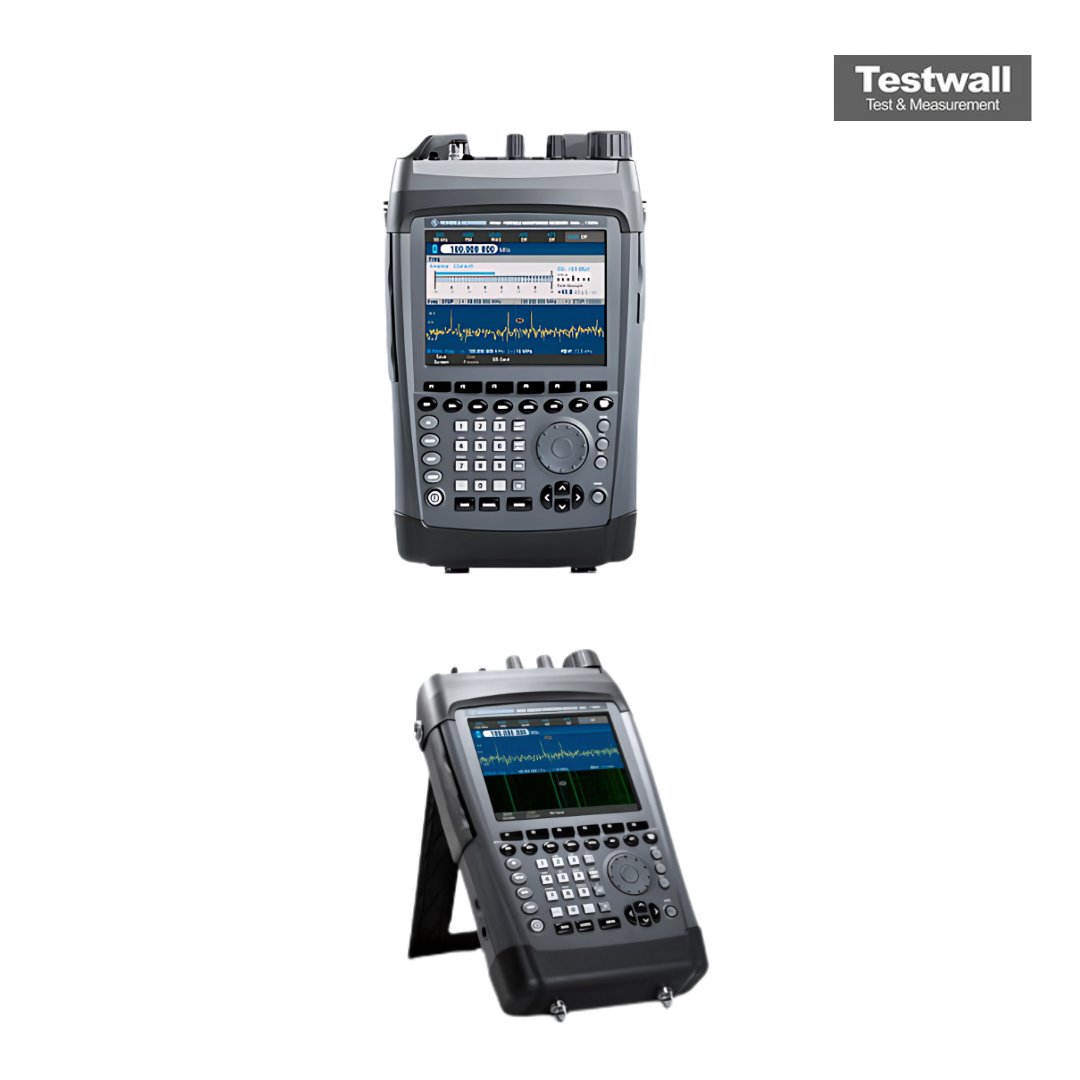

Rohde & Schwarz PR100 Portable Receiver 9 kHz-7.5 GHz, 10 MHz Real Time, Type N (f)
Portable Receiver 9 kHz-7.5 GHz, 10 MHz Real Time
9 kHz - 7,5 GHz Rango de Frecuencia
10 MHz Ancho de Banda en Tiempo Real
Type N (hembra) Tipo de Conector
Receptor portátil de mano para uso en campo Portabilidad
Monitorización del espectro radioeléctrico y localización de señales Aplicación Principal
| Atributo | Valor |
|---|---|
| Rango de Frecuencia | 9 kHz - 7,5 GHz |
| Ancho de Banda en Tiempo Real | 10 MHz |
| Tipo de Conector | Type N (hembra) |
| Portabilidad | Receptor portátil de mano para uso en campo |
| Aplicación Principal | Monitorización del espectro radioeléctrico y localización de señales |
| Modos de Detección | AM, FM, PM, pulso y señales digitales |
| Pantalla | Pantalla táctil a color de alta resolución |
| Alimentación | Batería recargable de iones de litio y alimentación externa DC |
| Interfaz de Comunicación | USB, LAN (Ethernet), GPS integrado |
| Normas y Cumplimiento | Cumple con normativas ITU para monitorización del espectro radioeléctrico |
Rohde & Schwarz PR100 Portable Receiver 9 kHz-7.5 GHz, 10 MHz Real Time, Type N (f) Options:
- PR100 - PS - Panorama Scan: RF scan, high-speed FFT scan across user-selectable scan range, selectable spectral resolution (bin width)
- PR100 - IR - Internal Recording: recording of measured data in the receiver (64 Mbyte RAM) or on SD card, recording of audio data in WAV format, recording of I/Q data, spectra and spectrogram (waterfall) data, R&S PR100-Control software for viewing measured data on customer PC
- PR100 - RC - Remote Control: remote control of receiver via LAN interface (SCPI protocol); transfer of measured data via LAN interface; transfer of demodulated I/Q data (up to 500 kHz bandwidth) via LAN interface; R&S PR100-Control software (for remote control, data recording and data playback via PC)
- PR100 - ETM - Externally Triggered Measurements: an external sensor (not supplied with the receiver) triggers a measurement in the R&S PR100; the sensor is connected via the AUX interface
- PR100 - FS - Field Strength Measurement: the field strength is calculated using antenna factors stored in the receiver; the receiver displays the field strength directly in dBµV/m
- PR100 - FP - SHF Frequency Processing for downconverter antennas: the downconverter unit of the R&S HF907DC antenna is connected to the receiver via a control cable; the receiver recalculates the downconverted signals to display them with their original frequencies up to 18 GHz
- PR100 - GPS - GPS Software Interface: for data stream processing of external GPS module (GPS module not included in scope of delivery)
- PR100 - DF - Direction Finder Upgrade Kit: adds accurate direction finding functionality to the R&S PR100 receiver (DF antennas and cable set not included)
- PR100 - PC - Polychrome Spectrum Display: adds a color-coded spectrum display to indicate the relative signal occupancy
- PR100 - DCV - Documentation of Calibration Values
| Model | PR100 |
|---|
The R&S?PR100 portable receiver has been specifically designed for radiomonitoring applications in the field. The receiver's functions and control concept have been optimized for monitoring tasks. In addition, it can be used for a variety of other applications.
