Rohde & Schwarz

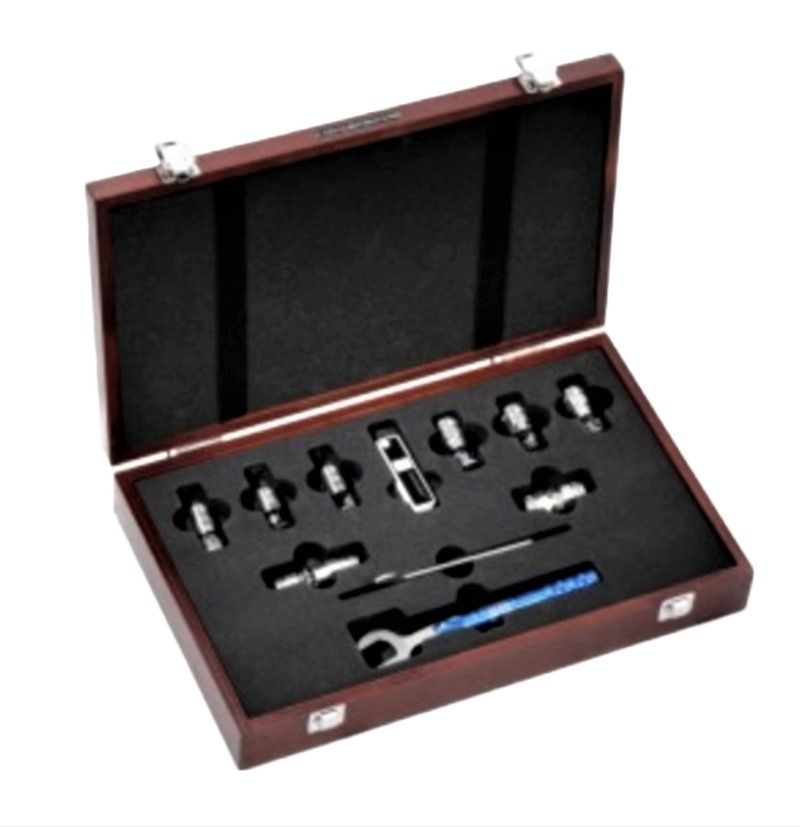

Rohde & Schwarz ZV-Z229
Calibration Kit, 2.92mm, 0 Hz - 40 GHz
2,4 mm Tipo de conector
Macho Género del conector
50 Ω Impedancia
50 GHz Frecuencia máxima
500 mm Longitud del cable
| Atributo | Valor |
|---|---|
| Tipo de conector | 2,4 mm |
| Género del conector | Macho |
| Impedancia | 50 Ω |
| Frecuencia máxima | 50 GHz |
| Longitud del cable | 500 mm |
| Tipo de cable | Cable de prueba de baja pérdida |
| Compatibilidad | Analizadores de redes vectoriales Rohde & Schwarz |
| Pérdida de inserción | Baja pérdida de inserción hasta 50 GHz |
| Temperatura de funcionamiento | 0 °C a +55 °C |
| Aplicación | Mediciones de parámetros S de alta frecuencia |
| Model | ZV-Z229 |
|---|
ROHDE & SCHWARZ ZV-Z229 Calibration Kit
Effective system data of R&S ®ZV-Z229
The specified effective system data are established after performing a suitable system error calibration, e.g. TOSM, at a R&S ® ZVA, R&S ® ZVB, or R&S ® ZVT vector network analyzer, using the characteristic data of the calibration kit, which are stored on a provided USB stick. This data is valid between +18 °C and +28 °C, at a measurement bandwidth of 10 Hz, and a nominal power of ˆ’10 dBm at the calibration ports. The calibration kit is fully functional down to 0 Hz, with effective system data as specified below, although the data is only verified for frequencies as stated.
Specifications for the ROHDE & SCHWARZ ZV-Z229 Calibration Kit Include:
| Directivity |
10 MHz to 700 MHz | > 33 dB, typ. 36 dB |
| 700 MHz to 24 GHz | > 38 dB, typ. 42 dB | |
| 24 GHz to 40 GHz | > 33 dB, typ. 36 dB | |
| Source match |
10 MHz to 700 MHz | > 30 dB, typ. 36 dB |
| 700 MHz to 24 GHz | > 36 dB, typ. 40 dB | |
| 24 GHz to 40 GHz | > 30 dB, typ. 36 dB | |
Reflection tracking |
10 MHz to 700 MHz | < 0.2 dB, typ. 0.1 dB |
| 700 MHz to 24 GHz | < 0.1 dB, typ. 0.05 dB | |
| 24 GHz to 40 GHz | < 0.2 dB, typ. 0.1 dB | |
| Load match | 10 MHz to 700 MHz | > 33 dB, typ. 36 dB |
| 700 MHz to 24 GHz | > 38 dB, typ. 42 dB | |
| 24 GHz to 40 GHz | > 33 dB, typ. 36 dB | |
| Transmission tracking | 10 MHz to 700 MHz | < 0.2 dB, typ. 0.1 dB |
| 700 MHz to 24 GHz | < 0.1 dB, typ. 0.04 dB | |
| 24 GHz to 40 GHz | < 0.2 dB, typ. 0.08 dB |
