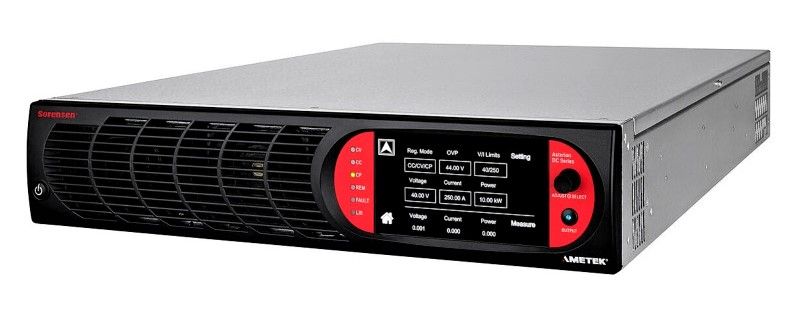

Sorensen AST400-25
| Atributo | Valor |
|---|---|
| Tensión de salida | 0 - 400 V |
| Corriente de salida | 0 - 25 A |
| Potencia máxima | 10.000 W (10 kW) |
| Tipo de fuente de alimentación | Fuente de alimentación de corriente continua (CC) programable |
| Regulación de línea (tensión) | 0,01% + 2 mV |
| Regulación de carga (tensión) | 0,01% + 2 mV |
| Rizado y ruido (tensión) | 50 mV pico a pico máximo |
| Interfaces de control | Analógica, RS-232, GPIB (opcional) |
| Tensión de entrada (CA) | 208/240 V CA, trifásica, 50/60 Hz |
| Temperatura de funcionamiento | 0 °C a 50 °C |
Sorensen AST400-25 Options:
- AST400-25 - 0 - No Interface Option
- AST400-25 - 1 - GPIB Interface
- AST400-25 - 2 - EtherCAT Interface
- AST400-25 - 0 - No Additional Option
- AST400-25 - 1 - Isolated Analog Control
- AST400-25 - C - Input Voltage: 1-phase 90-145 VAC, 1-phase/3-phase 180-264 VAC
- AST400-25 - D - Input Voltage: 400 VAC, 3-phase (4-wire + Ground)
- AST400-25 - 5330201-01R - Rack Slides (1 pair)
- AST400-25 - 890-524-01 - Paralleling/Series Cable (2 cables required to parallel/series 2 units)
- AST400-25 - AST-Z540 - ANSI Z540 Certified Calibration
- AST400-25 - AST-17025 - ISO 17025 Certified Calibration
| Model | AST400-25 |
|---|
SORENSEN AST400-25 Asterion DC Power Supply
The Sorensen AST400-25 Asterion DC fixed range supplies are economical, traditional rectangular wave output power supplies with all the enhanced operation advantages standard with the Asterion platform. The touchscreen function group icons include a Dashboard, Output Programming Parameters, Measurements, Sequencing, Configuration, Control Interfaces, Applications, and System Settings. Function selection and parameter entry can be achieved either by direct selection from the touchscreen or by using the encoder selector button.
The Sorensen Asterion AST400-25 is designed for testing today's complex electronics, including telecommunications and commercial electronics requiring low profile, light weight power supplies with high power density. The Sorensen AST400-25 is Digital Signal Processor (DSP) controlled and can be operated from the intuitive, easy-to-use front panel touchscreen or the Ethernet LXI, USB and RS232 standard control interfaces, as well as through the optional GPIB or EtherCAT control interface. The control resolution is adjusted by a dynamic rate change algorithm that combines the benefits of precise control over small parameter changes with quick sweeps through the entire range.
Specifications for the SORENSEN AST400-25 Asterion DC Power Supply Include:
| Voltage | 400V |
| Current | 25A |
| Total Power | 10000W |
| Voltage Programming Accuracy | +/- 0.1% |
