Sorensen

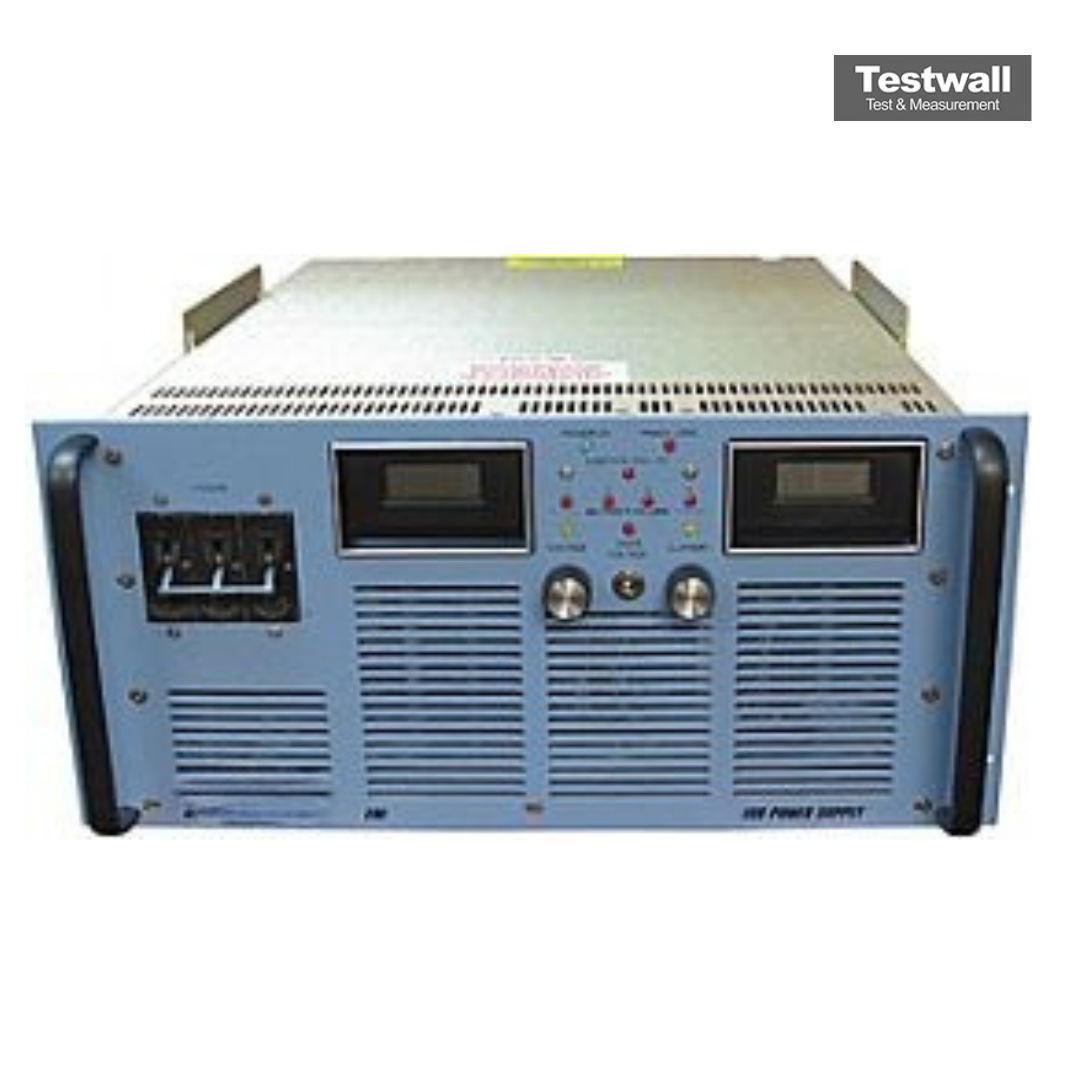

Sorensen DCR32-310T1
32-310A1 DC Power Supply
32 V Voltaje de salida
310 A Corriente de salida
9.920 W Potencia de salida
Salida única Tipo de salida
0,01% + 2 mV Regulación de línea (voltaje)
| Atributo | Valor |
|---|---|
| Voltaje de salida | 32 V |
| Corriente de salida | 310 A |
| Potencia de salida | 9.920 W |
| Tipo de salida | Salida única |
| Regulación de línea (voltaje) | 0,01% + 2 mV |
| Regulación de carga (voltaje) | 0,01% + 2 mV |
| Regulación de línea (corriente) | 0,01% + 3 mA |
| Regulación de carga (corriente) | 0,01% + 3 mA |
| Tensión de entrada | 208/240 V CA, trifásico |
| Dimensiones (An x Al x Pr) | 483 mm x 133 mm x 711 mm (3U) |
Sorensen DCR32-310T1 Options:
- DCR32-310T1 - T1 - STD. U.S. VOLTAGE, 208V, 60HZ
- DCR32-310T1 - T2 - STD. U.S. VOLTAGE, 380V, 50HZ
- DCR32-310T1 - T3 - STD. CONTINENTAL EUROPE VOLTAGE, 415V, 50HZ
- DCR32-310T1 - T5 - STD. BRITISH ISLES VOLTAGE, 480V, 60HZ
- DCR32-310T1 - 1060247-1 - Chassis Slides (Optional)
- DCR32-310T1 - 488 MICRO DAP - Interface to GPIB Bus, Order Model 488 MICRO DAP
- DCR32-310T1 - M5 - OVP Option: SCR crowbar M5
- DCR32-310T1 - Digital Metering - Digital: Standard
- DCR32-310T1 - Analog Metering - Analog: add M52
| Model | DCR32-310T1 |
|---|
The DCR32-310T1 is a member of the 10kW DCR-T family of 3-phase input, general purpose, rackmount Power supplies. It features Dual Digital panel Meters, automatic crossover between constant Voltage (CV) and constant current (CC), and over Voltage protection
