Sorensen

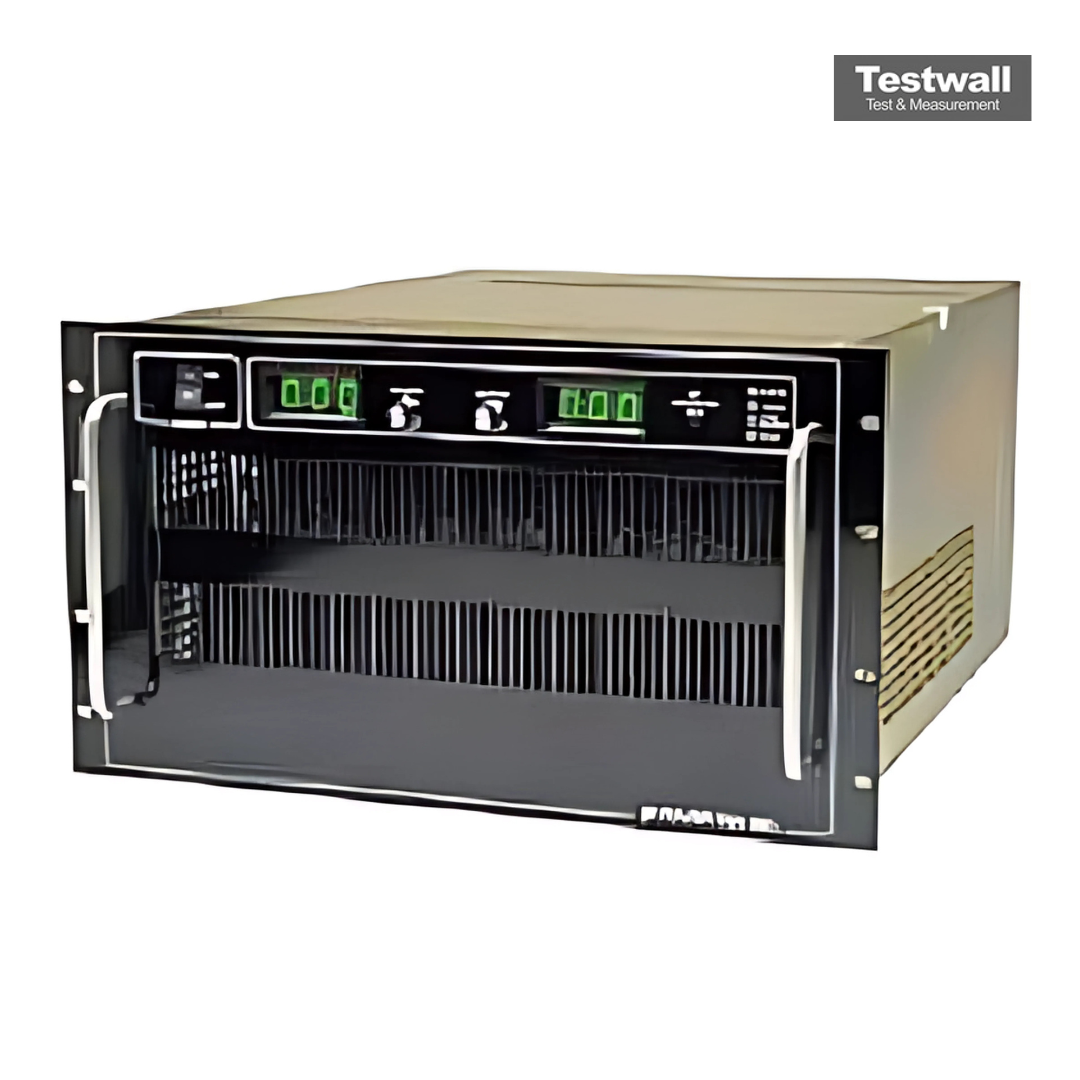

Sorensen DCR32-310T5
32-310A5 DC Power Supply
0 – 32 V Voltaje de salida
0 – 310 A Corriente de salida
9.920 W Potencia de salida
0,01% + 2 mV Regulación de línea (voltaje)
0,01% + 2 mV Regulación de carga (voltaje)
| Atributo | Valor |
|---|---|
| Voltaje de salida | 0 – 32 V |
| Corriente de salida | 0 – 310 A |
| Potencia de salida | 9.920 W |
| Regulación de línea (voltaje) | 0,01% + 2 mV |
| Regulación de carga (voltaje) | 0,01% + 2 mV |
| Rizado y ruido (voltaje) | 1 mV RMS / 5 mV pico a pico |
| Tensión de entrada | 208 V CA trifásico, 60 Hz |
| Interfaz de programación | Analógica (0–5 V / 0–10 V) |
| Factor de forma | Montaje en rack 5U |
| Temperatura de operación | 0 °C a 50 °C |
Sorensen DCR32-310T5 Options:
- DCR32-310T5 - T1 - STD. U.S. VOLTAGE, 208V, 60Hz
- DCR32-310T5 - T2 - STD. CONTINENTAL EUROPE VOLTAGE, 380V, 50Hz
- DCR32-310T5 - T3 - STD. BRITISH ISLES VOLTAGE, 415V, 50Hz
- DCR32-310T5 - T4 - 440 Vac ±10% @ 60Hz
- DCR32-310T5 - T5 - 480 Vac ±10% @ 60Hz
- DCR32-310T5 - 1060247-1 - Chassis Slides (Optional)
- DCR32-310T5 - 488 MICRO DAP - Digital Programmer: Interface to GPIB Bus (Optional)
- DCR32-310T5 - OVP - OVP shutdown (standard); Option: SCR crowbar M5
- DCR32-310T5 - M5 - SCR crowbar OVP option
- DCR32-310T5 - Digital - Digital Metering: Standard
- DCR32-310T5 - Analog - Analog Metering: add M52
| Model | DCR32-310T5 |
|---|
The DCR32-310T5 is a member of the 10kW DCR-T family of 3-phase input, general purpose, rackmount Power supplies. It features Dual Digital panel Meters, automatic crossover between constant Voltage (CV) and constant current (CC), and over Voltage protection
