Sorensen

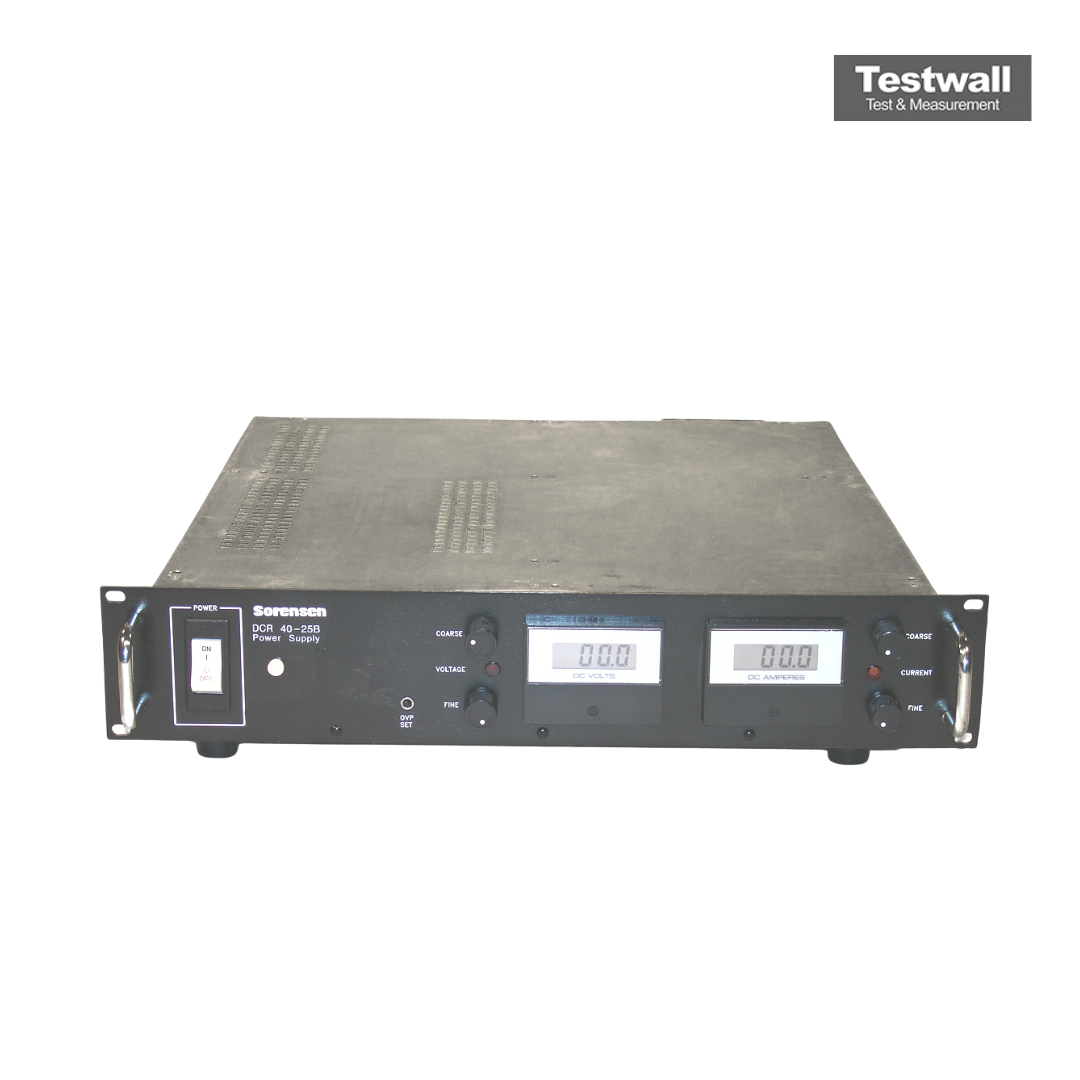

Sorensen DCR40-250
40-250 DC Power Supply
0 – 40 V Voltaje de salida
0 – 250 A Corriente de salida
10.000 W (10 kW) Potencia de salida
0,01% + 2 mV Regulación de línea (voltaje)
0,01% + 2 mV Regulación de carga (voltaje)
| Atributo | Valor |
|---|---|
| Voltaje de salida | 0 – 40 V |
| Corriente de salida | 0 – 250 A |
| Potencia de salida | 10.000 W (10 kW) |
| Regulación de línea (voltaje) | 0,01% + 2 mV |
| Regulación de carga (voltaje) | 0,01% + 2 mV |
| Rizado y ruido (voltaje) | 10 mV RMS típico |
| Tensión de entrada | 208/240 V CA, trifásico, 50/60 Hz |
| Interfaz de programación | Analógica (0–5 V / 0–10 V) y RS-232 opcional |
| Dimensiones (An × Al × Pr) | 483 mm × 222 mm × 711 mm (19" × 8,75" × 28") |
| Peso | 54,4 kg (120 lb) aproximadamente |
Sorensen DCR40-250 Options:
- DCR40-250 - M1 - 187-229 Vac, 1 phase, 57-63 Hz, 100% Eo max. (Factory Input Voltage Modification)
- DCR40-250 - M3 - 207-253 Vac, 1 phase, 57-63 Hz, 100% Eo max. (Factory Input Voltage Modification)
- DCR40-250 - M6 - 342-418 Vac, 3 phase, 47-63 Hz, 90% Eo max. (Factory Input Voltage Modification)
- DCR40-250 - M8 - 390-440 Vac, 1 phase, 47-63 Hz, 100% Eo max. (Factory Input Voltage Modification)
- DCR40-250 - M5 - Overvoltage Protection (OVP) crowbar protection
- DCR40-250 - VP19 - Overvoltage Protection module
- DCR40-250 - ST101 - Step Down Input Transformer, 380/415/460 Vac three phase to 208/230 Vac three phase @ 8 kW
- DCR40-250 - CH KIT - Casters Kit (optional casters for cabinet)
- DCR40-250 - CSE KIT - Cabinet Side Enclosures (optional for all models)
- DCR40-250 - RP0 - Rear Mounting Support (for rack mounting)
| Model | DCR40-250 |
|---|
The DCR40-250 is a member of the 3-phase DCR-A family of general purpose, rackmount Power supplies. It features Dual Analogue panel Meters, automatic crossover between constant Voltage (CV) and constant current (CC), and over Voltage protection (OVP).
