Sorensen

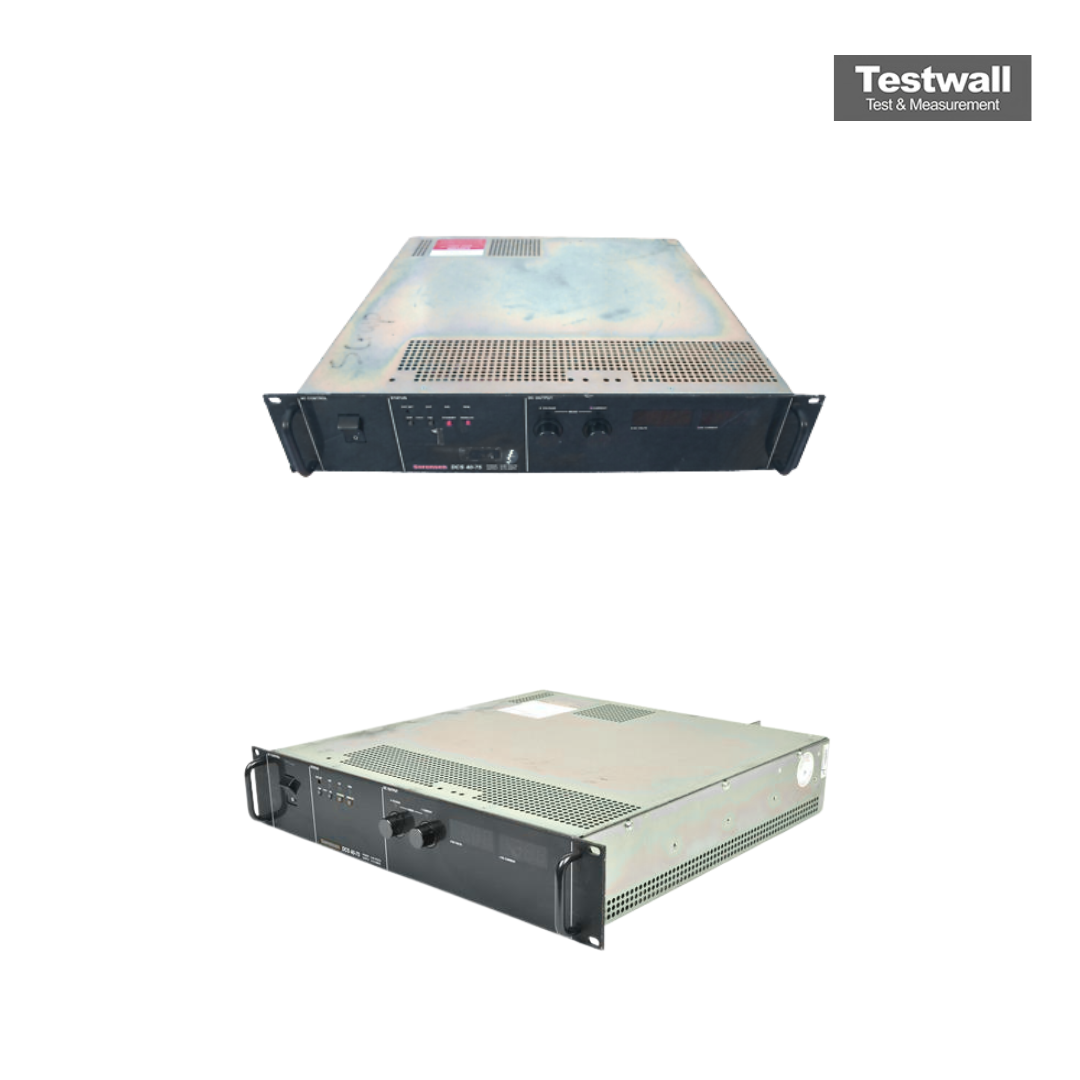

Sorensen DCS40-75
40-75 DC Power Supply
0 - 40 V Tensión de salida
0 - 75 A Corriente de salida
3000 W Potencia máxima de salida
208/240 V CA, monofásico Tensión de entrada
0,01% + 2 mV Regulación de línea (tensión)
| Atributo | Valor |
|---|---|
| Tensión de salida | 0 - 40 V |
| Corriente de salida | 0 - 75 A |
| Potencia máxima de salida | 3000 W |
| Tensión de entrada | 208/240 V CA, monofásico |
| Regulación de línea (tensión) | 0,01% + 2 mV |
| Regulación de carga (tensión) | 0,01% + 2 mV |
| Regulación de línea (corriente) | 0,01% + 2 mA |
| Regulación de carga (corriente) | 0,01% + 2 mA |
| Interfaz de programación | RS-232 / GPIB (opcional) |
| Factor de forma | Rack 3U |
Sorensen DCS40-75 Options:
- DCS40-75 - M1 - Factory configured for 115 VAC input (1 and 1.2 kW units only)
- DCS40-75 - M9C - Internal IEEE-488/RS 232 Interface
- DCS40-75 - M13 - Locking shafts (front panel potentiometers)
- DCS40-75 - M32 - Master/slave paralleling cable configured for two units
- DCS40-75 - M33 - Replace input connector with terminal block (3 kW only)
- DCS40-75 - M51A - Isolated analog programming control of V/I/OVP and isolated V/I monitor outputs up to 500V relative to the supply's return line
- DCS40-75 - M85 - Multichannel slave interface allows use of a single GPIB address (using 1 master unit with M9C option) to control multiple units via a standard RS485 connector (3 ft. connector included)
- DCS40-75 - 105-330-26 - Rack slide kit (3 kW only)
| Model | DCS40-75 |
|---|
Sorensen DCS40-75 Power Supply is a 3000W Supply designed to provide Highly stable, continuously variable Output Voltage and current for a broad range of development, System and burn-in applications.
