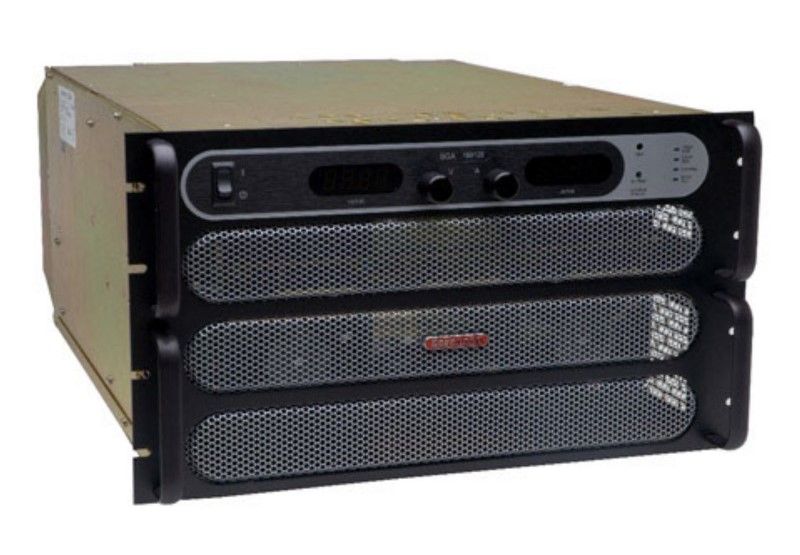

Sorensen SGA80-250
| Atributo | Valor |
|---|---|
| Voltaje de salida | 80 V |
| Corriente de salida | 250 A |
| Potencia de salida | 20.000 W (20 kW) |
| Tipo de salida | CC (Corriente Continua) |
| Regulación de línea de voltaje | 0,02% + 2 mV |
| Regulación de carga de voltaje | 0,02% + 2 mV |
| Regulación de línea de corriente | 0,04% + 2 mA |
| Tensión de entrada (CA) | 208/240 V CA, trifásico |
| Interfaz de programación | RS-232 / IEEE-488 (GPIB) |
| Factor de forma | Montaje en rack 19", 3U |
Sorensen SGA80-250 Options:
- SGA80-250 - C - Input Voltage 187 / 242VAC, 3 Phase
- SGA80-250 - D - Input Voltage 342 / 440VAC, 3 Phase
- SGA80-250 - E - Input Voltage 396 / 528VAC, 3 Phase
- SGA80-250 - 0A - No Remote Control Option
- SGA80-250 - 1A - IEEE-488.2 + RS-232C
- SGA80-250 - 1C - Ethernet + RS-232C
- SGA80-250 - 1D - Isolated Analog Control
- SGA80-250 - 1E - Shaft Locks (SGA series only)
- SGA80-250 - 2A - Combined Options 1A+1D
- SGA80-250 - 2C - Combined Options 1A+1E (SGA Only)
- SGA80-250 - 2G - Combined Options 1C+1D
- SGA80-250 - 2H - Combined Options 1C+1E (SGA Only)
- SGA80-250 - 2J - Combined Options 1D+1E (SGA Only)
- SGA80-250 - 3C - Combined Options 1A+1D+1E (SGA Only)
- SGA80-250 - 3G - Combined Options 1C+1D+1E (SGA Only)
- SGA80-250 - AA - No Process Option
- SGA80-250 - AB - Certificate of Calibration to ANSI / NCSL Z540-1 (includes Test Data)
- SGA80-250 - AJ - Front panel dust filter - factory installed - 3U unit only
- SGA80-250 - PF - Passive power factor correction to 0.9
- SGA80-250 - R - RoHS Compliant Version
| Model | SGA80-250 |
|---|
SORENSEN SGA80-250 DC Power Supply
The Sorensen SGA80-250 Series represents the next generation of high power programmable DC power supplies. The SG Series is designed for exceptional load transient response, low noise and the highest power density in the industry. With a full 15 kW available down to 20VDC output in a 3U package the SG leads the industry in power density. The power density is enhanced by a stylish front air intake allowing supplies to be stacked without any required clearance between units. At the heart of the SGA80-250 series is a 5 kW power module. Depending on the output voltage, one to six modules can be configured in a single chassis to deliver 5 kW to 30 kW of power. Combinations of these chassis can then be easily paralleled to achieve power levels up to 150 kW. Paralleled units operate like one single supply providing total system current.
SGA: Outstanding Value - Analog Control: The SGA, with its industry leading performance, is available for customers requiring simple front panel analog controls or external control. With the same high performance power electronics as the SGI, the SGA provides essential features like 10- turn potentiometers for setting voltage and current, 3 ½ digit LED readout plus front panel over-voltage protection (OVP) preview/adjustment and reset.
Specifications for the SORENSEN SGA80-250 DC Power Supply Include:
| Voltage | 80V |
| Current | 250A |
| Power | 16/20kW |
| Efficiency % (Typ.) | 87% |
