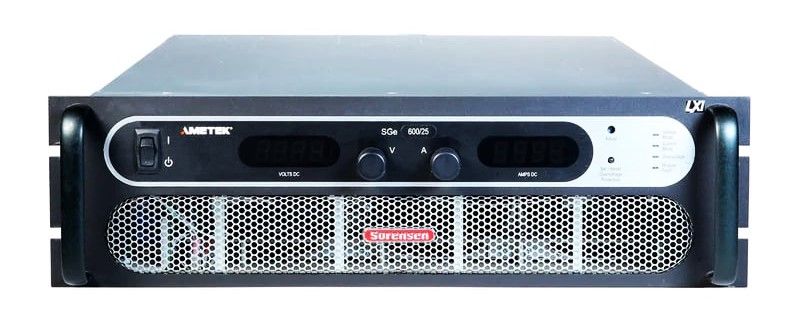

Sorensen SGE800-12.5
| Atributo | Valor |
|---|---|
| Tensión de salida | 800 V |
| Corriente de salida | 12,5 A |
| Potencia máxima | 10.000 W (10 kW) |
| Tipo de fuente de alimentación | Fuente de alimentación de corriente continua (CC) programable |
| Regulación de línea (tensión) | 0,01% + 2 mV |
| Regulación de carga (tensión) | 0,01% + 2 mV |
| Tensión de entrada (CA) | 208/240 V CA, trifásico |
| Interfaz de programación | GPIB/IEEE-488, RS-232 (opcionales) |
| Dimensiones (U rack) | 3U (altura de rack estándar) |
| Rango de temperatura de funcionamiento | 0 °C a 50 °C |
Sorensen SGE800-12.5 Options:
- SGE800-12.5 - C - Input Voltage 187 / 242VAC, 3 Phase
- SGE800-12.5 - D - Input Voltage 342 / 440VAC, 3 Phase
- SGE800-12.5 - E - Input Voltage 396 / 528VAC, 3 Phase
- SGE800-12.5 - 0A - No Option (Remote Control)
- SGE800-12.5 - 1A - IEEE-488.2 + RS-232C
- SGE800-12.5 - 1C - Ethernet + RS-232C
- SGE800-12.5 - 1D - Isolated Analog Control
- SGE800-12.5 - 1E - Shaft Locks (SGe only)
- SGE800-12.5 - 2A - Combined Options 1A+1D
- SGE800-12.5 - 2C - Combined Options 1A+1E (SGe Only)
- SGE800-12.5 - 2G - Combined Options 1C+1D
- SGE800-12.5 - 2H - Combined Options 1C+1E (SGe Only)
- SGE800-12.5 - 2J - Combined Options 1D+1E (SGe Only)
- SGE800-12.5 - 3C - Combined Options 1A+1D+1E (SGe Only)
- SGE800-12.5 - 3G - Combined Options 1C+1D+1E (SGe Only)
- SGE800-12.5 - AA - No Process Option
- SGE800-12.5 - AB - Certificate of Calibration to ANSI / NCSL Z540-1 (includes Test Data)
- SGE800-12.5 - AJ - Front panel dust filter - factory installed - 3U unit only
- SGE800-12.5 - CV - 400Hz AC input @ 208VAC (does not carry CE, CSA, or UL marks) (6U only) STD on 3U
- SGE800-12.5 - PF - Passive power factor correction to 0.9 (Only applicable to 40V, 60V to 800V. Included in 10V-30V, 50V and 1000V.)
- SGE800-12.5 - 890-453-03 - Paralleling Cable (for up to 5 units, requires one cable per unit placed in parallel)
- SGE800-12.5 - K550212-01 - 3U Rack Slides (for 5kW, 10kW and 15kW models)
- SGE800-12.5 - K550213-01 - 6U Rack Slides (for 20kW, 25kW and 30kW models)
- SGE800-12.5 - K550532-01 - Front panel dust filter - field installation kit - 3U unit only
- SGE800-12.5 - 5551082-01 - Optional AC input cover kit - 3U unit only
| Model | SGE800-12.5 |
|---|
The SGe is an economical, FET based, high switching speed, programmable, dc power supply alternative to SCR and IGBT based dc supplies.
Most topologies use either a MosFET or IGBT approach within their power stage to execute their power conversion topology. At the same time end users value low output ripple and noise in conjunction with achieving high slew rates. Both IGBT and SCR based designs typically run at much lower switching speeds requiring a larger LC output filter design for similar performance or require degrading ripple and noise performance in order to maintain competitive power densities. The filter design in this case may be balanced to trade off performance of response time with output ripple and noise and densities.
In contrast, our SGe line leverages the benefits of using high switching speed Mosfets requiring a much smaller output stage LC filter in order to provide competitive output ripple and noise performance and response time without compromising power densities. Available in two control versions, the SGe has basic analog controls, while the SGI provides intelligent control features
SGe: Real Value - Analog Control
The SGe, with its outstanding FET based power electronics, is available for customers requiring simple front panel analog controls or external control. With high performance power electronics the SGe provides essential features like 10- turn potentiometers for setting voltage and current, 3 ½ digit LED readout plus front panel over-voltage protection (OVP) preview/adjustment and reset.
