Sorensen

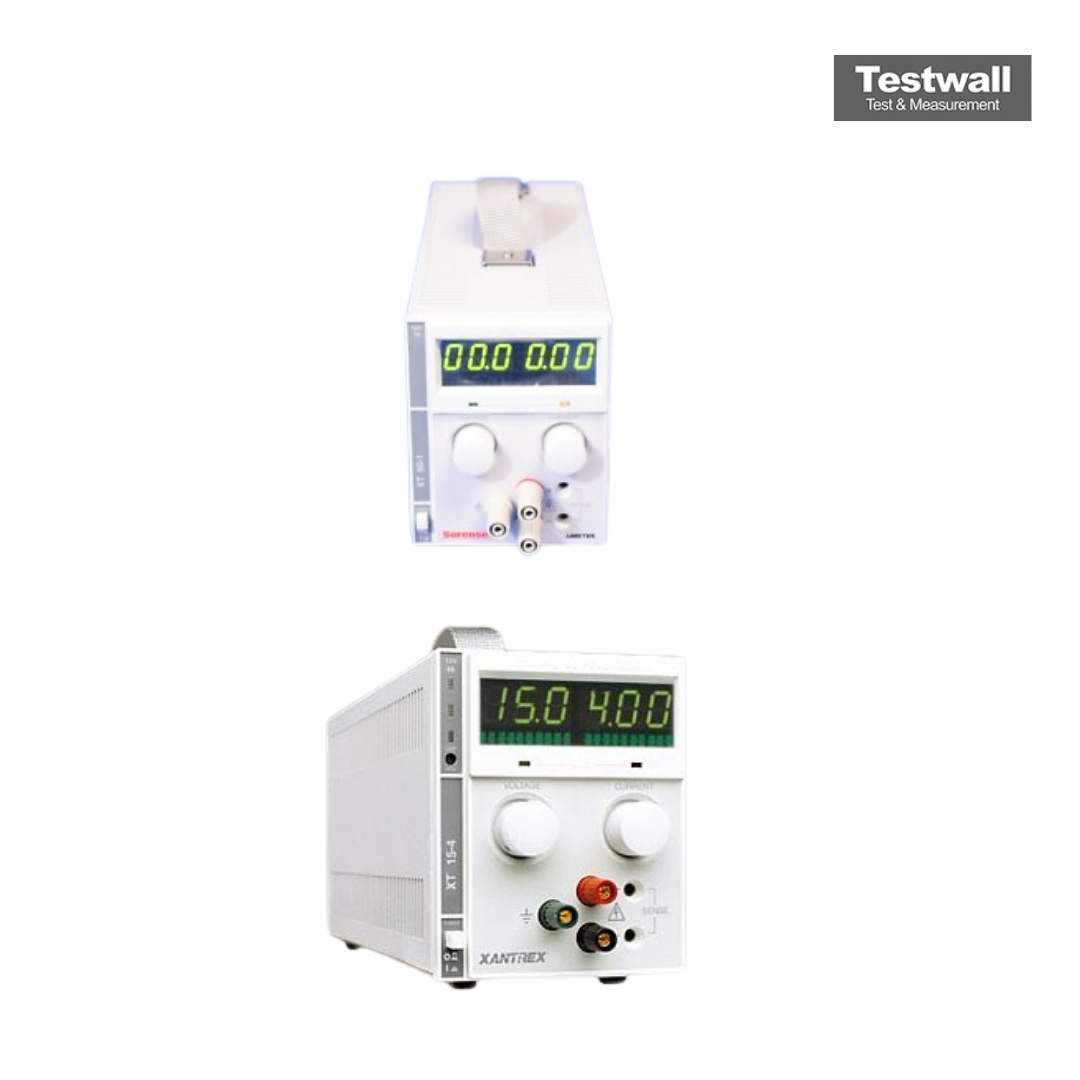

Sorensen XT60-1
Programmable DC Power Supply
0 - 60 V CC Voltaje de salida
0 - 1 A Corriente de salida
60 W Potencia máxima
0,01% + 2 mV Regulación de línea (voltaje)
0,01% + 2 mV Regulación de carga (voltaje)
| Atributo | Valor |
|---|---|
| Voltaje de salida | 0 - 60 V CC |
| Corriente de salida | 0 - 1 A |
| Potencia máxima | 60 W |
| Regulación de línea (voltaje) | 0,01% + 2 mV |
| Regulación de carga (voltaje) | 0,01% + 2 mV |
| Regulación de línea (corriente) | 0,01% + 250 µA |
| Regulación de carga (corriente) | 0,01% + 250 µA |
| Rizado y ruido (voltaje) | 1 mV RMS |
| Tensión de entrada | 115 / 230 V CA, 50/60 Hz |
| Temperatura de operación | 0 °C a 40 °C |
Sorensen XT60-1 Options:
- XT60-1 - M1 - Power Input Modification: 110V ±10%, 47-63 Hz
- XT60-1 - M2 - Power Input Modification: 220V ±10%, 47-63 Hz
- XT60-1 - M3 - Power Input Modification: 230V ±10%, 47-63 Hz
- XT60-1 - M4 - Power Input Modification: 240V ±10%, 47-63 Hz
- XT60-1 - M5A - Analog Programming: Internal interface for full scale remote programming of output voltage and/or current by a 0-10V or 0-10 kΩ external source; includes 0-10V readback, externally adjustable offset and range, front panel adjustable OVP, TTL shutdown with selectable logic, master/slave tracking and status signals (may not be combined with M9B)
- XT60-1 - M9B - Internal IEEE-488 Interface: Complete remote programming including status reporting, settings query and interrupt generation with user designated fault conditions; voltage and current output precisely programmed directly in volts and amps (may not be combined with M5A)
- XT60-1 - M11 - 10-turn current control potentiometer
- XT60-1 - M13 - Locking shafts (front panel potentiometer)
- XT60-1 - RM-XHS - Rack Adapter Kit
| Model | XT60-1 |
|---|
