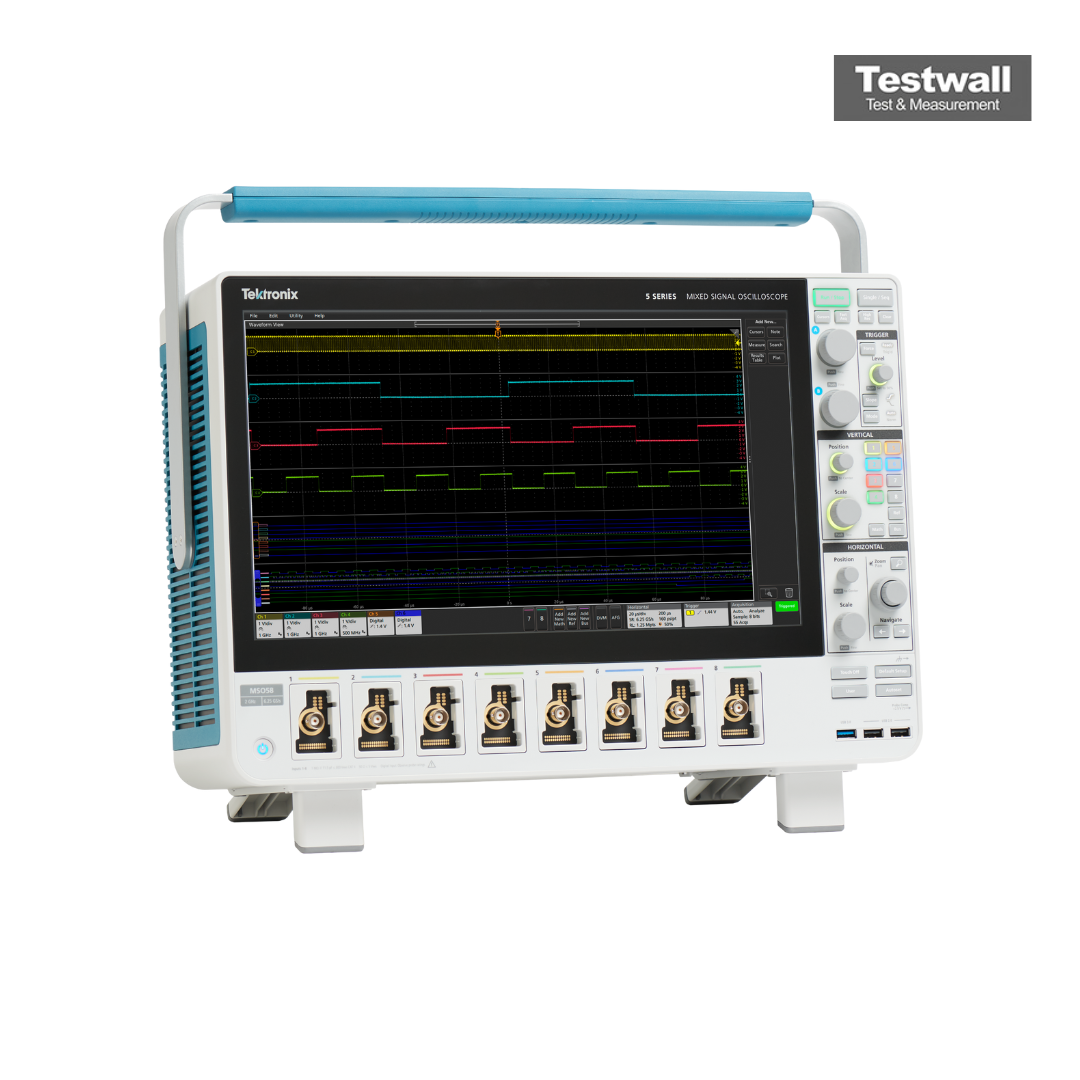

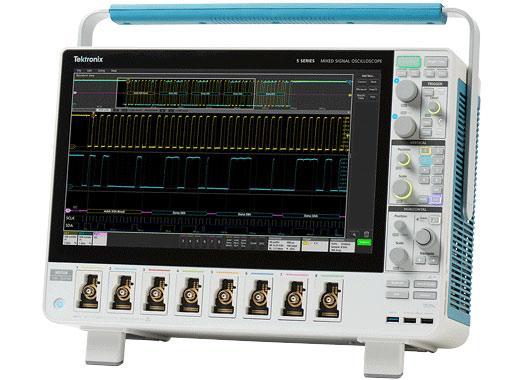

Tektronix 5 Series MSO MSO Mixed Signal Oscilloscope, 300 MHz- 2 GHz
SO MSO Mixed Signal Oscilloscope, 300 MHz- 2 GHz
300 MHz - 2 GHz Ancho de banda
4 u 8 canales analógicos Número de canales analógicos
Hasta 64 canales digitales (con sondas FlexChannel) Canales digitales
Hasta 6,25 GS/s Frecuencia de muestreo
Hasta 125 Mpuntos Longitud de registro
| Atributo | Valor |
|---|---|
| Ancho de banda | 300 MHz - 2 GHz |
| Número de canales analógicos | 4 u 8 canales analógicos |
| Canales digitales | Hasta 64 canales digitales (con sondas FlexChannel) |
| Frecuencia de muestreo | Hasta 6,25 GS/s |
| Longitud de registro | Hasta 125 Mpuntos |
| Pantalla | Pantalla táctil capacitiva HD de 15,6 pulgadas (1920 x 1080) |
| Resolución vertical | 12 bits (hasta 16 bits en modo de alta resolución) |
| Tasa de captura de formas de onda | Más de 500.000 formas de onda por segundo |
| Analizador de protocolos integrado | Sí, compatible con I2C, SPI, USB, CAN, LIN, FlexRay, Ethernet y más |
| Conectividad | USB, LAN (LXI), Wi-Fi opcional, salida DisplayPort |
Tektronix 5 Series MSO MSO Mixed Signal Oscilloscope, 300 MHz- 2 GHz Options:
- MSO54 - 5-BW-350 - 350 MHz Bandwidth
- MSO54 - 5-BW-500 - 500 MHz Bandwidth
- MSO54 - 5-BW-1000 - 1 GHz Bandwidth
- MSO54 - 5-BW-2000 - 2 GHz Bandwidth
- MSO56 - 5-BW-350 - 350 MHz Bandwidth
- MSO56 - 5-BW-500 - 500 MHz Bandwidth
- MSO56 - 5-BW-1000 - 1 GHz Bandwidth
- MSO56 - 5-BW-2000 - 2 GHz Bandwidth
- MSO58 - 5-BW-350 - 350 MHz Bandwidth
- MSO58 - 5-BW-500 - 500 MHz Bandwidth
- MSO58 - 5-BW-1000 - 1 GHz Bandwidth
- MSO58 - 5-BW-2000 - 2 GHz Bandwidth
- 5 - 5-RL-125M - Extend record length from 62.5 Mpoints/channel to 125 Mpoints/channel
- 5 - 5-RL-250M - Extend record length from 62.5 Mpoints/channel to 250 Mpoints/channel
- 5 - 5-RL-500M - Extend record length from 62.5 Mpoints/channel to 500 Mpoints/channel
- 5 - 5-WIN - Add removable SSD with Microsoft Windows 10 operating system license
- 5 - 5-AFG - Add Arbitrary / Function Generator
- 5 - 5-SEC - Add enhanced security for instrument declassification and password-protected enabling and disabling of all USB ports and firmware upgrade
- 5 - 5-SRAERO - Aerospace serial triggering and analysis (MIL-STD-1553, ARINC 429)
- 5 - 5-SRAUDIO - Audio serial triggering and analysis (I2S, LJ, RJ, TDM)
- 5 - 5-SRAUTO - Automotive serial triggering and analysis (CAN, CAN FD, LIN, FlexRay, and CAN symbolic decoding)
- 5 - 5-SRAUTOEN1 - 100BASE-T1 Automotive Ethernet serial analysis
- 5 - 5-SRAUTOSEN - Automotive sensor serial triggering and analysis (SENT)
- 5 - 5-SRCOMP - Computer serial triggering and analysis (RS-232/422/485/UART)
- 5 - 5-SREMBD - Embedded serial triggering and analysis (I2C, SPI)
- 5 - 5-SRENET - Ethernet serial triggering and analysis (10BASE-T, 100BASE-TX)
- 5 - 5-SR8B10B - 8B/10B (decode and search only)
- 5 - 5-SRI3C - MIPI I3C (I3C decode and search only)
- 5 - 5-SRMDIO - MDIO (decode and search only)
- 5 - 5-SRNRZ - NRZ (decode and search only)
- 5 - 5-SRPM - Power Management serial triggering and analysis (SPMI)
- 5 - 5-SRPSI5 - PSI5 (decode and search only)
- 5 - 5-SRSPACEWIRE - Spacewire (decode and search only)
- 5 - 5-SRVID - SVID (decode and search only)
- 5 - 5-SRUSB2 - USB (USB2.0 LS, FS, HS)
- 5 - 5-SREUSB2 - eUSB2.0 (decode and search only)
- 5 - 5-CMAUTOEN - Automotive Ethernet (100Base-T1, 1000Base-T1) automated compliance test solution
- 5 - 5-CMAUTOEN10 - Automotive Ethernet (10BASE-T1S Short Reach) automated compliance test solution
- 5 - 5-AUTOEN-BND - Automotive Ethernet Compliance, Signal Separation, PAM3 Analysis, 100Base-T1 Decode software (requires options 5-DJA)
- 5 - 5-AUTOEN-SS - Automotive Ethernet Signal Separation
- 5 - 5-CMINDUEN10 - Industrial Ethernet (10Base-T1L Long Reach) automated compliance test solution
- 5 - 5-CMENET - Ethernet automated compliance test solution (10BASE-T/100BASE-T/1000BASE-T)
- 5 - 5-CMUSB2 - USB2.0 automated compliance test solution (requires TDSUSBF USB test fixture)
- 5 - 5-DBLVDS - TekExpress automated LVDS test solution (requires options 5-DJA and 5-WIN)
- 5 - 5-DJA - Advanced Jitter and Eye Analysis
- 5 - 5-DPM - Digital Power Management
- 5 - 5-DPMBAS - Basic Digital Power Management
- 5 - 5-IMDA - Inverter Motor Drive Analysis (not compatible with MSO54)
- 5 - 5-MTM - Mask and Limit Testing
- 5 - 5-PAM3 - PAM3 analysis (requires options 5-DJA and 5-WIN)
- 5 - 5-PS2 - Power Solution Bundle (5-PWR, THDP0200, TCP0030A, 067-1686-xx deskew fixture)
- 5 - 5-PS2FRA - Power Solution Bundle (5-PWR, THDP0200, TCP0030A, two TPP0502, 067-1686-xx deskew fixture)
- 5 - 5-PWR - Power Measurement and Analysis
- 5 - 5-SV-BW-1 - Increase Spectrum View Capture Bandwidth to 500 MHz
- 5 - 5-SV-RFVT - Spectrum View RF versus Time analysis, trigger and remote IQ data transferring
- 5 - 5-VID - NTSC, PAL, and SECAM video triggering
- 5 - A0 - North America power plug (115 V, 60 Hz)
- 5 - A1 - Universal Euro power plug (220 V, 50 Hz)
- 5 - A2 - United Kingdom power plug (240 V, 50 Hz)
- 5 - A3 - Australia power plug (240 V, 50 Hz)
- 5 - A5 - Switzerland power plug (220 V, 50 Hz)
- 5 - A6 - Japan power plug (100 V, 50/60 Hz)
- 5 - A10 - China power plug (50 Hz)
- 5 - A11 - India power plug (50 Hz)
- 5 - A12 - Brazil power plug (60 Hz)
- 5 - A99 - No power cord
- 5 - T3 - Three Year Total Protection Plan
- 5 - T5 - Five Year Total Protection Plan
- 5 - R5 - Standard Warranty Extended to 5 Years
- 5 - C3 - Calibration Service 3 Years
- 5 - C5 - Calibration Service 5 Years
- 5 - D1 - Calibration Data Report
- 5 - D3 - Calibration Data Report 3 Years (with Option C3)
- 5 - D5 - Calibration Data Report 5 Years (with Option C5)
| Model | 5 |
|---|
El Tektronix 5 Series MSO ofrece 4, 6 u 8 entradas FlexChannel® para analizar señales analógicas y digitales, con ancho de banda de hasta 2 GHz, muestreo de 6,25 GS/s y memoria de 62,5 Mpuntos. Incluye pantalla táctil HD de 15,6", herramientas avanzadas de disparo y análisis espectral.
Ideal para depuración de protocolos, validación de diseño de alta velocidad y análisis de sistemas de energía con funciones opcionales de conformidad.
Testwall puede suministrar el Tektronix 5 Series MSO usado, completamente probado. Con soporte experto y entrega global, Testwall garantiza instrumentos confiables y de alto rendimiento. Contáctenos si necesita calibración o reparación del Tektronix 5 Series MSO.
