Tektronix 80C17
| Atributo | Valor |
|---|---|
| Ancho de banda | 53 GHz |
| Tiempo de subida | 6,6 ps |
| Número de canales | 1 canal óptico |
| Longitud de onda de operación | 750 nm a 1650 nm |
| Tipo de conector óptico | Conector universal (adaptadores intercambiables) |
| Compatibilidad | Compatible con samplers de la serie 80000B y DSA8200 |
| Potencia de entrada máxima | +10 dBm promedio |
| Sensibilidad | -18 dBm mínimo |
| Tipo de módulo | Módulo de muestreo óptico |
| Aplicaciones | Medición de señales ópticas de alta velocidad, caracterización de transmisores ópticos |
Tektronix 80C17 Options:
- 80C17 - IMP - Impulse response correction. In conjunction with DSA8300 400G-M4, may be used to extend optical channel optical bandwidth up to 36.2 GHz (-3dBo) and electrical bandwidth up to 26.5625 GHz (-3dBe). Suitable for TDECQ testing on PAM4 rates up to 53.125 GBd.
- 80C17 - CRTP - CRTP (Clock Recovery Trigger Pickoff) for the 80C17 and 80C18 Optical Modules. Does not include optical splitter.
- 80C17 - CRTP-MM - CRTP (Clock Recovery Trigger Pickoff) for 80C17 and 80C18 Optical Modules. Includes 50 μm MM 10/90 optical splitter.
- 80C17 - CRTP-SM - CRTP (Clock Recovery Trigger Pickoff) for 80C17 and 80C18 Optical Modules. Includes SM 10/90 optical splitter.
- 80C17 - C3 - Calibration Service 3 Years
- 80C17 - C5 - Calibration Service 5 Years
- 80C17 - D1 - Calibration Data Report
- 80C17 - D3 - Calibration Data Report 3 Years (with Opt. C3)
- 80C17 - D5 - Calibration Data Report 5 Years (with Opt. C5)
- 80C17 - G3 - Three Year Gold Care Plan. Includes expedited repair of all product failures including ESD and EOS, access to a loaner product during repair or advanced exchange to reduce downtime, and priority access to Customer Support among others.
- 80C17 - G5 - Five Year Gold Care Plan. Includes expedited repair of all product failures including ESD and EOS, access to a loaner product during repair or advanced exchange to reduce downtime, and priority access to Customer Support among others.
- 80C17 - R3 - Repair Service 3 Years (including warranty)
- 80C17 - R5 - Repair Service 5 Years (including warranty)
| Model | 80C17 |
|---|

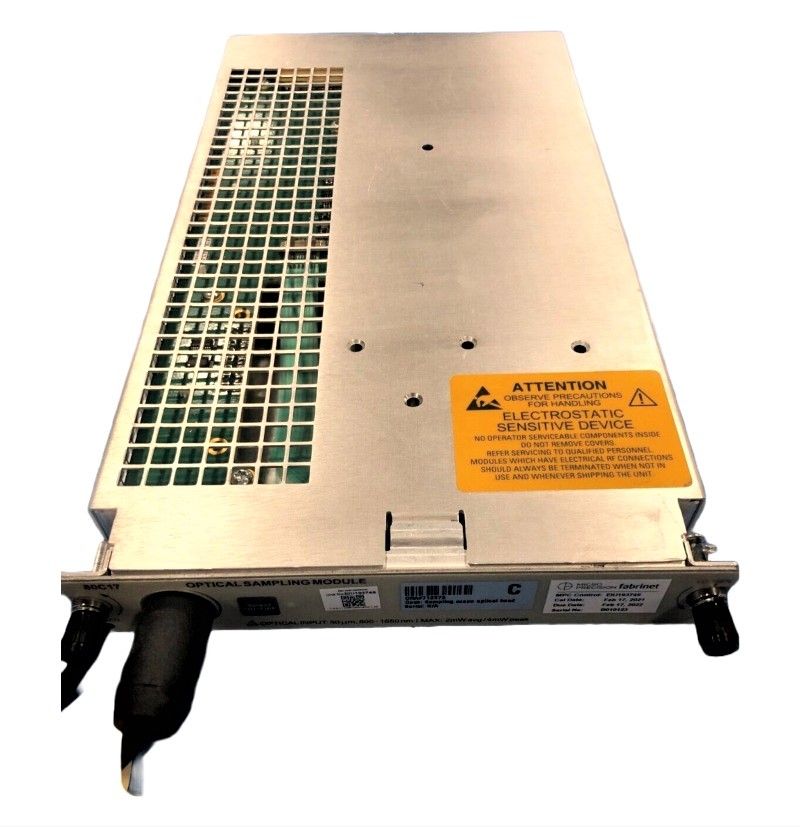

Tektronix 80C17 Optical Module
The Tektronix 80C17 Optical Module is a single Channel Optical Module used for testing high-speed optical communication systems. It is designed to work with TektronixX DSA8300 Digital Serial Analyzer mainframes and provides optical-to-electrical (O/E) conversion of incoming optical signals, as well as electrical-to-optical (E/O) conversion of outgoing electrical signals. Tektronix 80C17 Optical Module provides >30 GHz full bandwidth and fully integrated optical reference receivers (ORR)6, enabling conformance testing of both single and multi-mode conformance testing at 850, 1310 and 1550 nm.
The Tektronix 80C17 Optical Module supports two independent channels, with each channel featuring a high-speed photodetector for O/E conversion and a laser diode for E/O conversion. It is capable of operating at data rates up to 12.5 Gb/s, with low added jitter and noise to ensure accurate measurements. The module supports a variety of optical connector types, including FC, SC, and LC. It also includes built-in power and wavelength monitors to ensure stable and consistent performance over time. Overall, the Tektronix 80C17 Dual Channel Optical Module is a reliable and high-performance instrument which provides complete optical test solutions for telecom, datacom applications.
Specifications for the Tektronix 80C17 Optical Module Include:
| Wavelength range (nm) | 800 €“ 1600 |
| Unfiltered optical bandwidth | >30 GHz |
| Calibrated wavelength ( ± 20nm) | 850 / 1310 / 1550 |
| Typical mask test sensitivity (dBm) | -14 at 1310 nm 21 |
