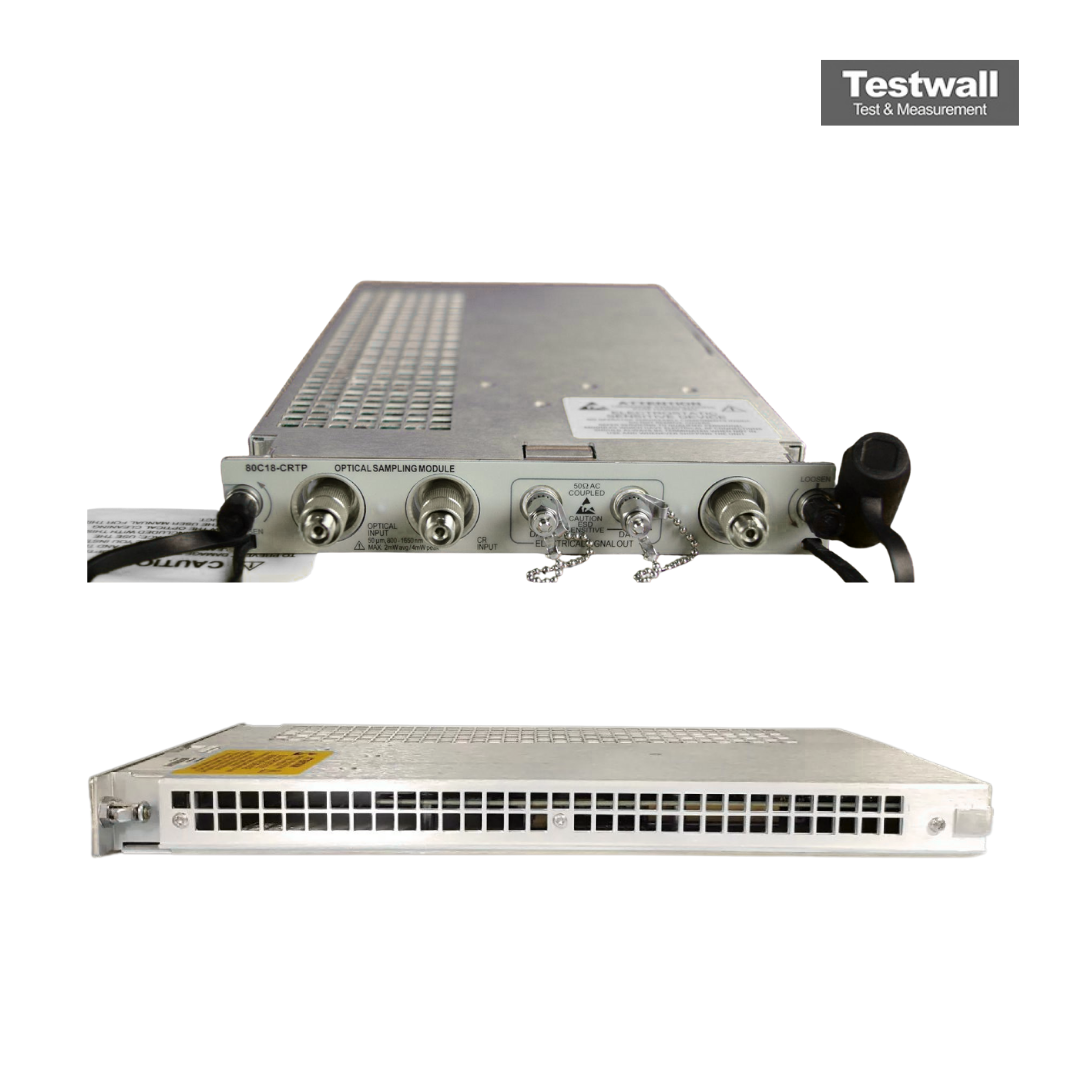

Tektronix 80C18
| Atributo | Valor |
|---|---|
| Ancho de banda óptico | 18 GHz |
| Longitud de onda | 750 nm – 1650 nm |
| Tipo de conector óptico | FC/PC |
| Compatibilidad | Osciloscopios de muestreo Tektronix serie CSA8000 y TDS8000 |
| Impedancia de entrada eléctrica | 50 Ω |
| Tiempo de subida | ≤ 19,4 ps |
| Sensibilidad de entrada óptica | -8 dBm promedio |
| Potencia óptica máxima de entrada | +3 dBm promedio |
| Tipo de fotodetector | InGaAs |
| Factor de conversión O/E | 0,5 V/W típico |
Tektronix 80C18 Options:
- 80C18 - IMP - Impulse response correction. In conjunction with DSA8300 400G-M4, may be used to extend optical channel optical bandwidth up to 36.2 GHz (-3dBo) and electrical bandwidth up to 26.5625 GHz (-3dBe). Suitable for TDECQ testing on PAM4 rates up to 53.125 GBd.
- 80C18 - CRTP - CRTP (Clock Recovery Trigger Pickoff) for the 80C18 Optical Module. Does not include optical splitter.
- 80C18 - CRTP-MM - CRTP (Clock Recovery Trigger Pickoff) for 80C18 Optical Module. Includes 50 μm MM 10/90 optical splitter.
- 80C18 - CRTP-SM - CRTP (Clock Recovery Trigger Pickoff) for 80C18 Optical Module. Includes SM 10/90 optical splitter.
- 80C18 - C3 - Calibration Service 3 Years
- 80C18 - C5 - Calibration Service 5 Years
- 80C18 - D1 - Calibration Data Report
- 80C18 - D3 - Calibration Data Report 3 Years (with Opt. C3)
- 80C18 - D5 - Calibration Data Report 5 Years (with Opt. C5)
- 80C18 - G3 - Three Year Gold Care Plan. Includes expedited repair of all product failures including ESD and EOS, access to a loaner product during repair or advanced exchange to reduce downtime, and priority access to Customer Support among others.
- 80C18 - G5 - Five Year Gold Care Plan. Includes expedited repair of all product failures including ESD and EOS, access to a loaner product during repair or advanced exchange to reduce downtime, and priority access to Customer Support among others.
- 80C18 - R3 - Repair Service 3 Years (including warranty)
- 80C18 - R5 - Repair Service 5 Years (including warranty)
| Model | 80C18 |
|---|
El módulo óptico Tektronix 80C18 ofrece un ancho de banda óptico sin filtrar de >30 GHz y admite pruebas de conformidad en longitudes de onda de 850, 1310 y 1550 nm. Incorpora receptores de referencia óptica integrados y filtros de ancho de banda seleccionables para velocidades de 25,781 Gb/s, 26,5625 Gb/s, 27,952 Gb/s y 28,05 Gb/s. Ideal para 100GBASE y Fibre Channel, permite optimizar el ruido.
Utilizado para análisis de señales ópticas de alta velocidad, el 80C18 garantiza caracterización precisa con un rango de 800–1600 nm y sensibilidad de máscara de ‑14 dBm a 1310 nm.
Testwall puede suministrar el Tektronix 80C18 usado, completamente testado. Con soporte experto y entrega global, Testwall asegura instrumentación de alto rendimiento con fiabilidad y calidad de servicio inigualables. Contáctenos directamente si necesita calibración o reparación del Tektronix 80C18.
