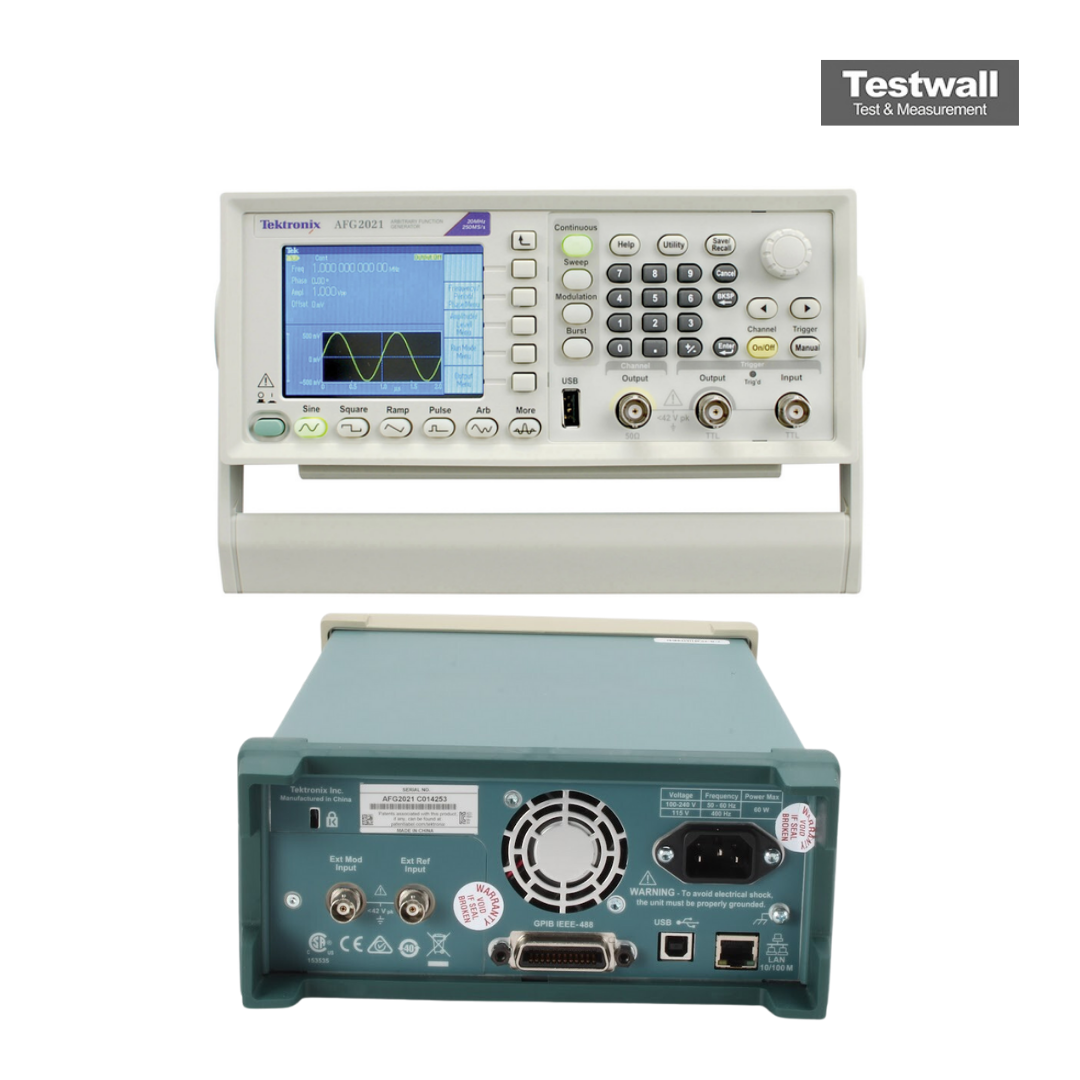

Tektronix AFG2021

Tektronix AFG2021  Tektronix AFG2021 Arbitrary Function Generator, 20 MHz, 1 Ch.The Tektronix AFG2021 Arbitrary Function Generator gives you the power to create the signals you need at an entry-level price. With 20 MHz bandwidth, 14-bit resolution, and 250 MS/s sample rate, you can generate all manner of signals -- from complex serial data streams to simple audio frequencies or clock signals to the output of an airbag sensor during a crash. With 12 standard waveforms, modulation capability, and a built-in noise generator, you can quickly create the signal you need to thoroughly exercise your designs. Most electronic devices, circuits, and systems are designed to handle some form of a signal. These signals can be simple like an audio frequency or clock signal or more complex like a serial data stream or the output of an airbag sensor during a crash. With 20 MHz bandwidth, 14-bit resolution, and 250 MS/s sample rate, the Tektronix AFG2021 Arbitrary Function Generator can create both simple and complex signals at an entry-level price. With 12 standard waveforms, modulation capability, and a built-in noise generator, you can quickly create the signal you need to thoroughly exercise your designs.Features and Specifications of the Tektronix AFG2021 includes:

20 MHz sine, 10 MHz pulse waveforms provide coverage for your most common applications

250 MS/s sampling rate and 14-bit vertical resolution enable the creation of high-fidelity signals

The innovative UI reduces setup and evaluation time with direct access to frequently used functions and parameters

The internal 4 × 128 kS memory and the USB memory expansion capability provide substantial capacity for defining complex waveforms

USB remote control port and USB flash drive port are included. GPIB and LAN interfaces are available as an option

Built-in Modulation, Noise Generator, Burst, and Sweep modes for greater versatility Built-in waveforms provide quick access to commonly used signals

Large 3.5 inch color screen displays both graphical and numeric waveform information simultaneously

2U height and half-rack width fits both benchtop and rack-mounted applications

Free ArbExpress software makes waveform editing and downloading extremely easy

Free SignalExpress software combines Tektronix bench instruments into a low-cost solution for automatic testing

Menu and online help in 8 languages
