Tektronix FCA3000
| Atributo | Valor |
|---|---|
| Frecuencia máxima de medición | 3 GHz |
| Resolución de frecuencia | 12 dígitos por segundo |
| Número de canales | 2 canales estándar (3 canales opcional) |
| Sensibilidad de entrada | 20 mV RMS (canales A y B) |
| Impedancia de entrada | 1 MΩ / 50 Ω seleccionable |
| Rango de voltaje de entrada | Hasta 5 V RMS (1 MΩ), hasta 1 V RMS (50 Ω) |
| Tiempo de medición | Hasta 10 mediciones por segundo |
| Funciones de medición | Frecuencia, período, intervalo de tiempo, fase, relación de frecuencia, ancho de pulso y ciclo de trabajo |
| Interfaz de comunicación | GPIB, RS-232 y USB |
| Fuente de alimentación | 100–240 V CA, 50/60 Hz |
Tektronix FCA3000 Options:
- FCA3000 - MS - Medium-stability Oven Time Base
- FCA3000 - HS - High-stability Oven Time Base
- FCA3000 - RP - Rear-panel Connectors
- FCA3000 - A0 - Power Plug, North America
- FCA3000 - A1 - Power Plug, Universal Euro
- FCA3000 - A2 - Power Plug, United Kingdom
- FCA3000 - A3 - Power Plug, Australia
- FCA3000 - A5 - Power Plug, Switzerland
- FCA3000 - A6 - Power Plug, Japan
- FCA3000 - A10 - Power Plug, China
- FCA3000 - A11 - Power Plug, India
- FCA3000 - A12 - Power Plug, Brazil
- FCA3000 - E1 - Power Plug, UK and Euro (FCA3000 and FCA3100 only)
- FCA3000 - C3 - Calibration Service 3 Years
- FCA3000 - C5 - Calibration Service 5 Years
- FCA3000 - D1 - Calibration Data Report
- FCA3000 - R5 - Repair Service 5 Years
- FCA3000 - SILV200 - Standard Warranty Extended to 5 Years (FCA3000, FCA3003, FCA3100, and FCA3103)
| Model | FCA3000 |
|---|

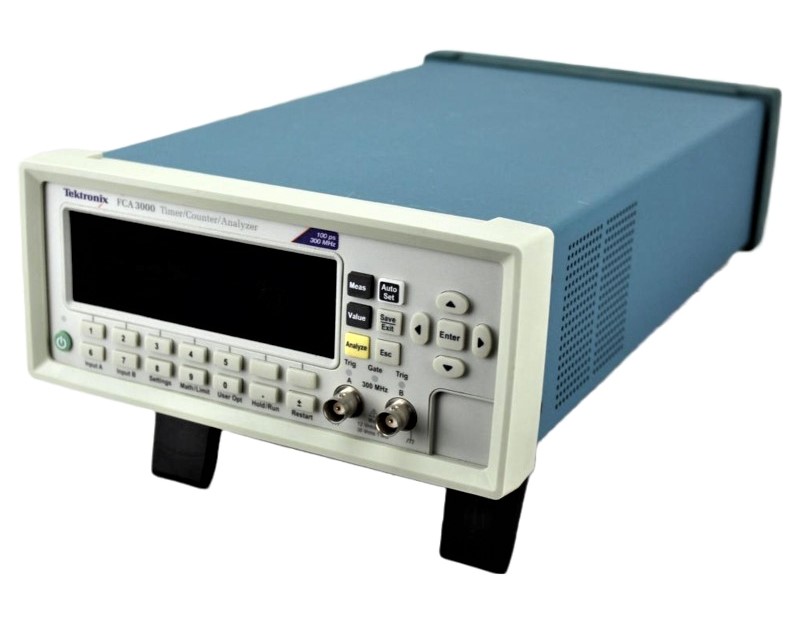

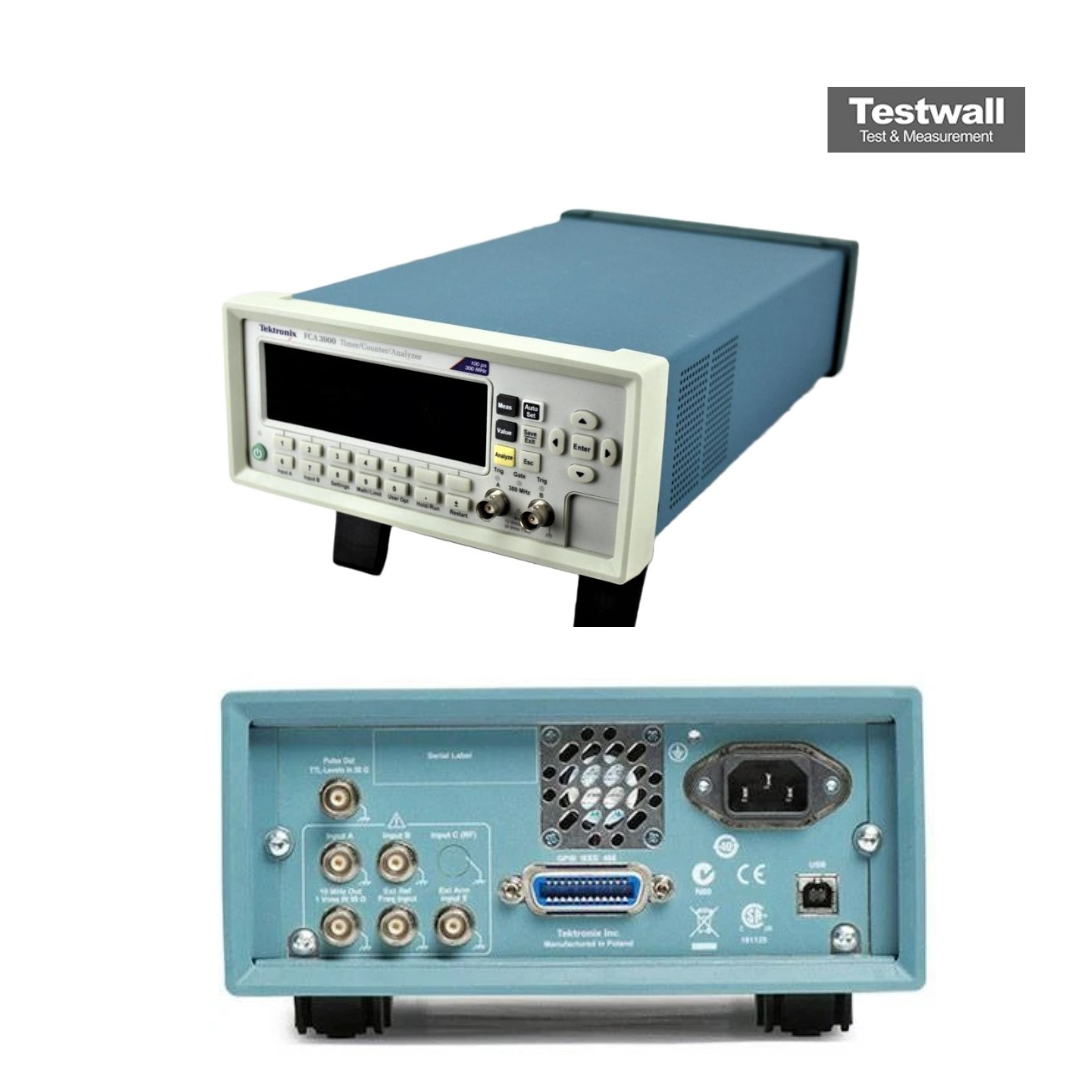

Tektronix FCA3000 Frequency Counter / Analyzer
The Tektronix FCA3000 Frequency Counter/Analyzer offers high-precision measurements in a compact and easy-to-use package. With industry-leading frequency and time resolution, the FCA3000 comes standard with deep internal memory and a fast data transfer rate of 250k Samples/s to internal memory. With the industry's most comprehensive analysis modes, including measurement statistics, histograms, and trend plots, Tektronix FCA3000 Frequency Counter/Analyzer is capable of quickly and accurately analyze your signal.
The Tektronix FCA3000 Frequency Counter/Analyzer offers a zero dead-time measurement technique through the USB/GPIB interfaces with a raw time-stamping function to ensure correct measurements of Allan Deviation. For correct calculation of statistical parameters, the FCA3000 comes with limit-qualifying capability. By setting limits, you can isolate one cluster in your calculation. The FCA Microwave Counter Series offers industry-best throughput, saving up to 90% on testing time. The instrument has a user-friendly interface with a multi-parameter display which shows auxiliary measurements alongside your main measurement to provide you with the results you need at a glance. Its high-precision measurements and advanced analysis functions make Tektronix FCA3000 Frequency Counter/Analyzer an ideal tool for engineers, technicians, and scientists who require accurate frequency and time measurements.
Specifications for the Tektronix FCA3000 Frequency Counter / Analyzer Include:
| Frequency Range | 0.001 Hz to 20 GHz |
| Time Resolution | 100 ps |
| Frequency resolution | 12 Digit/s |
| Voltage Resolution | 3 mV |
