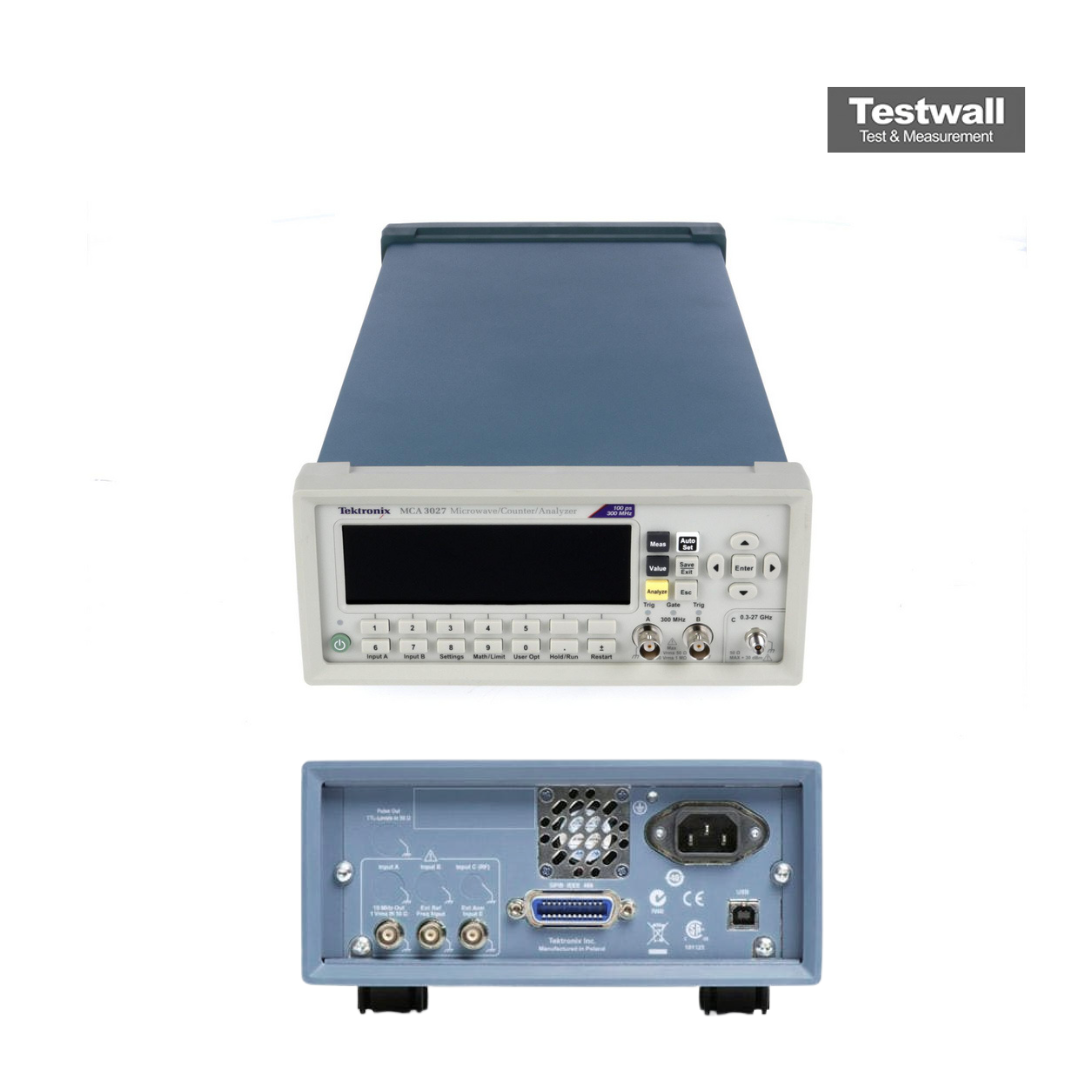

Tektronix MCA3027
| Atributo | Valor |
|---|---|
| Ancho de banda | 27 GHz |
| Número de canales | 2 canales de frecuencia + 1 canal de tiempo |
| Rango de frecuencia | 100 MHz a 27 GHz |
| Resolución de frecuencia | 0,001 Hz |
| Precisión de tiempo (resolución) | 50 fs (femtosegundos) de resolución en medición de tiempo |
| Rango de medición de intervalo de tiempo | Hasta 1000 segundos |
| Sensibilidad de entrada | -30 dBm a 27 GHz |
| Impedancia de entrada | 50 Ω |
| Referencia de frecuencia interna | Oscilador interno de alta estabilidad (OCXO) con envejecimiento de ±0,1 ppb/día |
| Interfaz y conectividad | USB, LAN (LXI), GPIB opcional |
Tektronix MCA3027 Options:
- MCA3027 - HS - High-stability oven time base
- MCA3027 - US - Ultra high-stability oven time base
- MCA3027 - A0 - North America power plug (115 V, 60 Hz)
- MCA3027 - A1 - Universal Euro power plug (220 V, 50 Hz)
- MCA3027 - A2 - United Kingdom power plug (240 V, 50 Hz)
- MCA3027 - A3 - Australia power plug (240 V, 50 Hz)
- MCA3027 - A5 - Switzerland power plug (220 V, 50 Hz)
- MCA3027 - A6 - Japan power plug (100 V, 50/60 Hz)
- MCA3027 - A10 - China power plug (50 Hz)
- MCA3027 - A11 - India power plug (50 Hz)
- MCA3027 - C3 - Calibration Service 3 Years
- MCA3027 - C5 - Calibration Service 5 Years
- MCA3027 - D1 - Calibration Data Report
- MCA3027 - R5 - Repair Service 5 Years (including warranty)
- MCA3027 - SILV600 - Standard warranty extended to 5 years
| Model | MCA3027 |
|---|
Tektronix Power Meter
Tektronix MCA3027 Microwave / Counter Analyzer & Power Meter, 27 GHz
With industry-leading frequency and time resolution, the Tektronix MCA Series comes standard with internal memory, a fast data transfer rate of 250k Samples/s to memory, and an integrated power meter. The multi-parameter display shows auxiliary measurements alongside your main measurement to provide you with the results you need at a glance. With the industry's most comprehensive analysis modes, including measurement statistics, histograms, and trend plots, you have the tools you need to quickly and accurately analyze your signal.
The Tektronix MCA3027 ships with a free copy of the Limited Edition version of SignalExpress for basic instrument control, data logging, and analysis. The optional Professional Edition offers over 200 built-in functions that provide additional signal processing, advanced analysis, sweeping, limit testing, and user-defined step capabilities.
Features and Specifications of the Tektronix MCA3027 includes:
- 300 MHz to 27 GHz
- Microwave analyzer channel with CW or Burst
- Two 300 MHz general-purpose channels
- 100 ps single-shot time resolution
- 12 Digit/s frequency resolution, 14 digit display
- 25 ms (auto) or zero (manual) acquisition Time
- 3 mV voltage resolution
- Optional 1.5×10 €“8 ultra high-stability oven time base
- €“35 dBm to +10 dBm power range
