Tektronix

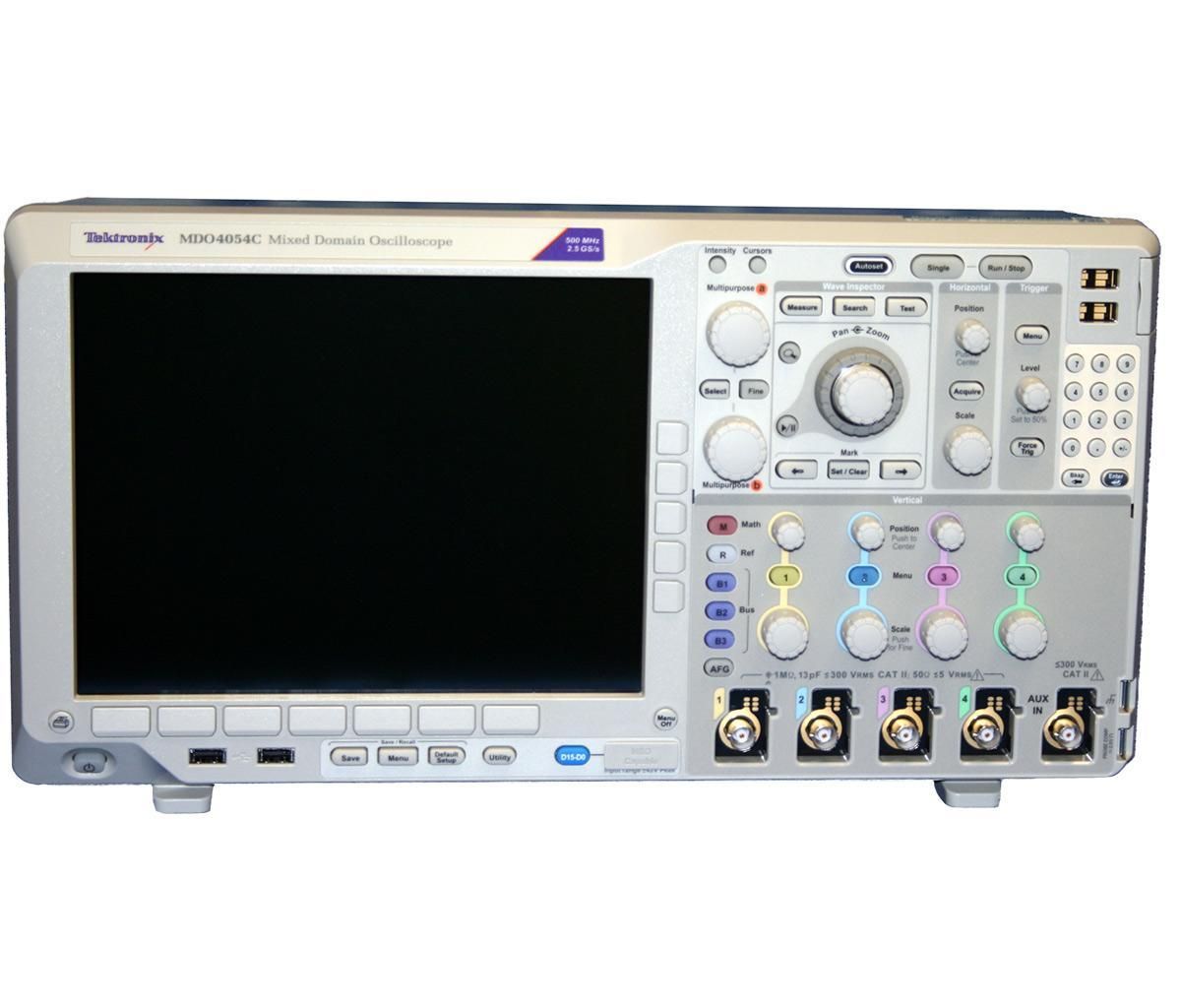

Tektronix MDO4054C
4 Analog Channels 500MHz Bandwidth Models, 16 Digital Channels MagniVu.
500 MHz Ancho de banda
4 Número de canales analógicos
2,5 GS/s Frecuencia de muestreo máxima
20 M puntos Longitud de registro
3 GHz Ancho de banda del analizador de espectro RF
| Atributo | Valor |
|---|---|
| Ancho de banda | 500 MHz |
| Número de canales analógicos | 4 |
| Frecuencia de muestreo máxima | 2,5 GS/s |
| Longitud de registro | 20 M puntos |
| Ancho de banda del analizador de espectro RF | 3 GHz |
| Canales digitales (lógica) | 16 canales digitales (opcional) |
| Tamaño de pantalla | 10,4 pulgadas (pantalla táctil a color) |
| Generador de forma de onda arbitraria (AFG) | Integrado, 50 MHz |
| Resolución vertical | 8 bits |
| Conectividad | USB, LAN (LXI), salida de vídeo |
Tektronix MDO4054C Options:
- MDO4054C - MDO4AFG - Arbitrary function generator with 13 predefined waveforms and arbitrary waveform generation
- MDO4054C - MDO4MSO - 16 digital channels; includes P6616 digital probe and accessories
- MDO4054C - SA3 - Integrated spectrum analyzer with frequency range of 9 kHz to 3 GHz
- MDO4054C - SA6 - Integrated spectrum analyzer with frequency range of 9 kHz to 6 GHz
- MDO4054C - MDO4SEC - Enhanced instrument security to enable password protected control of turning on/off all instrument ports and instrument firmware update functionality
- MDO4054C - Opt. A0 - North America power plug (115 V, 60 Hz)
- MDO4054C - Opt. A1 - Universal Euro power plug (220 V, 50 Hz)
- MDO4054C - Opt. A2 - United Kingdom power plug (240 V, 50 Hz)
- MDO4054C - Opt. A3 - Australia power plug (240 V, 50 Hz)
- MDO4054C - Opt. A5 - Switzerland power plug (220 V, 50 Hz)
- MDO4054C - Opt. A6 - Japan power plug (100 V, 50/60 Hz)
- MDO4054C - Opt. A10 - China power plug (50 Hz)
- MDO4054C - Opt. A11 - India power plug (50 Hz)
- MDO4054C - Opt. A12 - Brazil power plug (60 Hz)
- MDO4054C - Opt. A99 - No power cord
- MDO4054C - Opt. L0 - English front panel label
- MDO4054C - Opt. L1 - French front panel overlay
- MDO4054C - Opt. L2 - Italian front panel overlay
- MDO4054C - Opt. L3 - German front panel overlay
- MDO4054C - Opt. L4 - Spanish front panel overlay
- MDO4054C - Opt. L5 - Japanese front panel overlay
- MDO4054C - Opt. L6 - Portuguese front panel overlay
- MDO4054C - Opt. L7 - Simplified Chinese front panel overlay
- MDO4054C - Opt. L8 - Traditional Chinese front panel overlay
- MDO4054C - Opt. L9 - Korean front panel overlay
- MDO4054C - Opt. L10 - Russian front panel overlay
- MDO4054C - Opt. C3 - Calibration Service 3 Years
- MDO4054C - Opt. C5 - Calibration Service 5 Years
- MDO4054C - Opt. D1 - Calibration Data Report
- MDO4054C - Opt. D3 - Calibration Data Report 3 Years (with Opt. C3)
- MDO4054C - Opt. D5 - Calibration Data Report 5 Years (with Opt. C5)
- MDO4054C - Opt. R5 - Repair Service 5 Years (including warranty)
- MDO4054C - Opt. T3 - Three year total protection plan ensures that your equipment remains like-new regardless of what happens
- MDO4054C - Opt. T5 - Five year total protection plan ensures that your equipment remains like-new regardless of what happens
- MDO4054C - MDO4BW5T104 - Bandwidth upgrade from 500 MHz to 1 GHz (without spectrum analyzer option)
- MDO4054C - MDO4BW5T104-SA - Bandwidth upgrade from 500 MHz to 1 GHz (with spectrum analyzer option SA3 or SA6)
- MDO4054C - MDO4SA3 - Add integrated spectrum analyzer with input frequency range of 9 kHz–3 GHz (post-purchase upgrade)
- MDO4054C - MDO4SA6 - Add integrated spectrum analyzer with input frequency range of 9 kHz–6 GHz (post-purchase upgrade)
- MDO4054C - MDO4SA3T6 - 3 GHz to 6 GHz spectrum analyzer upgrade for MDO4000C
- MDO4054C - MDO4054C-R5DW - Repair service coverage 5 years for a MDO4054C product (includes product warranty period)
- MDO4054C - MDO4000CT3 - Three year total protection plan (available for 30-days following initial purchase)
- MDO4054C - MDO4000CT5 - Five year total protection plan (available for 30-days following initial purchase)
| Model | MDO4054C |
|---|
El osciloscopio de dominio mixto Tektronix MDO4054C ofrece 500 MHz de ancho de banda, muestreo de 2,5 GS/s, 4 canales analógicos y 16 digitales opcionales, y longitud de registro de 20 Mpuntos. El analizador de espectro integrado permite la captura sincronizada de señales analógicas, digitales y RF.
Incluye osciloscopio, analizador lógico y de espectro con funciones matemáticas avanzadas, FFT, histogramas y gráficos para un análisis completo del sistema.
Testwall puede suministrar el Tektronix MDO4054C usado, completamente probado. Con soporte experto y entrega mundial, Testwall garantiza instrumentos de alto rendimiento con fiabilidad y calidad. Contáctenos para reparación o calibración del Tektronix MDO4054C.
