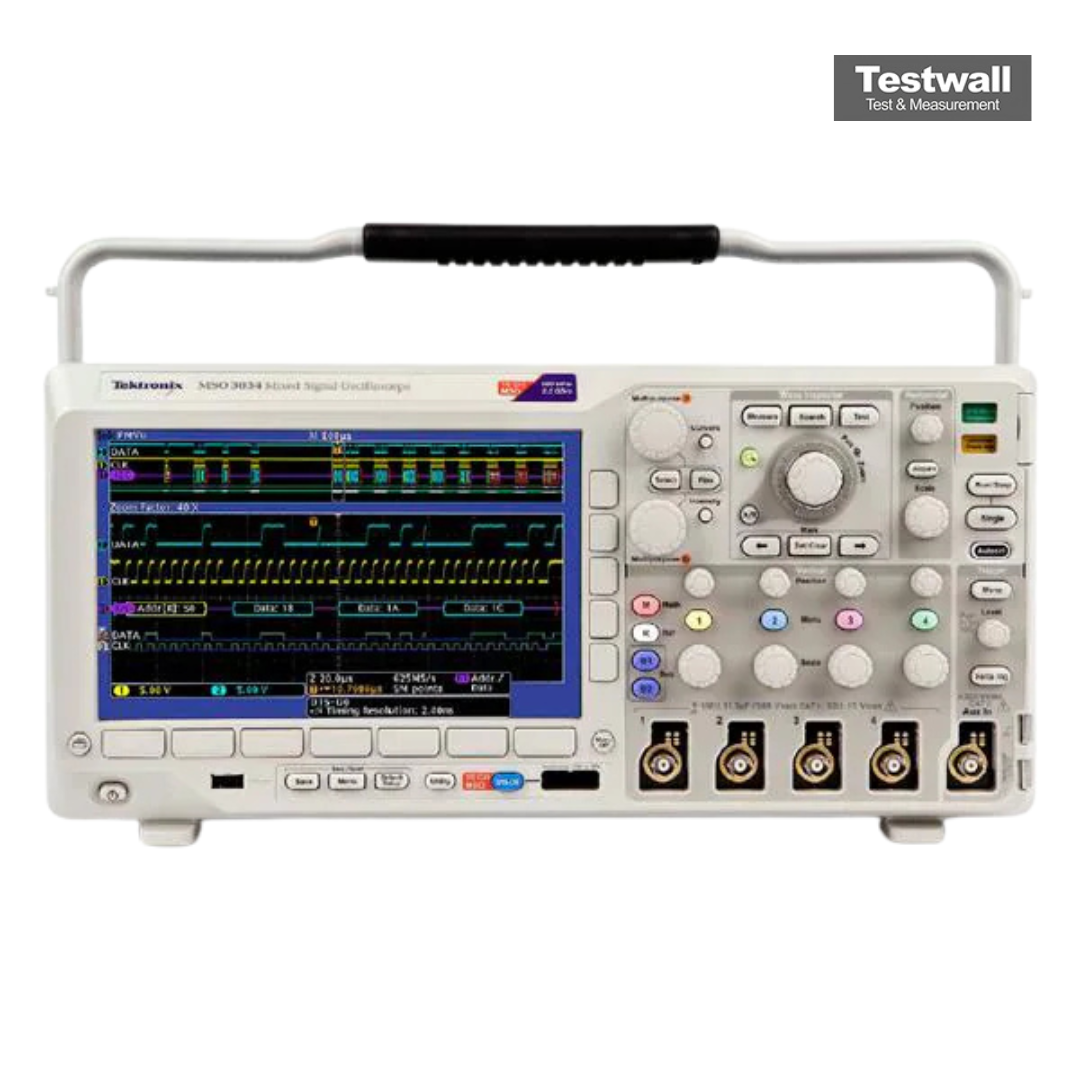

Tektronix MSO3034
Mixed Signal Oscilloscope, 300 MHz 4 + 16 Ch., 2.5 GS/s
300 MHz Ancho de banda
4 Número de canales analógicos
16 Canales digitales
2,5 GS/s Frecuencia de muestreo
5 M puntos Longitud de registro
| Atributo | Valor |
|---|---|
| Ancho de banda | 300 MHz |
| Número de canales analógicos | 4 |
| Canales digitales | 16 |
| Frecuencia de muestreo | 2,5 GS/s |
| Longitud de registro | 5 M puntos |
| Pantalla | Pantalla TFT a color de 7 pulgadas (WVGA) |
| Sensibilidad vertical | 1 mV/div a 10 V/div |
| Tiempo de subida | 1,2 ns |
| Puertos de conectividad | USB, LAN (LXI), puerto de salida auxiliar |
| Tasa de captura de formas de onda | Hasta 50.000 formas de onda por segundo |
Tektronix MSO3034 Options:
- MSO3034 - DPO3AUDIO - Audio Serial Triggering and Analysis Module. Enables triggering on packet-level information on I2S, Left Justified, Right Justified, TDM, and custom audio buses, as well as analytical tools such as digital views of the signal, bus views, packet decoding, search tools, and packet decode tables with time stamp information.
- MSO3034 - DPO3AUTO - Automotive Serial Triggering and Analysis Module. Enables triggering on packet-level information on CAN bus and LIN bus as well as analytical tools such as digital views of the signal, bus views, packet decoding, search tools, and packet decode tables with time stamp information.
- MSO3034 - DPO3COMP - Computer Serial Triggering and Analysis Module. Enables triggering on packet-level information on RS-232/422/485/UART buses as well as analytical tools such as digital views of the signal, bus views, packet decoding, search tools, and packet decode tables with time stamp information.
- MSO3034 - DPO3EMBD - Embedded Serial Triggering and Analysis Module. Enables triggering on packet-level information on I2C and SPI buses as well as analytical tools such as digital views of the signal, bus views, packet decoding, search tools, and packet decode tables with time stamp information.
- MSO3034 - DPO3PWR - Power Analysis Module. Enables quick and accurate analysis of power quality, switching loss, harmonics, safe operating area (SOA), modulation, ripple, and slew rate (dI/dt, dV/dt).
- MSO3034 - DPO3VID - HDTV and Custom (nonstandard) Video Triggering Module.
- MSO3034 - Opt. A0 - Power plug: North America
- MSO3034 - Opt. A1 - Power plug: Universal Euro
- MSO3034 - Opt. A2 - Power plug: United Kingdom
- MSO3034 - Opt. A3 - Power plug: Australia
- MSO3034 - Opt. A5 - Power plug: Switzerland
- MSO3034 - Opt. A6 - Power plug: Japan
- MSO3034 - Opt. A10 - Power plug: China
- MSO3034 - Opt. A11 - Power plug: India
- MSO3034 - Opt. A99 - No power cord
- MSO3034 - Opt. L0 - English manual
- MSO3034 - Opt. L1 - French manual
- MSO3034 - Opt. L2 - Italian manual
- MSO3034 - Opt. L3 - German manual
- MSO3034 - Opt. L4 - Spanish manual
- MSO3034 - Opt. L5 - Japanese manual
- MSO3034 - Opt. L6 - Portuguese manual
- MSO3034 - Opt. L7 - Simplified Chinese manual
- MSO3034 - Opt. L8 - Traditional Chinese manual
- MSO3034 - Opt. L9 - Korean manual
- MSO3034 - Opt. L10 - Russian manual
- MSO3034 - Opt. L99 - No manual
- MSO3034 - Opt. C3 - Calibration Service 3 years
- MSO3034 - Opt. C5 - Calibration Service 5 years
- MSO3034 - Opt. CA1 - Provides a single calibration event, or coverage for the designated calibration interval, whichever comes first
- MSO3034 - Opt. D1 - Calibration Data Report
- MSO3034 - Opt. D3 - Calibration Data Report 3 years (with Opt. C3)
- MSO3034 - Opt. D5 - Calibration Data Report 5 years (with Opt. C5)
- MSO3034 - Opt. R5 - Repair Service 5 years (including warranty)
| Model | MSO3034 |
|---|
El osciloscopio de señal mixta Tektronix MSO3034 ofrece un ancho de banda de 300 MHz, 4 canales analógicos y 16 digitales, muestreo de 2,5 GS/s y profundidad de registro de 5 Mpoints. Incorpora MagniVu™ con resolución de 121,2 ps, controles Wave Inspector® y disparadores avanzados con FFT y 29 mediciones. Conectividad: USB, Ethernet, salida de video.
Ideal para depurar diseños complejos, soporta decodificación serie/paralela, umbrales digitales definidos por el usuario y módulos de aplicación opcionales.
Testwall puede suministrar el Tektronix MSO3034 usado, completamente probado. Con soporte experto y entrega global, Testwall garantiza equipos de alto rendimiento con fiabilidad y calidad de servicio insuperables. Contáctenos para la calibración o reparación del Tektronix MSO3034.
