Tektronix

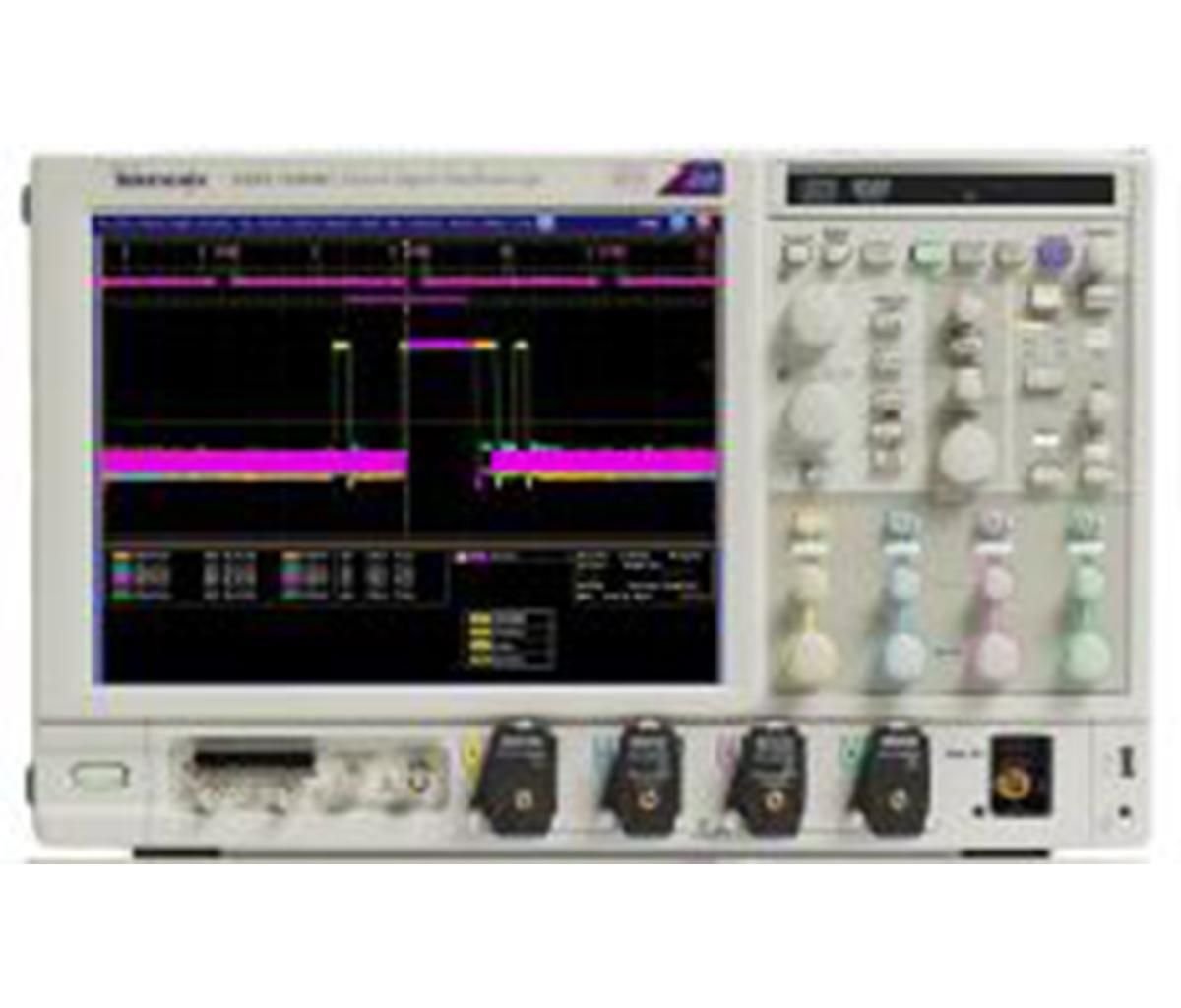

Tektronix MSO72504DX
4+16-CH, DIGITAL, 25GHz Mixed Signal Oscilloscope
25 GHz Ancho de banda
4 canales Canales analógicos
100 GS/s Tasa de muestreo máxima
250 Mpuntos Longitud de registro
8 bits (11 bits en modo de alta resolución) Resolución vertical
| Atributo | Valor |
|---|---|
| Ancho de banda | 25 GHz |
| Canales analógicos | 4 canales |
| Tasa de muestreo máxima | 100 GS/s |
| Longitud de registro | 250 Mpuntos |
| Resolución vertical | 8 bits (11 bits en modo de alta resolución) |
| Canales digitales | 16 canales digitales (MSO) |
| Pantalla | Pantalla táctil LCD de 15,3 pulgadas (XGA) |
| Sensibilidad de entrada | 1 mV/div a 10 V/div |
| Impedancia de entrada | 50 Ω / 1 MΩ |
| Sistema operativo | Windows 7 de 64 bits |
Tektronix MSO72504DX Options:
- MSO72504DX - Opt. 5XL - 62.5 MS/Ch (Standard on MSO models)
- MSO72504DX - Opt. 10XL - 125 MS/Ch
- MSO72504DX - Opt. 20XL - 250 MS/Ch (For models of bandwidth ≥12.5 GHz only)
- MSO72504DX - Opt. 50XL - 500 MS/Ch on 4 channels, 1 G/Ch on 2 channels (DX models only)
- MSO72504DX - Opt. SSD - Additional Removable Disk – Solid State Drive (Standard on DX models)
- MSO72504DX - Opt. LT - Waveform Limit Testing
- MSO72504DX - Opt. MTH - Mask Testing for Serial Standards. Includes hardware clock recovery for up to 3.125 Gb/s (standard on MSO models)
- MSO72504DX - Opt. ST6G - Protocol Triggering and Decoding for 8b/10b-encoded Serial Signals (Up to 6.25 Gb/s). Includes hardware clock recovery and pattern lock triggering (standard on MSO models)
- MSO72504DX - Opt. D-PHY - MIPI® D-PHY Essentials – Characterization and Analysis Solution (Requires Opt. DJA)
- MSO72504DX - Opt. DDRA - DDR Memory Bus Analysis (Requires Opt. DJA)
- MSO72504DX - Opt. DJA - DPOJET Advanced Jitter and Eye Diagram Analysis (standard on MSO models)
- MSO72504DX - Opt. DP12 - DisplayPort 1.2 Source Test Automation Software (Requires Opt. DJA) (Requires Opt. 5XL or higher)
- MSO72504DX - Opt. DSA - Digital Serial Analysis Bundle (includes 5XL, DJA, MTH, ST6G)
- MSO72504DX - Opt. ERRDT - Frame and Bit Error Rate Detector for High-speed Serial Standards (Requires Opt. ST6G)
- MSO72504DX - Opt. ET3 - Ethernet Compliance Test Software (Requires Ethernet Test Fixture)
- MSO72504DX - Opt. FC-16G - Fiber Channel - 16G DPOJET Essentials
- MSO72504DX - Opt. HSIC - HSIC Essentials - Electrical Validation and Protocol Decode Solution (Requires Opt. DJA)
- MSO72504DX - Opt. HT3 - HDMI Compliance Test Software
- MSO72504DX - Opt. HT3DS - HDMI Direct Synthesis for HDMI 1.4
- MSO72504DX - Opt. MHD - MHL Advanced Analysis and Compliance Software (Requires Opt. DJA and Opt 2XL or higher)
- MSO72504DX - Opt. MOST - Electrical Compliance and Debug Test Solution for MOST50 and MOST150 (Requires Opt. DJA)
- MSO72504DX - Opt. M-PHY - MIPI® M-PHY Essentials – Characterization and Analysis Solution (Requires Opt. DJA)
- MSO72504DX - Opt. M-PHYTX - M-PHY Automated Transmitter Solution (Requires Opt. DJA)
- MSO72504DX - Opt. M-PHYRX - M-PHY Automated Receiver Solution (Requires Opt. ST6G) (Requires Opt. ERRDT)
- MSO72504DX - Opt. PCE3 - PCI Express® Transmitter Compliance and Debug (Requires Opt. DJA) (For models of bandwidth ≥6 GHz only)
- MSO72504DX - Opt. PWR - Power Measurement and Analysis Software
- MSO72504DX - Opt. SAS3 - SAS3 12 GB/s Essentials (Requires Opt. DJA and 2XL or higher) (For models of bandwidth ≥20 GHz only)
- MSO72504DX - Opt. SFP-TX - SFP+ Compliance and Debug Solution (Requires Opt. DJA)
- MSO72504DX - Opt. SFP-WDP - SFP+ Compliance and Debug Solution – WDP Measurement (Requires Opt. DJA)
- MSO72504DX - Opt. SDLA64 - Serial Data Link Analysis Visualizer
- MSO72504DX - Opt. SR-AERO - Aerospace Serial Triggering and Analysis (MIL-STD-1553B)
- MSO72504DX - Opt. SR-AUTO - Automotive Serial Triggering and Analysis (CAN/LIN/FlexRay)
- MSO72504DX - Opt. SR-COMP - Computer Serial Triggering and Analysis (RS-232/422/485/UART)
- MSO72504DX - Opt. SR-CUST - Custom Serial Analysis (standard on all models)
- MSO72504DX - Opt. SR-DPHY - MIPI® D-PHY (DSI / CSI2) Serial Analysis
- MSO72504DX - Opt. SR-EMBD - Embedded Serial Triggering and Analysis (I2C, SPI) (standard on MSO models)
- MSO72504DX - Opt. SR-ENET - Ethernet Serial Analysis (10BASE-T and 100BASE-TX)
- MSO72504DX - Opt. SR-PCIE - PCI Express Serial Analysis
- MSO72504DX - Opt. SR-USB - USB Serial Triggering and Analysis
- MSO72504DX - Opt. SVA - AM/FM/PM Audio Signal Analysis (Requires Opt. SVE)
- MSO72504DX - Opt. SVE - SignalVu® Essentials – Vector Signal Analysis Software
- MSO72504DX - Opt. SVM - General Purpose Modulation Analysis (Requires Opt. SVE)
- MSO72504DX - Opt. SVO - Flexible OFDM Analysis (Requires Opt. SVE)
- MSO72504DX - Opt. SVP - Advanced Signal Analysis (including pulse measurements) (Requires Opt. SVE)
- MSO72504DX - Opt. SVT - Frequency and Phase Settling Time Measurements (Requires Opt. SVE)
- MSO72504DX - Opt. TBT-TX - Thunderbolt Transmitter Characterization, Debug, and Compliance Testing (Requires Opt. DJA and Opt. 2XL or higher) (For models of bandwidth ≥16 GHz only)
- MSO72504DX - Opt. UHS2 - UHS-II-Host-Tx and UHS-ii-Device-Tx Measurements (For models of bandwidth ≥6 GHz only)
- MSO72504DX - Opt. USB - USB 2.0 Compliance Test Software (Requires TDSUSBF USB Test Fixture)
- MSO72504DX - Opt. USBHSIC - USB2.0 and HSIC Bundle, includes options Opt. DJA, HSIC, SR-USB, and USB
- MSO72504DX - Opt. USB3 - USB 3.0 Compliance and Analysis Software (Requires Opt. DJA) (For models of bandwidth ≥8 GHz only)
- MSO72504DX - Opt. VET - Visual Trigger
- MSO72504DX - Opt. 10G-KR - 10GBASE-KR/KR4 Compliance and Debug Solution (Requires Opt. DJA) (For models of bandwidth ≥16 GHz only)
- MSO72504DX - Opt. C3 - Calibration Service 3 Years
- MSO72504DX - Opt. C5 - Calibration Service 5 Years
- MSO72504DX - Opt. D1 - Calibration Data Report
- MSO72504DX - Opt. D3 - Calibration Data Report 3 Years (with Opt. C3)
- MSO72504DX - Opt. D5 - Calibration Data Report 5 Years (with Opt. C5)
- MSO72504DX - Opt. G3 - Complete Care 3 Years (includes loaner, scheduled calibration, and more)
- MSO72504DX - Opt. G5 - Complete Care 5 Years (includes loaner, scheduled calibration, and more)
- MSO72504DX - Opt. R3 - Repair Service 3 Years (including warranty)
- MSO72504DX - Opt. R5 - Repair Service 5 Years (including warranty)
- MSO72504DX - Opt. L0 - English manual
- MSO72504DX - Opt. L1 - French manual
- MSO72504DX - Opt. L3 - German manual
- MSO72504DX - Opt. L5 - Japanese manual
- MSO72504DX - Opt. L7 - Simplified Chinese manual
- MSO72504DX - Opt. L8 - Traditional Chinese manual
- MSO72504DX - Opt. L9 - Korean manual
- MSO72504DX - Opt. L10 - Russian manual
- MSO72504DX - Opt. L99 - No manual
- MSO72504DX - Opt. A0 - North America power plug (115 V, 60 Hz)
- MSO72504DX - Opt. A1 - Universal Euro power plug (220 V, 50 Hz)
- MSO72504DX - Opt. A2 - United Kingdom power plug (240 V, 50 Hz)
- MSO72504DX - Opt. A3 - Australia power plug (240 V, 50 Hz)
- MSO72504DX - Opt. A5 - Switzerland power plug (220 V, 50 Hz)
- MSO72504DX - Opt. A6 - Japan power plug (100 V, 110/120 V, 60 Hz)
- MSO72504DX - Opt. A10 - China power plug (50 Hz)
- MSO72504DX - Opt. A11 - India power plug (50 Hz)
- MSO72504DX - Opt. A12 - Brazil power plug (60 Hz)
- MSO72504DX - Opt. A99 - No power cord
| Model | MSO72504DX |
|---|
El Tektronix MSO72504DX es un osciloscopio mixto de alto rendimiento con ancho de banda analógico de 25 GHz, 4 canales analógicos, 16 digitales y muestreo de 100 GS/s. Tiempo de subida: 16 ps (10–90 %) y 12 ps (20–80 %).
Con puertos USB 2.0 delanteros y traseros, puerto Ethernet y salida de vídeo, es ideal para pruebas de producción y desarrollo.
Testwall puede suministrar el Tektronix MSO72504DX usado, completamente probado. Con soporte experto y entrega global, garantiza fiabilidad y rendimiento. Contáctenos para calibración o reparación del Tektronix MSO72504DX.
