Tektronix P7630
| Atributo | Valor |
|---|---|
| Ancho de banda | 6 GHz |
| Tecnología de conexión | TriMode (compatible con conectores SMA, MMCX y puntas de prueba) |
| Impedancia de entrada | 50 Ω |
| Tensión máxima de entrada | ±2,5 V (modo diferencial) |
| Atenuación | 12,5:1 |
| Tiempo de subida | 58 ps |
| Compatibilidad con osciloscopio | Osciloscopios Tektronix con conector TekConnect |
| Rango de temperatura de funcionamiento | 0 °C a +50 °C |
| Longitud del cable | 1,2 m |
| Tipo de sonda | Sonda diferencial de alta velocidad |
Tektronix P7630 Options:
- P7630 - Opt. C3 - Calibration Service 3 Years
- P7630 - Opt. C5 - Calibration Service 5 Years
- P7630 - Opt. D3 - Calibration Data Report 3 Years (with Opt. C3)
- P7630 - Opt. D5 - Calibration Data Report 5 Years (with Opt. C5)
- P7630 - Opt. G3 - Complete Care 3 Years (includes loaner, scheduled calibration, and more)
- P7630 - Opt. G5 - Complete Care 5 Years (includes loaner, scheduled calibration, and more)
- P7630 - Opt. R3 - Repair Service 3 Years (including warranty)
- P7630 - Opt. R3DW - Repair Service Coverage 3 Years (includes product warranty period). 3-year period starts at time of instrument purchase
- P7630 - Opt. R5 - Repair Service 5 Years (including warranty)
- P7630 - Opt. R5DW - Repair Service Coverage 5 Years (includes product warranty period). 5-year period starts at time of instrument purchase
| Model | P7630 |
|---|

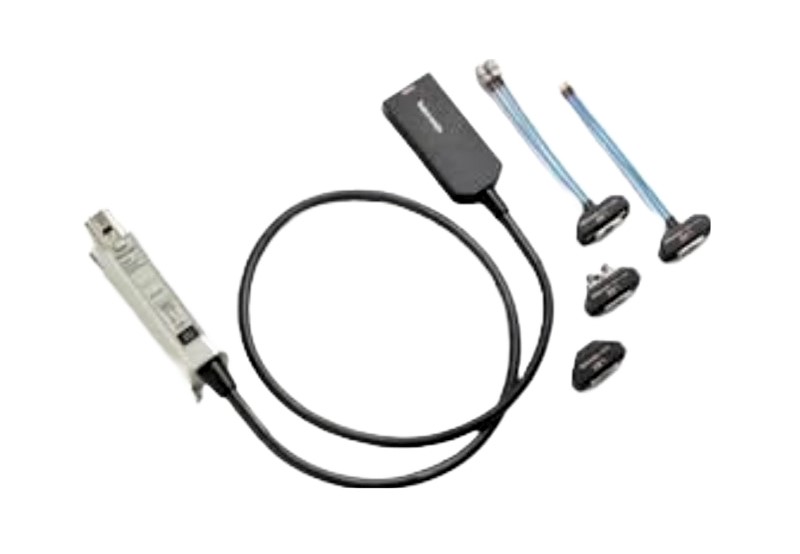

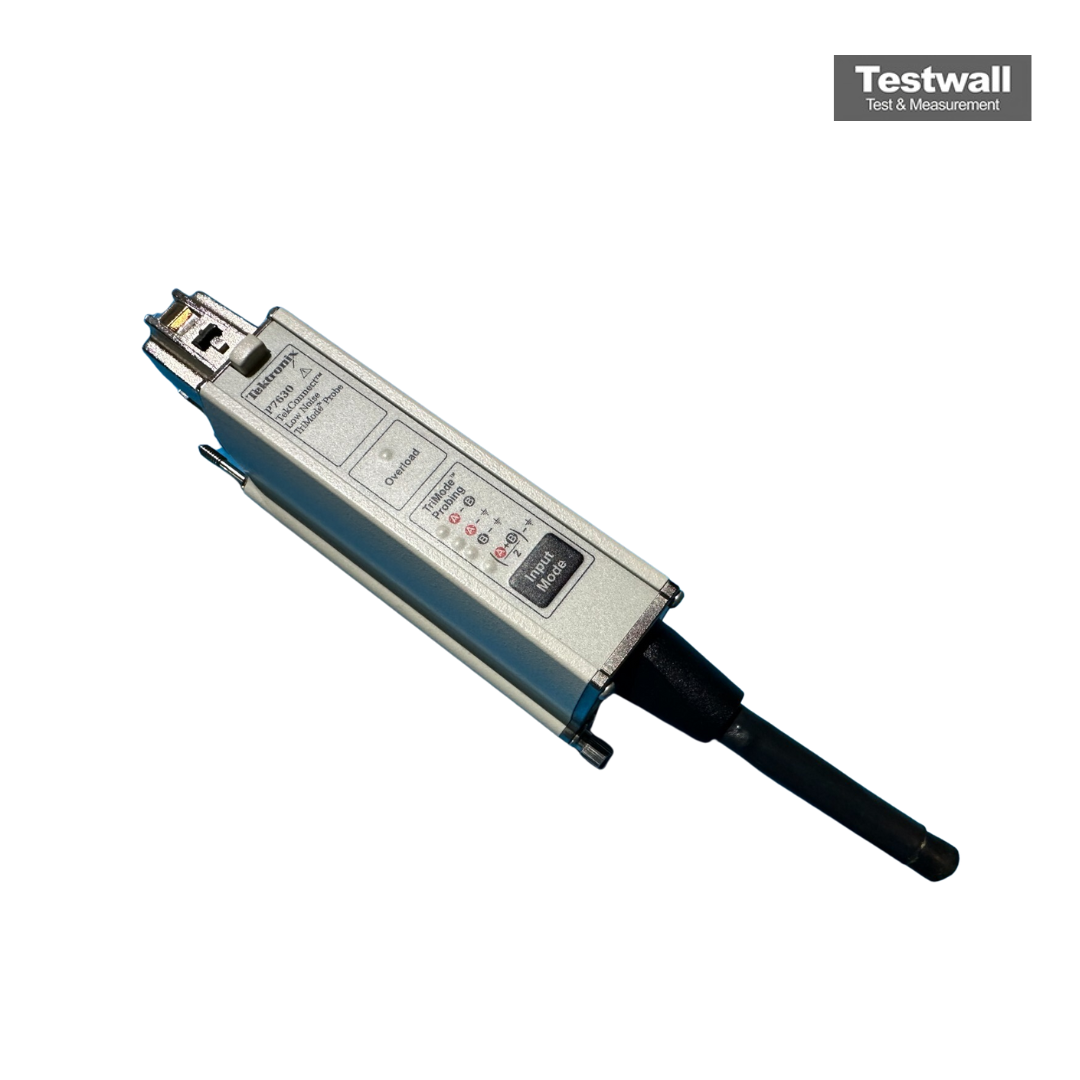

Tektronix P7630 TriMode Probe
The Tektronix P7630 TriMode Probe is a high-performance probe designed for use with high-speed oscilloscopes to deliver the industry's lowest system noise levels and to measure and analyze signals in electronic circuits. It has a bandwidth of up to 25 GHz and supports differential, single-ended, and common mode measurements. One of the unique features of the Tektronix P7630 TriMode Probe is its ability to switch between differential, single-ended, and common mode measurements without requiring a change of probes.
The Tektronix P7630 TriMode Probe is designed to deliver superior sensitivity and allow the oscilloscope to directly measure small signals without using a zoom function. The P7600 Series probes feature an Automatic Adapter ID function that recognizes the attached adapter and automatically applies the correct DSP filters that eliminate imperfections in the frequency response all the way to the probe tip. Coaxial adapters enable the probe to act like a differential input channel for the oscilloscope which effectively doubles the number of differential signals a single oscilloscope can measure simultaneously. Unique DSP filters can be created, from probe-specific S-parameters data stored in Tektronix P7630 TriMode Probe.
Specifications for the Tektronix P7630 TriMode Probe Include:
| Bandwidth | 30 GHz |
| Rise time (10-90%) (typical) | 16ps |
| Operating voltage window | -5 V to +5 V |
| Offset voltage range | -4 V to +4 V |
