Tektronix RSA306B
6.2GHz USB Real Time Signal Analyzer, Type N (f)
9 kHz – 6,2 GHz Rango de frecuencia
40 MHz Ancho de banda de análisis en tiempo real
-160 dBm/Hz (típico) Nivel de ruido promedio mostrado (DANL)
70 dB Rango dinámico
+20 dBm Nivel máximo de entrada
| Atributo | Valor |
|---|---|
| Rango de frecuencia | 9 kHz – 6,2 GHz |
| Ancho de banda de análisis en tiempo real | 40 MHz |
| Nivel de ruido promedio mostrado (DANL) | -160 dBm/Hz (típico) |
| Rango dinámico | 70 dB |
| Nivel máximo de entrada | +20 dBm |
| Interfaz de conexión | USB 3.0 |
| Precisión de frecuencia | ±1 ppm |
| Rango de temperatura de funcionamiento | 0 °C a +50 °C |
| Dimensiones (An x Al x Pr) | 158 mm x 56 mm x 26 mm |
| Peso | 0,49 kg |
Tektronix RSA306B Options:
- RSA306B - CTRL-G1-B - Portable controller, Brazil power
- RSA306B - FZ-G1 - Portable controller, China power
- RSA306B - CTRL-G1-E - Portable controller, Europe power
- RSA306B - CTRL-G1-I - Portable controller, India power
- RSA306B - CTRL-G1-N - Portable controller, North America power
- RSA306B - CTRL-G1-U - Portable controller, UK power
- RSA306B - C3 - Calibration Service 3 Years
- RSA306B - C5 - Calibration Service 5 Years
- RSA306B - D1 - Calibration Data Report
- RSA306B - D3 - Calibration Data Report 3 Years (with Opt. C3)
- RSA306B - D5 - Calibration Data Report 5 Years (with Opt. C5)
- RSA306B - R3 - Repair Service 3 Years (including warranty)
- RSA306B - R5 - Repair Service 5 Years (including warranty)
- RSA306B - SVANL-SVPC - AM/FM/PM/Direct Audio analysis (Node-locked)
- RSA306B - SVAFL-SVPC - AM/FM/PM/Direct Audio analysis (Floating)
- RSA306B - SVTNL-SVPC - Settling Time (frequency and phase) measurements (Node-locked)
- RSA306B - SVTFL-SVPC - Settling Time (frequency and phase) measurements (Floating)
- RSA306B - SVMNL-SVPC - General Purpose Modulation analysis, acquisition bandwidth ≤40 MHz (Node-locked)
- RSA306B - SVMFL-SVPC - General Purpose Modulation analysis, acquisition bandwidth ≤40 MHz (Floating)
- RSA306B - SVPNL-SVPC - Pulse Analysis, acquisition bandwidth ≤40 MHz (Node-locked)
- RSA306B - SVPFL-SVPC - Pulse Analysis, acquisition bandwidth ≤40 MHz (Floating)
- RSA306B - SVONL-SVPC - Flexible OFD analysis (Node-locked)
- RSA306B - SVOFL-SVPC - Flexible OFD analysis (Floating)
- RSA306B - SV23NL-SVPC - WLAN 802.11a/b/g/j/p measurement (Node-locked)
- RSA306B - SV23FL-SVPC - WLAN 802.11a/b/g/j/p measurement (Floating)
- RSA306B - SV24NL-SVPC - WLAN 802.11n measurement, requires SV23 (Node-locked)
- RSA306B - SV24FL-SVPC - WLAN 802.11n measurement, requires SV23 (Floating)
- RSA306B - SV25NL-SVPC - WLAN 802.11ac measurement, acquisition bandwidth ≤40 MHz, requires SV23 and SV24 (Node-locked)
- RSA306B - SV25FL-SVPC - WLAN 802.11ac measurement, acquisition bandwidth ≤40 MHz, requires SV23 and SV24 (Floating)
- RSA306B - SV26NL-SVPC - APCO P25 measurement (Node-locked)
- RSA306B - SV26FL-SVPC - APCO P25 measurement (Floating)
- RSA306B - SV27NL-SVPC - Bluetooth measurement, acquisition bandwidth ≤40 MHz (Node-locked)
- RSA306B - SV27FL-SVPC - Bluetooth measurement, acquisition bandwidth ≤40 MHz (Floating)
- RSA306B - MAPNL-SVPC - Mapping (Node-locked)
- RSA306B - MAPFL-SVPC - Mapping (Floating)
- RSA306B - SV56NL-SVPC - Playback of recorded files (Node-locked)
- RSA306B - SV56FL-SVPC - Playback of recorded files (Floating)
- RSA306B - CONNL-SVPC - SignalVu-PC live link to RSA306B and MDO4000B/C series mixed-domain oscilloscopes (Node-locked)
- RSA306B - CONFL-SVPC - SignalVu-PC live link to RSA306B and MDO4000B/C series mixed-domain oscilloscopes (Floating)
- RSA306B - SV2CNL-SVPC - WLAN 802.11a/b/g/j/p/n/ac and live link to MDO4000B, acquisition bandwidth ≤40 MHz (Node-locked)
- RSA306B - SV2CFL-SVPC - WLAN 802.11a/b/g/j/p/n/ac and live link to MDO4000B, acquisition bandwidth ≤40 MHz (Floating)
- RSA306B - SV28NL-SVPC - LTE Downlink RF measurement, acquisition bandwidth ≤40 MHz (Node-locked)
- RSA306B - SV28FL-SVPC - LTE Downlink RF measurement, acquisition bandwidth ≤40 MHz (Floating)
- RSA306B - SV54NL-SVPC - Signal survey and classification (Node-locked)
- RSA306B - SV54FL-SVPC - Signal survey and classification (Floating)
- RSA306B - EDUFL-SVPC - Education-only version of all modules for SignalVu-PC (Floating)
| Model | RSA306B |
|---|

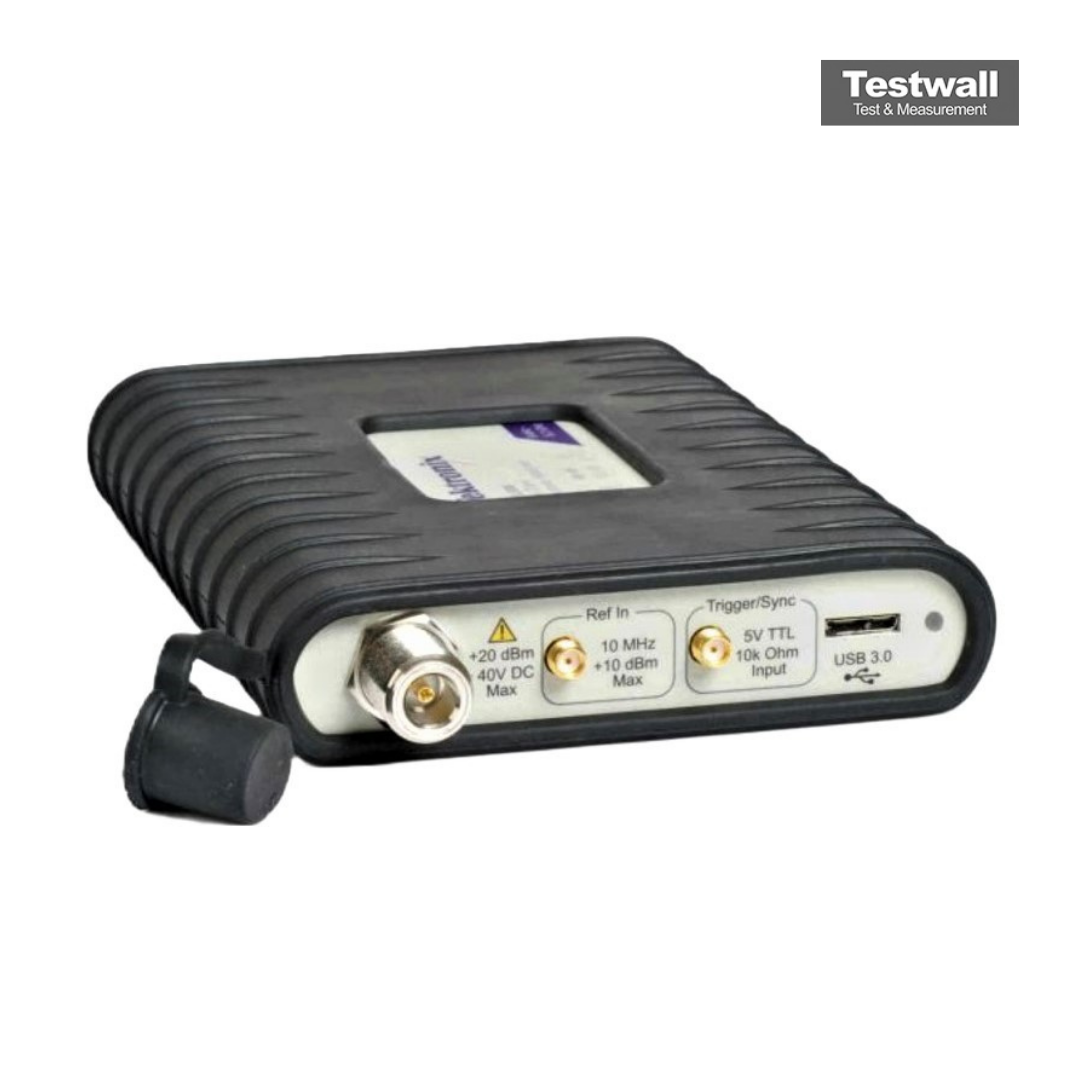

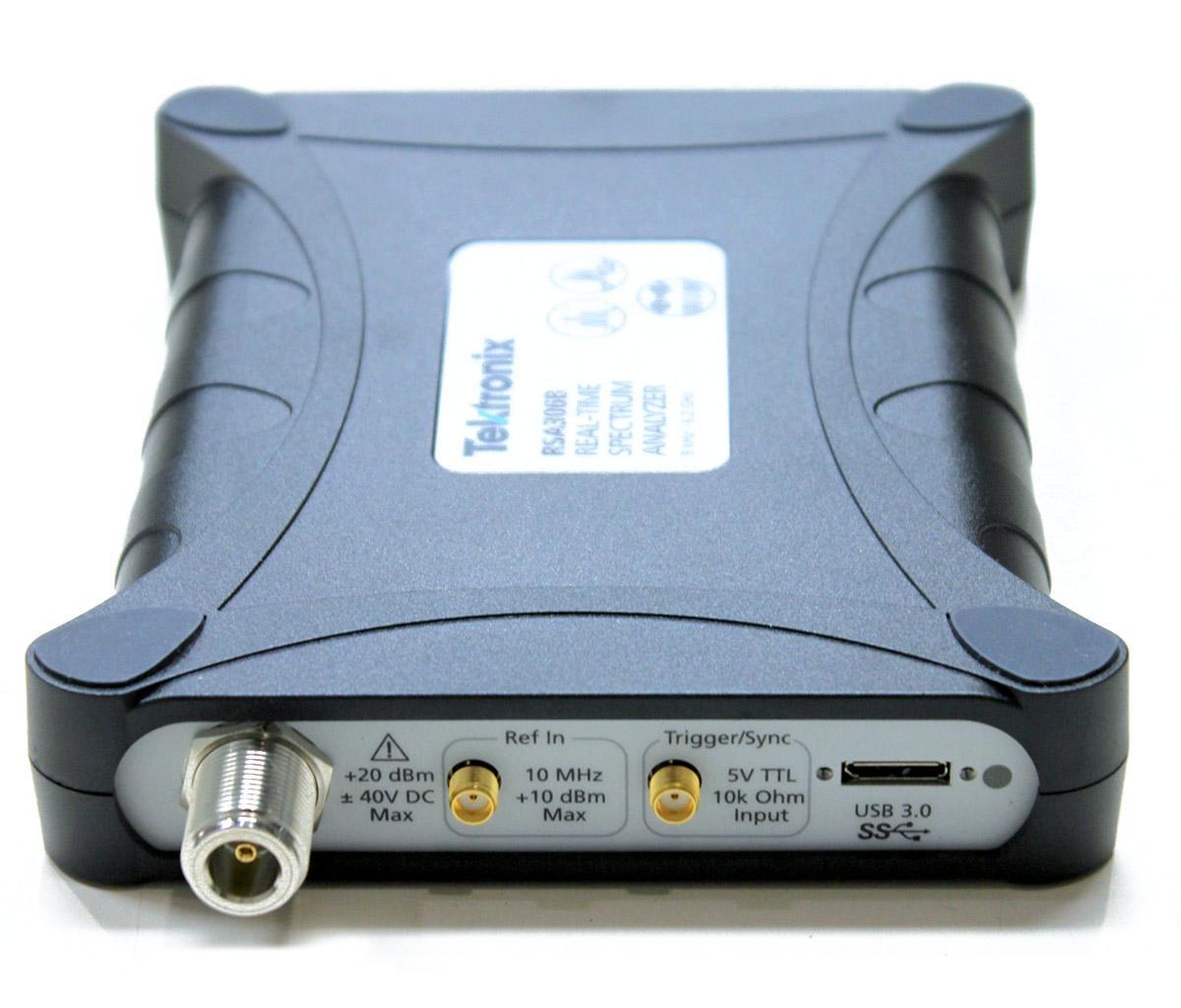

El Analizador de Espectro USB Tektronix RSA306B cubre un rango de frecuencias de 9 kHz a 6,2 GHz, con un ancho de banda en tiempo real de 40 MHz, conectores RF tipo N y un SFDR típico de 60 dBc. La duración mínima del evento para 100 % POI es de 15 μs. Se conecta vía USB a un PC con software SignalVu-PC™.
Diseñado para uso en campo, fábrica o entornos académicos, separa la adquisición de señales del procesamiento, permitiendo actualizaciones sencillas.
Testwall puede suministrar el Tektronix RSA306B usado, totalmente probado. Con soporte experto y entrega global, Testwall garantiza instrumentación de alto rendimiento con fiabilidad y calidad de servicio incomparables. Contáctenos para calibración o reparación del Tektronix RSA306B.
