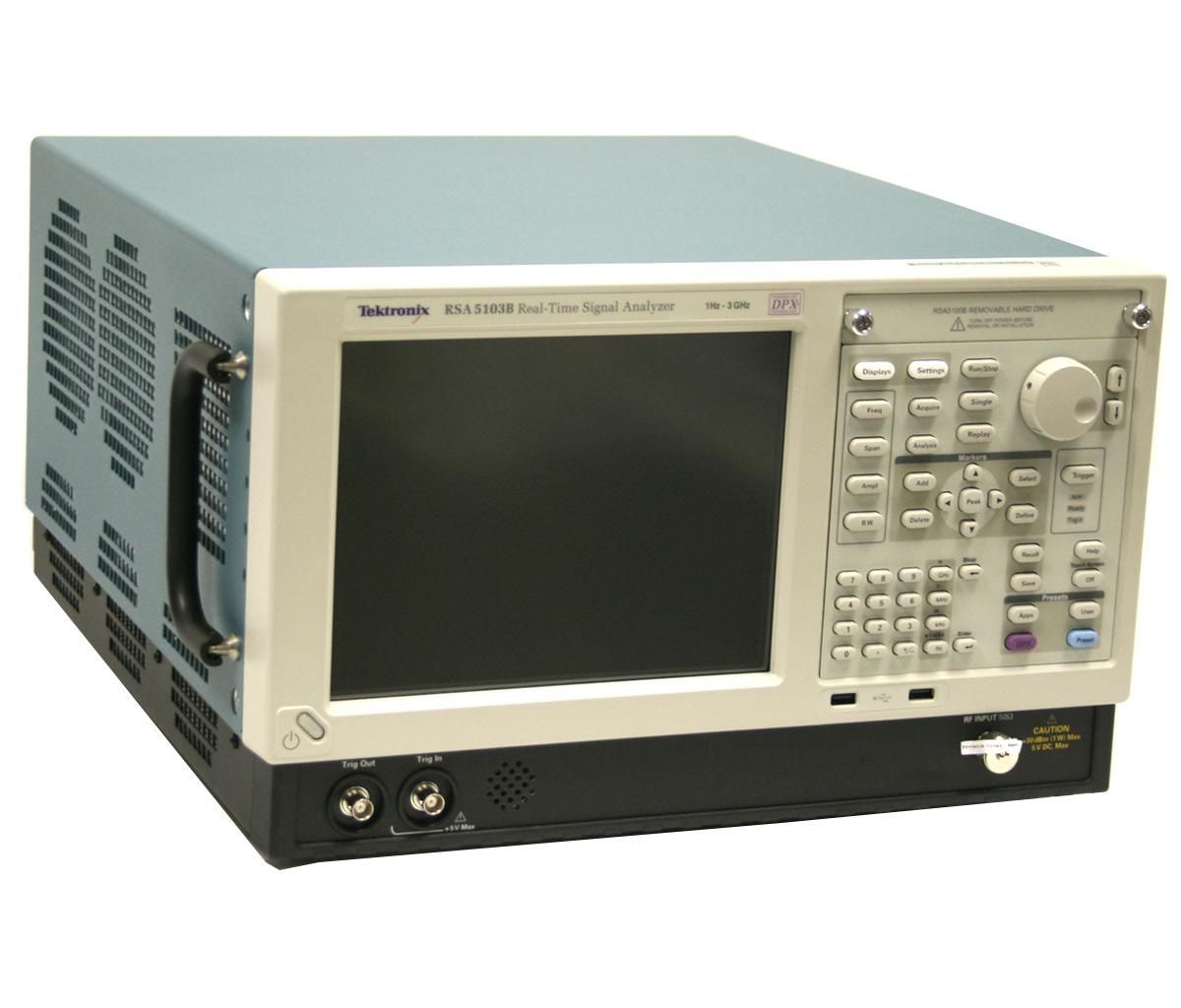

Tektronix RSA5103B 3 GHz Real Time Spectrum Analyzer, Type N (f)
3 GHz Real Time Spectrum Analyser, Type N (f)
1 Hz – 3 GHz Rango de frecuencia
110 MHz Ancho de banda de análisis en tiempo real
+30 dBm a -160 dBm Rango de amplitud
-163 dBm/Hz (con preamp activado) Nivel de ruido promedio mostrado (DANL)
-106 dBc/Hz a 10 kHz de separación Fase de ruido
| Atributo | Valor |
|---|---|
| Rango de frecuencia | 1 Hz – 3 GHz |
| Ancho de banda de análisis en tiempo real | 110 MHz |
| Rango de amplitud | +30 dBm a -160 dBm |
| Nivel de ruido promedio mostrado (DANL) | -163 dBm/Hz (con preamp activado) |
| Fase de ruido | -106 dBc/Hz a 10 kHz de separación |
| Tipo de conector de entrada RF | Type N (hembra) |
| Resolución de ancho de banda (RBW) | 1 Hz – 3 MHz |
| Velocidad de captura de eventos en tiempo real | 292.000 fotogramas por segundo |
| Impedancia de entrada | 50 Ohmios |
| Pantalla | Monitor LCD de 15 pulgadas XGA |
Tektronix RSA5103B 3 GHz Real Time Spectrum Analyzer, Type N (f) Options:
- RSA5103B - Opt. B25 - 25 MHz Acquisition Bandwidth (no-cost option)
- RSA5103B - Opt. B40 - 40 MHz Acquisition Bandwidth
- RSA5103B - Opt. B85 - 85 MHz Acquisition Bandwidth
- RSA5103B - Opt. B125 - 125 MHz Acquisition Bandwidth
- RSA5103B - Opt. B16x - 165 MHz Acquisition Bandwidth
- RSA5103B - Opt. B85HD - 85 MHz Acquisition Bandwidth, High Dynamic Range
- RSA5103B - Opt. B125HD - 125 MHz Acquisition Bandwidth, High Dynamic Range
- RSA5103B - Opt. B16xHD - 165 MHz Acquisition Bandwidth, High Dynamic Range
- RSA5103B - Opt. 300 - High Performance Real Time (Opt. 09 needed for performance improvement)
- RSA5103B - Opt. 09 - Enhanced Real Time
- RSA5103B - Opt. 10 - AM/FM/PM Modulation and Audio Measurements
- RSA5103B - Opt. 11 - Phase Noise / Jitter Measurement
- RSA5103B - Opt. 12 - Settling Time (Frequency and Phase)
- RSA5103B - Opt. 14 - Noise Figure and Gain (Internal preamp recommended)
- RSA5103B - Opt. 20 - Pulse Measurements
- RSA5103B - Opt. 21 - General Purpose Modulation Analysis
- RSA5103B - Opt. 22 - Flexible OFDM Analysis
- RSA5103B - Opt. 23 - WLAN 802.11a/b/g/j/p Measurement Application
- RSA5103B - Opt. 24 - WLAN 802.11n Measurement Application (requires Opt. 23)
- RSA5103B - Opt. 25 - WLAN 802.11ac Measurement Application (requires Opt. 24)
- RSA5103B - Opt. 26 - APCO P25 Measurement Application
- RSA5103B - Opt. 27 - Bluetooth Basic LE Tx Measurements
- RSA5103B - Opt. 28 - LTE Downlink RF Measurements
- RSA5103B - Opt. MAP - Mapping and Signal Strength
- RSA5103B - Opt. 50 - Internal Preamp, 1 MHz to 3 GHz (RSA5103B only)
- RSA5103B - Opt. 53 - Memory Extension, 4 GB Acquisition Memory Total
- RSA5103B - Opt. 56 - Removable SSD, incompatible with Opt. 59
- RSA5103B - Opt. 59 - Internal HDD, incompatible with Opt. 56 (no cost option)
- RSA5103B - Opt. 65 - Digital I and Q Outputs
- RSA5103B - Opt. 66 - Zero-Span Analog Output
- RSA5103B - Opt. 6566 - Digital I and Q Outputs and Zero-Span Analog Output
- RSA5103B - Opt. PFR - Precision Frequency Reference
- RSA5103B - Opt. A0 - North America Power Plug (115 V, 60 Hz)
- RSA5103B - Opt. A1 - Universal Euro Power Plug (220 V, 50 Hz)
- RSA5103B - Opt. A2 - United Kingdom Power Plug (240 V, 50 Hz)
- RSA5103B - Opt. A3 - Australia Power Plug (240 V, 50 Hz)
- RSA5103B - Opt. A4 - North America Power Plug (240 V, 50 Hz)
- RSA5103B - Opt. A5 - Switzerland Power Plug (220 V, 50 Hz)
- RSA5103B - Opt. A6 - Japan Power Plug (100 V, 50/60 Hz)
- RSA5103B - Opt. A10 - China Power Plug (50 Hz)
- RSA5103B - Opt. A11 - India Power Plug (50 Hz)
- RSA5103B - Opt. A12 - Brazil Power Plug (60 Hz)
- RSA5103B - Opt. A99 - No Power Cord
- RSA5103B - Opt. L0 - English Manual
- RSA5103B - Opt. L5 - Japanese Manual
- RSA5103B - Opt. L7 - Simplified Chinese Manual
- RSA5103B - Opt. L10 - Russian Manual
- RSA5103B - Opt. C3 - Calibration Service 3 Years
- RSA5103B - Opt. C5 - Calibration Service 5 Years
- RSA5103B - Opt. CA1 - Single Calibration or Functional Verification
- RSA5103B - Opt. D1 - Calibration Data Report
- RSA5103B - Opt. D3 - Calibration Data Report 3 Years (with Opt. C3)
- RSA5103B - Opt. D5 - Calibration Data Report 5 Years (with Opt. C5)
- RSA5103B - Opt. G3 - Complete Care 3 Years (includes loaner, scheduled calibration, and more)
- RSA5103B - Opt. G5 - Complete Care 5 Years (includes loaner, scheduled calibration, and more)
- RSA5103B - Opt. R5 - Repair Service 5 Years (including warranty)
| Model | RSA5103B |
|---|
El Analizador de Espectro en Tiempo Real Tektronix RSA5103B ofrece un rango de frecuencia de 1 Hz a 3 GHz, integrando capacidades de alto rendimiento como +20 dBm TOI, -151 dBm/Hz DANL a 2 GHz y ancho de banda de adquisición de 165 MHz. Incluye opciones para mediciones de pulsos, WLAN, Bluetooth, LTE, OFDM, APCO P25, figura de ruido y análisis de modulación avanzada.
Ideal para detectar señales transitorias, ofrece visualización espectral DPX® en tiempo real, funciones de disparo-captura-análisis y análisis sin imágenes completamente preseleccionado. Perfecto para depurar señales RF.
Testwall puede suministrar el Tektronix RSA5103B usado, totalmente probado. Con soporte experto y entrega global, Testwall garantiza instrumentación de alto rendimiento con una fiabilidad y calidad de servicio inigualables. Contáctenos si necesita calibración o reparación del Tektronix RSA5103B.
