Tektronix

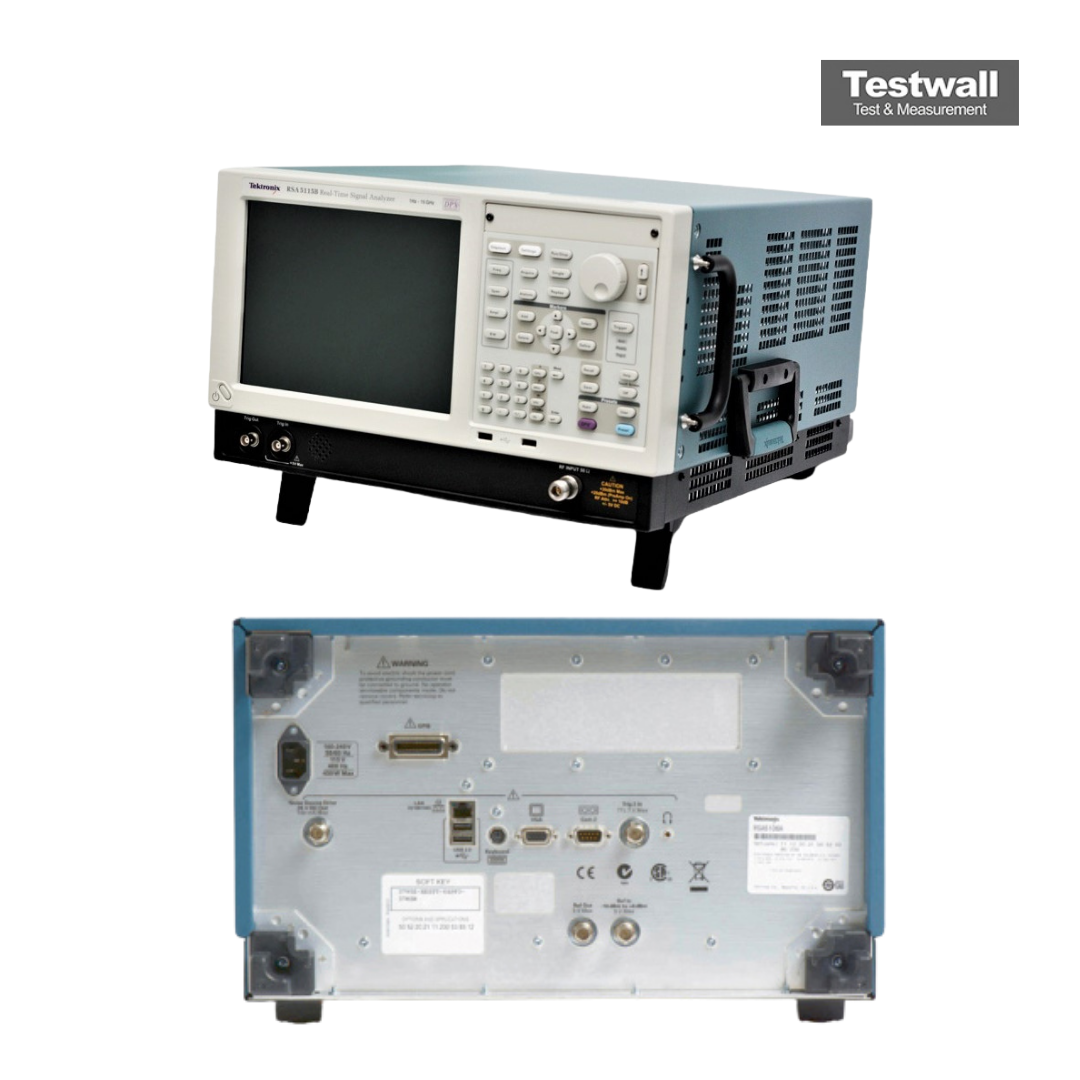

Tektronix RSA5115B
1Hz - 15 GHz Real Time Spectrum Analyser
1 Hz – 15 GHz Rango de Frecuencia
+20 dBm a -160 dBm Rango Dinámico
40 MHz Ancho de Banda de Análisis en Tiempo Real
-163 dBm/Hz (típico) Nivel de Ruido Promedio Mostrado (DANL)
1 Hz Resolución de Frecuencia
| Atributo | Valor |
|---|---|
| Rango de Frecuencia | 1 Hz – 15 GHz |
| Rango Dinámico | +20 dBm a -160 dBm |
| Ancho de Banda de Análisis en Tiempo Real | 40 MHz |
| Nivel de Ruido Promedio Mostrado (DANL) | -163 dBm/Hz (típico) |
| Resolución de Frecuencia | 1 Hz |
| Probabilidad de Intercepción (POI) | 100% para eventos de 31 µs o más |
| Longitud de Registro de Captura | hasta 2 GB de memoria de adquisición |
| Pantalla | Monitor táctil LCD de 15,3 pulgadas (1024 x 768) |
| Interfaces de Conectividad | USB, LAN (Ethernet), GPIB (opcional) |
| Sistema Operativo | Windows 7 de 64 bits |
Tektronix RSA5115B Options:
- RSA5115B - Opt. B25 - 25 MHz Acquisition Bandwidth (no-cost option)
- RSA5115B - Opt. B40 - 40 MHz Acquisition Bandwidth
- RSA5115B - Opt. B85 - 85 MHz Acquisition Bandwidth
- RSA5115B - Opt. B125 - 125 MHz Acquisition Bandwidth
- RSA5115B - Opt. B16x - 165 MHz Acquisition Bandwidth
- RSA5115B - Opt. B85HD - 85 MHz Acquisition Bandwidth, High Dynamic Range
- RSA5115B - Opt. B125HD - 125 MHz Acquisition Bandwidth, High Dynamic Range
- RSA5115B - Opt. B16xHD - 165 MHz Acquisition Bandwidth, High Dynamic Range
- RSA5115B - Opt. 300 - High performance real time (Opt. 09 needed for performance improvement)
- RSA5115B - Opt. 09 - Enhanced Real Time
- RSA5115B - Opt. 10 - AM/FM/PM Modulation and Audio Measurements
- RSA5115B - Opt. 11 - Phase Noise / Jitter Measurement
- RSA5115B - Opt. 12 - Settling Time (Frequency and Phase)
- RSA5115B - Opt. 14 - Noise Figure and Gain (Internal preamp recommended)
- RSA5115B - Opt. 20 - Pulse Measurements
- RSA5115B - Opt. 21 - General Purpose Modulation Analysis
- RSA5115B - Opt. 22 - Flexible OFDM Analysis
- RSA5115B - Opt. 23 - WLAN 802.11a/b/g/j/p measurement application
- RSA5115B - Opt. 24 - WLAN 802.11n measurement application (requires Opt. 23)
- RSA5115B - Opt. 25 - WLAN 802.11ac measurement application (requires Opt. 24)
- RSA5115B - Opt. 26 - APCO P25 measurement application
- RSA5115B - Opt. 27 - Bluetooth Basic LE Tx Measurements
- RSA5115B - Opt. 28 - LTE Downlink RF measurements
- RSA5115B - Opt. 31 - Bluetooth 5 Measurements (requires Opt. 27)
- RSA5115B - Opt. 32 - EMC pre-compliance and troubleshooting
- RSA5115B - Opt. MAP - Mapping and signal strength
- RSA5115B - Opt. 51 - Internal Preamp, 1 MHz to 15/26.5 GHz, RSA5115B/5126B only
- RSA5115B - Opt. 53 - Memory Extension, 4 GB Acquisition Memory Total
- RSA5115B - Opt. 54 - Signal Classification and Survey
- RSA5115B - Opt. 56 - Removable SSD, incompatible with Opt. 59
- RSA5115B - Opt. 59 - Internal HDD, incompatible with Opt. 56 (no cost option)
- RSA5115B - Opt. 65 - Digital I and Q outputs
- RSA5115B - Opt. 66 - Zero-span analog output
- RSA5115B - Opt. 6566 - Digital I and Q outputs and Zero-span analog output
- RSA5115B - Opt. PFR - Precision Frequency Reference
- RSA5115B - Opt. A0 - North America power plug (115 V, 60 Hz)
- RSA5115B - Opt. A1 - Universal Euro power plug (220 V, 50 Hz)
- RSA5115B - Opt. A2 - United Kingdom power plug (240 V, 50 Hz)
- RSA5115B - Opt. A3 - Australia power plug (240 V, 50 Hz)
- RSA5115B - Opt. A4 - North America power plug (240 V, 50 Hz)
- RSA5115B - Opt. A5 - Switzerland power plug (220 V, 50 Hz)
- RSA5115B - Opt. A6 - Japan power plug (100 V, 50/60 Hz)
- RSA5115B - Opt. A10 - China power plug (50 Hz)
- RSA5115B - Opt. A11 - India power plug (50 Hz)
- RSA5115B - Opt. A12 - Brazil power plug (60 Hz)
- RSA5115B - Opt. A99 - No power cord
- RSA5115B - Opt. L0 - English manual
- RSA5115B - Opt. L5 - Japanese manual
- RSA5115B - Opt. L7 - Simplified Chinese manual
- RSA5115B - Opt. L10 - Russian manual
- RSA5115B - Opt. C3 - Calibration Service 3 Years
- RSA5115B - Opt. C5 - Calibration Service 5 Years
- RSA5115B - Opt. CA1 - Single Calibration or Functional Verification
- RSA5115B - Opt. D1 - Calibration Data Report
- RSA5115B - Opt. D3 - Calibration Data Report 3 Years (with Opt. C3)
- RSA5115B - Opt. D5 - Calibration Data Report 5 Years (with Opt. C5)
- RSA5115B - Opt. G3 - Complete Care 3 Years (includes loaner, scheduled calibration, and more)
- RSA5115B - Opt. G5 - Complete Care 5 Years (includes loaner, scheduled calibration, and more)
- RSA5115B - Opt. R5 - Repair Service 5 Years (including warranty)
| Model | RSA5115B |
|---|
El Tektronix RSA5115B analizador de señales en tiempo real integra análisis de espectro, análisis vectorial y capacidades de tiempo real en un solo equipo. Ofrece intermodulación de +17 dBm a 2 GHz, precisión de amplitud de ±0,3 dB hasta 3 GHz y nivel de ruido de –157 dBm/Hz a 2 GHz.
Diseñado para máxima precisión, permite barridos de 1 GHz con RBW de 10 kHz en menos de 1 segundo, rango dinámico de 80 dB y preamplificador interno.
Testwall puede suministrar el Tektronix RSA5115B usado, completamente probado. Con soporte experto y entrega global, Testwall garantiza instrumentos fiables y de alto rendimiento. Contáctenos si necesita calibración o reparación del Tektronix RSA5115B.
