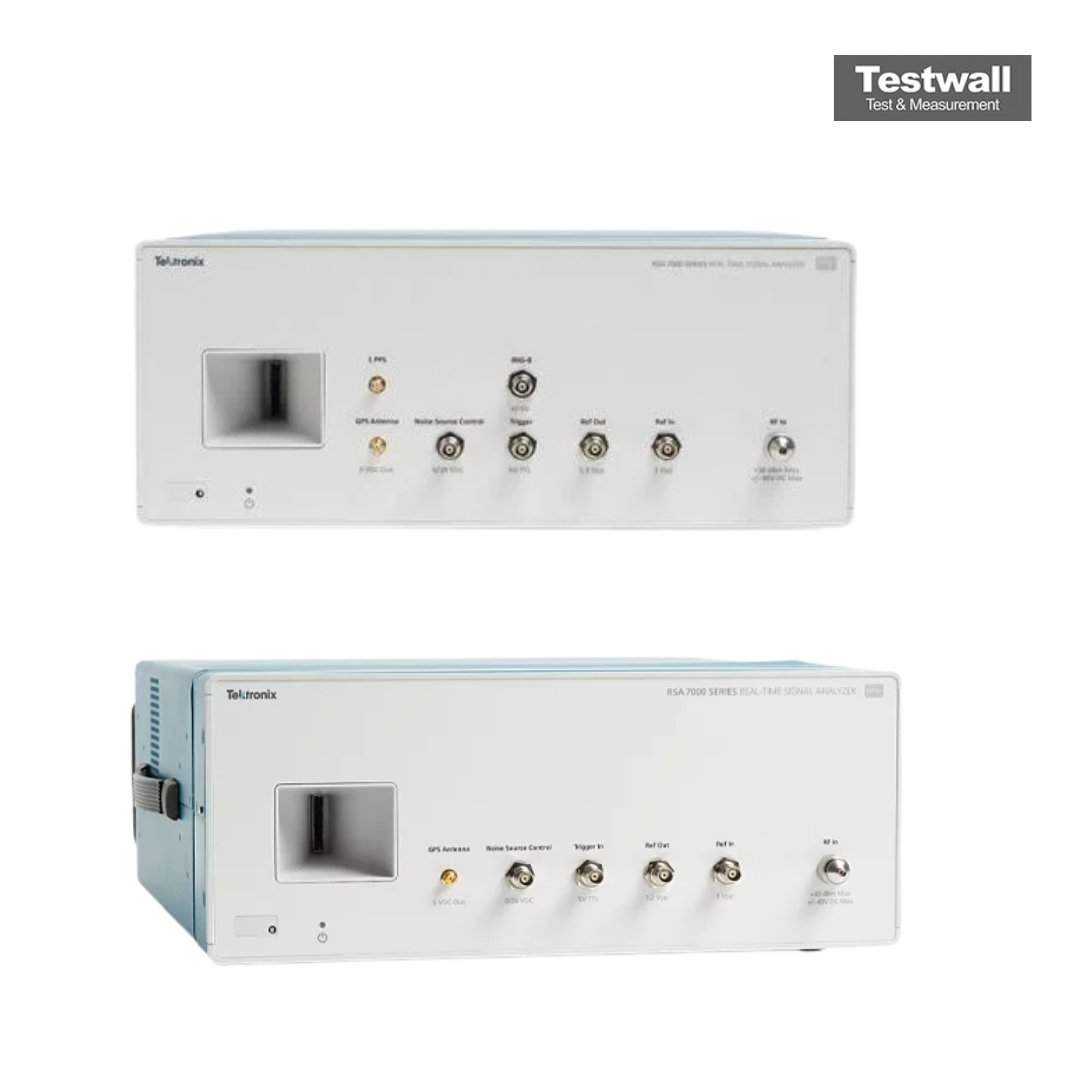

Tektronix RSA7100B
| Atributo | Valor |
|---|---|
| Rango de frecuencia | DC a 26,5 GHz |
| Ancho de banda de análisis en tiempo real | 800 MHz |
| Rango dinámico | +30 dBm a -160 dBm |
| Nivel de ruido promedio mostrado (DANL) | -163 dBm/Hz (típico) |
| Velocidad de captura sin huecos | 100% de probabilidad de interceptación de señales transitorias |
| Profundidad de memoria de captura | Hasta 300 millones de muestras |
| Frecuencia de muestreo | 6,4 GS/s |
| Resolución de fase de ruido | -115 dBc/Hz a 10 kHz de desplazamiento (típico) |
| Interfaz y conectividad | USB, LAN (Ethernet), pantalla táctil, entradas/salidas de RF y referencia externa de 10 MHz |
| Sistema operativo | Windows 10 de 64 bits |
Tektronix RSA7100B Options:
- RSA7100B - Opt. 14 - Frequency range 16 kHz-14 GHz
- RSA7100B - Opt. 26 - Frequency range 16 kHz-26.5 GHz
- RSA7100B - Opt. GPS - GPS receiver, 1PPS, and IRIG-B
- RSA7100B - Opt. NO GPS - No GPS receiver, 1PPS, or IRIG-B
- RSA7100B - Opt. CAL - Calibration report with data (ISO 17025)
- RSA7100B - Opt. GPS CAL - GPS receiver, 1PPS, IRIG-B, and calibration report with data (ISO17025)
- RSA7100B - Opt. C7100-A - Controller, no RAID memory
- RSA7100B - Opt. C7100-B - Controller, RAID storage, >20 minutes recording time at 800 MHz bandwidth (requires STREAMNL-SVPC)
- RSA7100B - Opt. C7100-C - Controller, RAID storage, > 120 minutes recording time at 800 MHz bandwidth (requires STREAMNL-SVPC)
- RSA7100B - Opt. SV09 - High performance real time (export class 3A002), node-locked license
- RSA7100B - Opt. B800NL-SVPC - 800 MHz acquisition bandwidth (for frequencies > 3 GHz)
- RSA7100B - Opt. CUSTOM-APINL-SVPC - Streaming API for customer-defined access of RSA7100 analyzer
- RSA7100B - Opt. STREAMNL-SVPC - IQFlow streaming data to RAID (requires option C7100-B or C7100-C) and 40 GbE
- RSA7100B - Opt. SVMHNL-SVPC - General Purpose Modulation Analysis to work with analyzer of any acquisition bandwidth and MDO
- RSA7100B - Opt. SVPHNL-SVPC - Pulse Analysis to work with analyzer of any acquisition bandwidth and MDO
- RSA7100B - Opt. TRIGHNL-SVPC - Advanced triggers (Frequency Mask, Density) to work with RSA7100
- RSA7100B - Opt. MAPNL-SVPC - Mapping and signal strength
- RSA7100B - Opt. SV54NL-SVPC - Signal survey and classification
- RSA7100B - Opt. PHASNL-SVPC - Phase noise / jitter measurements
- RSA7100B - Opt. SVTNL-SVPC - Settling Time (frequency and phase) measurements
- RSA7100B - Opt. SV23NL-SVPC - WLAN 802.11a/b/g/j/p measurement
- RSA7100B - Opt. SV24NL-SVPC - WLAN 802.11n measurement (requires SV23)
- RSA7100B - Opt. SV25HNL-SVPC - WLAN 802.11ac measurement to work with analyzer of acquisition bandwidth ≤40 MHz and MDO4000B/C (requires SV23 and SV24)
- RSA7100B - Opt. SV26NL-SVPC - APCO P25 measurement
- RSA7100B - Opt. SV27NL-SVPC - Bluetooth measurement to work with analyzer of acquisition bandwidth ≤40 MHz and MDO4000B/C
- RSA7100B - Opt. SV28NL-SVPC - LTE Downlink RF measurement to work with analyzer of acquisition bandwidth ≤40 MHz and MDO4000B/C
- RSA7100B - Opt. 5GNRNL-SVPC - 5G NR Uplink/Downlink RF Power, Bandwidth, Demodulation, and Error Vector Magnitude Measurements
- RSA7100B - Opt. SVANL-SVPC - AM/FM/PM/Direct Audio Analysis
- RSA7100B - Opt. SVONL-SVPC - Flexible OFDM Analysis
- RSA7100B - Opt. CONNL-SVPC - SignalVu-PC connection to the MDO4000B/C series mixed-domain oscilloscopes
- RSA7100B - Opt. SV2CHNL-SVPC - WLAN 802.11a/b/g/j/p/n/ac and live link to MDO4000B to work with analyzer of any acquisition bandwidth and MDO
- RSA7100B - Opt. SV2CNL-SVPC - Live Link to MDO4000B/C and WLAN 802.11a/b/g/j/p/n/ac measurements (includes options CON, SV23, SV24 and SV25)
- RSA7100B - Opt. SVMNL-SVPC - General Purpose Modulation Analysis to work with analyzer of acquisition bandwidth less than or equal to 40MHz and MDO
- RSA7100B - Opt. SVPNL-SVPC - Pulse Analysis to work with analyzer of acquisition bandwidth less than or equal to 40MHz and MDO
- RSA7100B - Opt. CALUP - Upgrade to calibration report with data (ISO17025)
- RSA7100B - Opt. NO - No calibration report (ISO17025)
- RSA7100B - Opt. A0 - North America power plug (115 V, 60 Hz)
- RSA7100B - Opt. A1 - Universal Euro power plug (220 V, 50 Hz)
- RSA7100B - Opt. A2 - United Kingdom power plug (240 V, 50 Hz)
- RSA7100B - Opt. A3 - Australia power plug (240 V, 50 Hz)
- RSA7100B - Opt. A4 - North America power plug (240 V, 50 Hz)
- RSA7100B - Opt. A5 - Switzerland power plug (220 V, 50 Hz)
- RSA7100B - Opt. A6 - Japan power plug (100 V, 50/60 Hz)
- RSA7100B - Opt. A10 - China power plug (50 Hz)
- RSA7100B - Opt. A11 - India power plug (50 Hz)
- RSA7100B - Opt. A12 - Brazil power plug (60 Hz)
- RSA7100B - Opt. A99 - No power cord
- RSA7100B - Opt. L0 - English manual
- RSA7100B - Opt. L3 - Japanese manual
- RSA7100B - Opt. L5 - Simplified Chinese manual
- RSA7100B - Opt. L99 - No manual
- RSA7100B - Opt. C3 - Calibration Service 3 Years
- RSA7100B - Opt. C5 - Calibration Service 5 Years
- RSA7100B - Opt. G3 - Complete Care 3 Years (includes loaner, scheduled calibration, and more)
- RSA7100B - Opt. G5 - Complete Care 5 Years (includes loaner, scheduled calibration, and more)
| Model | RSA7100B |
|---|

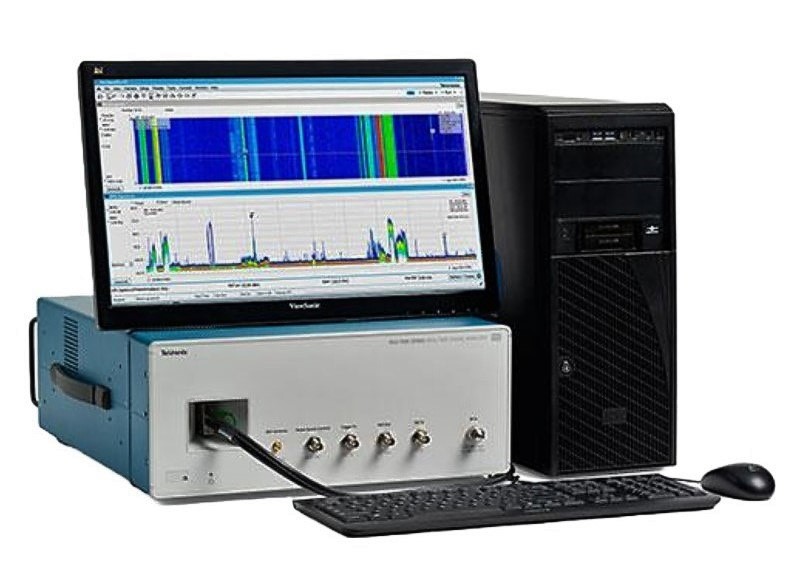

TEKTRONIX RSA7100B Real Time Signal Analyzer
The Tektronix RSA7100B Real Time Signal Analyzer is a powerful tool for engineers and technicians working on the latest wideband designs in communications, radar, and electronic warfare. With its real-time spectrum analysis capability and 320 MHz bandwidth (standard), the RSA7100B offers comprehensive analysis and signal recording functionalities. It also separates RF acquisitions from the compute engine, allowing for real-time processing without the need for FPGA designs. This makes it an ideal workstation for simulations and designs, empowering users to harness its processing power for their own projects.
The RSA7100B Real Time Signal Analyzer comes with two software packages: SignalVu-PC for real-time spectrum and vector signal analysis, and DataVu-PC for analyzing large file sets produced during wideband signal recording. SignalVu-PC offers deep analysis capabilities, while DataVu-PC provides color-graded spectrums, spectrograms, and amplitude vs. time views of unlimited-length files, along with search-and-mark testing for quick identification of signals of interest. DataVu-PC enables users to quickly identify and analyze signals of interest, it offers amplitude-qualified searches and can mark up to 2,000,000 events found. Users can replay selected sections for a detailed review of signals and export specific areas to SignalVu-PC for further analysis, Pulse analysis functionality is also available within DataVu-PC. Overall, the Tektronix RSA7100B is a high-performance spectrum analyzer designed to meet the demands of engineers and technicians working with wideband systems, providing a comprehensive solution for signal analysis, recording, and evaluation.
Specifications for the TEKTRONIX RSA7100B Real Time Signal Analyzer Include:
| Bandwidth | 320 MHz (800 MHz option) |
| Frequency Range | 16 kHz to 26.5 (option dependent) |
| RF Input Impedence | 50 Ω |
| Probability of Intercept at Full Signal | 232 ns for 100% |
