Tektronix TDP7704
| Atributo | Valor |
|---|---|
| Ancho de banda | 7 GHz |
| Impedancia de entrada | 50 Ω |
| Tensión máxima de entrada | ±2,5 V (diferencial) |
| Rango de tensión de modo común | ±12 V |
| Factor de atenuación | 80X |
| Relación de rechazo en modo común (CMRR) | 30 dB a 1 GHz |
| Longitud del cable | 1,2 m |
| Capacidad de entrada | 0,3 pF |
| Compatibilidad con osciloscopios | Serie DPO/DSA/MSO70000, DPO7000 |
| Tipo de sonda | Sonda diferencial activa de alta velocidad |
Tektronix TDP7704 Options:
- TDP7704 - C3 - Calibration Service 3 Years
- TDP7704 - C5 - Calibration Service 5 Years
- TDP7704 - D3 - Calibration Data Report 3 Years (with Opt. C3)
- TDP7704 - D5 - Calibration Data Report 5 Years (with Opt. C5)
- TDP7704 - G3 - Complete Care 3 Years (includes loaner, scheduled calibration, and more)
- TDP7704 - G5 - Complete Care 5 Years (includes loaner, scheduled calibration, and more)
- TDP7704 - R3 - Repair Service 3 Years (including warranty)
- TDP7704 - R3DW - Repair Service Coverage 3 Years (includes product warranty period). 3-year period starts at time of instrument purchase
- TDP7704 - R5 - Repair Service 5 Years (including warranty)
- TDP7704 - R5DW - Repair Service Coverage 5 Years (includes product warranty period). 5-year period starts at time of instrument purchase
| Model | TDP7704 |
|---|

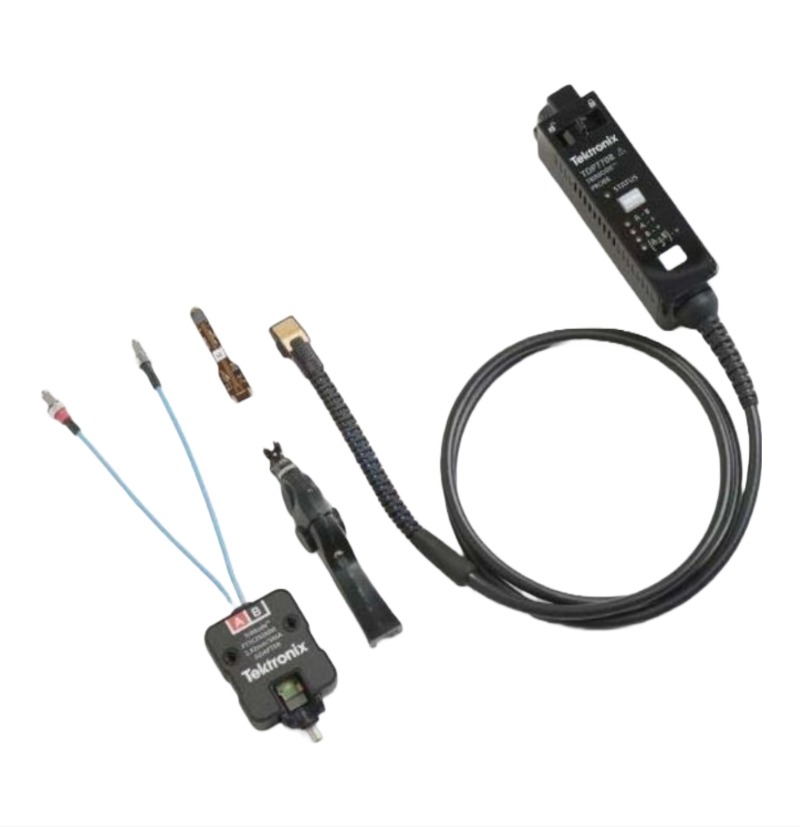

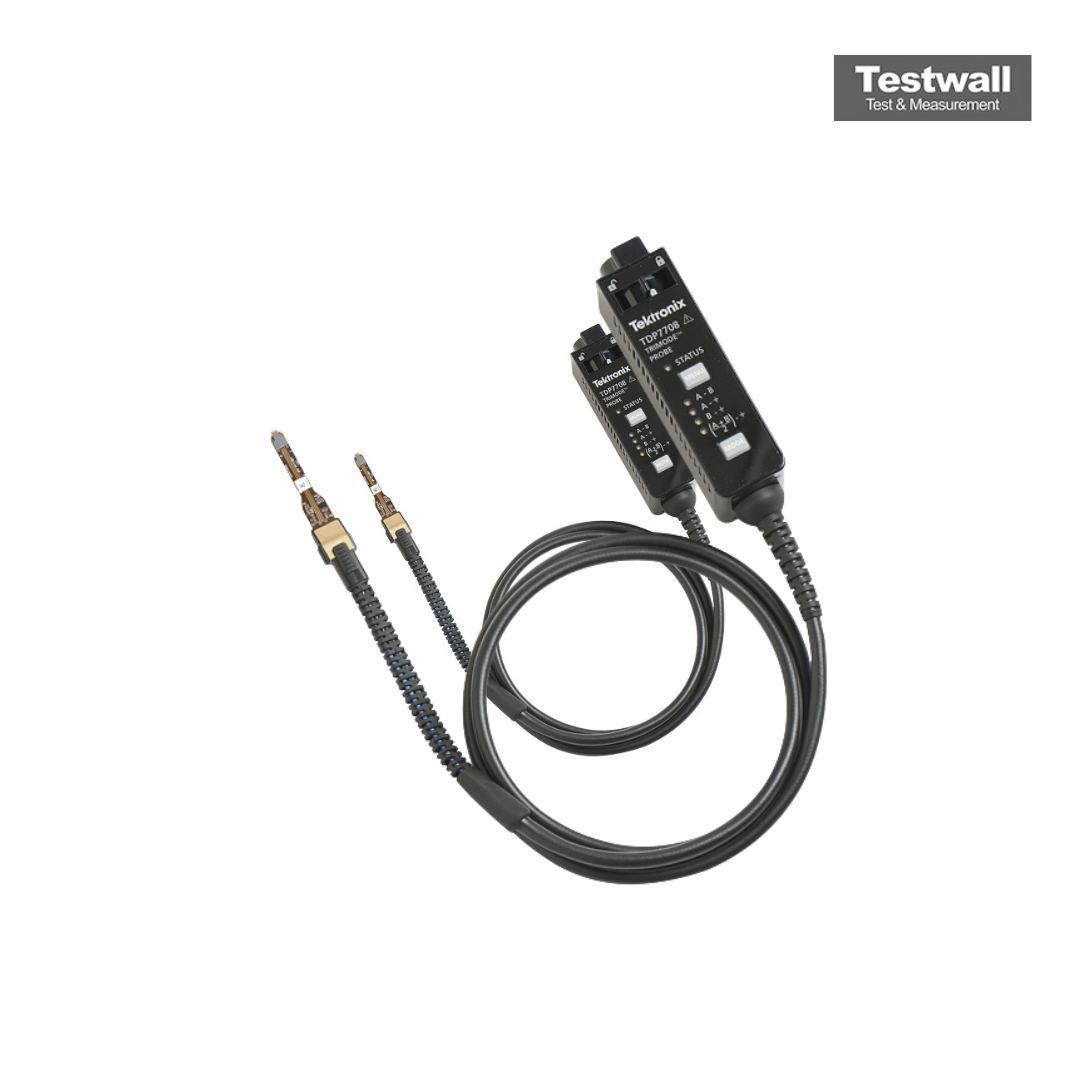

TEKTRONIX TDP7704 TriMode Probe
The TDP7704 TriMode Probe introduce the TekFlex connector technology, a groundbreaking advancement in connectivity and functionality. This innovative connector seamlessly integrates a high-speed signal path, power supply, and communication support for an active buffer tip, all within a single, user-friendly accessory connector. With its pinch-to-open design, attaching an accessory tip becomes effortless, requiring minimal force. When closed, the TekFlex connector establishes a secure connection, eliminating the risk of accidental disconnections. This cutting-edge connector empowers the TDP7704 probe to provide active probe tips positioned just millimeters away from the input connections, resulting in a short signal path. This configuration delivers exceptional fidelity, high impedance input, and effectively reduces signal loss, capacitance, and additive noise, ensuring precise and reliable measurements.
Specifications for the TEKTRONIX TDP7704 TriMode Probe Include:
| Bandwidth | 4 GHz |
| Rise Time (10% - 90%) | < 100 ps |
| Operating Voltage | ±4 V (2.92 tip), ±5.25 V (active tip), ±10 V (browser tip) |
| Accuracy | ±2 % |
