Tektronix

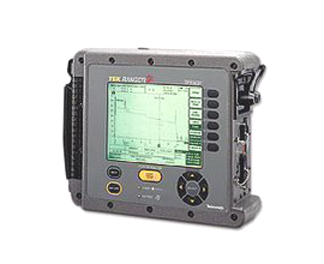

Tektronix TFS3031
850 & 1310nm Multimode OTDR
3 GHz Ancho de banda
1 canal Número de canales
9 kHz a 3 GHz Rango de frecuencia
-135 dBm (típico) a 1 GHz Nivel de ruido mostrado en pantalla (DANL)
100 Hz a 3 MHz Resolución de ancho de banda (RBW)
| Atributo | Valor |
|---|---|
| Ancho de banda | 3 GHz |
| Número de canales | 1 canal |
| Rango de frecuencia | 9 kHz a 3 GHz |
| Nivel de ruido mostrado en pantalla (DANL) | -135 dBm (típico) a 1 GHz |
| Resolución de ancho de banda (RBW) | 100 Hz a 3 MHz |
| Rango dinámico | 70 dB |
| Nivel de referencia | -80 dBm a +30 dBm |
| Impedancia de entrada | 50 Ω |
| Pantalla | Pantalla LCD en color de 6,5 pulgadas |
| Alimentación eléctrica | 100 V a 240 V CA, 50/60 Hz |
Tektronix TFS3031 Options:
- TFS3031 - Opt. 01 - Single wavelength 850 nm (Multimode, 62.5 µm GI Fiber)
- TFS3031 - Opt. 03 - Dual wavelength 850/1300 nm (Multimode, 62.5 µm GI Fiber)
- TFS3031 - Opt. 04 - Single wavelength 1310 nm (Singlemode, ITU-T G.652)
- TFS3031 - Opt. 06 - Dual wavelength 1310/1550 nm (Singlemode, ITU-T G.652)
- TFS3031 - Opt. 10 - Dual wavelength 1310/1550 nm extended range (Singlemode, ITU-T G.652)
- TFS3031 - Opt. 12 - Single wavelength 1625 nm (Singlemode, ITU-T G.652)
- TFS3031 - Opt. A1 - International Power Plug: Universal Euro 220 V
- TFS3031 - Opt. A2 - International Power Plug: United Kingdom 240 V
- TFS3031 - Opt. A3 - International Power Plug: Australia 240 V
- TFS3031 - Opt. A4 - International Power Plug: N. American 240V, 60 Hz
- TFS3031 - Opt. A5 - International Power Plug: Switzerland 220 V
- TFS3031 - Opt. A6 - International Power Plug: Japan 110 V
- TFS3031 - Opt. L1 - Language Option: French
- TFS3031 - Opt. L2 - Language Option: Italian
- TFS3031 - Opt. L3 - Language Option: German
- TFS3031 - Opt. L4 - Language Option: Spanish
- TFS3031 - Opt. L5 - Language Option: Japanese
- TFS3031 - Opt. L6 - Language Option: Portuguese
- TFS3031 - Opt. L7 - Language Option: Simple Chinese
- TFS3031 - Opt. L8 - Language Option: Standard Chinese
- TFS3031 - Opt. LF - Language Option: Finnish
- TFS3031 - Opt. LD - Language Option: Dutch
- TFS3031 - Opt. R3 - Repair warranty extended to cover three years
- TFS3031 - Opt. R5 - Repair warranty extended to cover five years
- TFS3031 - Opt. 11 - 3.5 in. Disk Drive
- TFS3031 - Opt. 19 - Mini-keyboard
- TFS3031 - Opt. 1D - Test Data Sheet
- TFS3031 - Opt. 1S - FMTAP™ Software
- TFS3031 - Opt. 1T - Hard Transit Case
- TFS3031 - Opt. 2T - Optical LED Source, multimode 850/1300 nm reference source (TOP130)
- TFS3031 - Opt. 3T - Optical Laser Source, singlemode 1310 nm reference source (TOP140)
- TFS3031 - Opt. 5T - Optical Power Meter 850/1310/1550 nm (TOP200)
- TFS3031 - Opt. 6T - Visual Fault Finder 635 nm (TOP300)
- TFS3031 - Opt. 7T - Optical Laser Source, singlemode 1310/1550 nm reference source (TOP160)
- TFS3031 - Opt. 8T - High Power Optical Power Meter 980/1310/1550 nm (TOP220)
- TFS3031 - Opt. 9T - Adjustable Optical Attenuator, singlemode 0-35 dB (TOP400)
- TFS3031 - Opt. AN - LAN Configuration: 850/1300 nm multimode OTDR port, 3.5 in. disk drive, ST connector, FMTAP software, Hard travel case
- TFS3031 - Opt. AX - Installer Configuration: 850/1300 nm multimode port, 1310/1550 nm singlemode OTDR port, 3.5 in. disk drive, ST connector on multimode, FC connector on singlemode, FMTAP software, Hard travel case
- TFS3031 - Opt. 20 - Multimode Connector: Biconic
- TFS3031 - Opt. 21 - Multimode Connector: FC/PC
- TFS3031 - Opt. 22 - Multimode Connector: D4/PC
- TFS3031 - Opt. 24 - Multimode Connector: ST/PC
- TFS3031 - Opt. 25 - Multimode Connector: DIN/PC 47256
- TFS3031 - Opt. 26 - Multimode Connector: DIAMOND 3.5
- TFS3031 - Opt. 28 - Multimode Connector: SC/PC
- TFS3031 - Opt. 30 - Singlemode Connector: Biconic
- TFS3031 - Opt. 31 - Singlemode Connector: FC/PC
- TFS3031 - Opt. 32 - Singlemode Connector: D4/PC
- TFS3031 - Opt. 34 - Singlemode Connector: ST/PC
- TFS3031 - Opt. 35 - Singlemode Connector: DIN/PC 47256
- TFS3031 - Opt. 36 - Singlemode Connector: DIAMOND 3.5
- TFS3031 - Opt. 38 - Singlemode Connector: SC/PC
- TFS3031 - Opt. 41 - Singlemode Connector: FC/APC
- TFS3031 - Opt. 42 - Singlemode Connector: SC/APC
- TFS3031 - Opt. 44 - Singlemode Connector: ST/APC
- TFS3031 - Opt. 45 - Singlemode Connector: DIN/APC
| Model | TFS3031 |
|---|

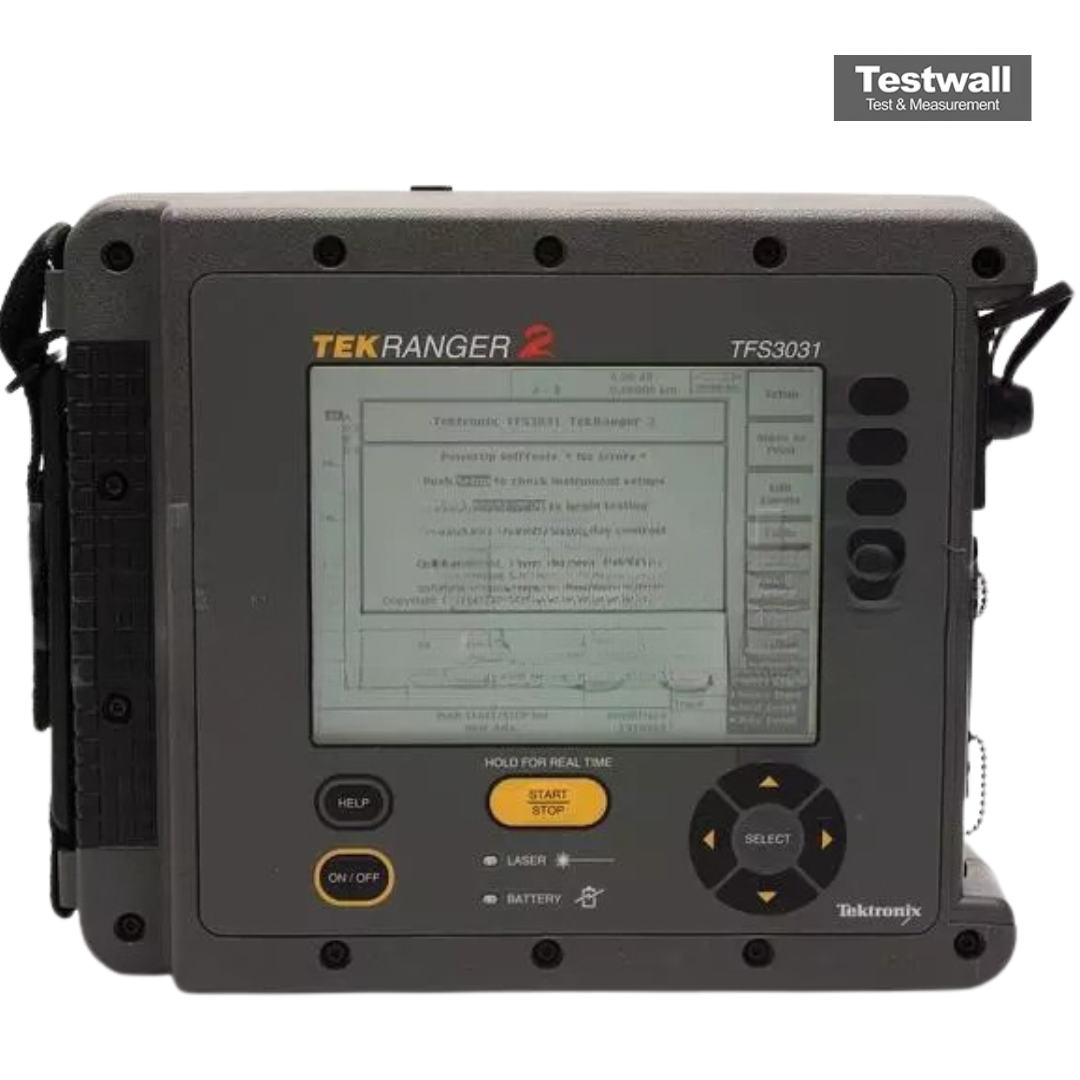

El Tektronix TekRanger 2 TFS3031 mini‑OTDR con IntelliTrace™ Automated Fiber Analysis proporciona pruebas precisas de fibra monomodo en entornos exigentes. Con parámetros optimizados automáticamente, ofrece un amplio rango dinámico y excelente resolución, detectando eventos a 10 m y extremos de fibra hasta 70 km. Su pantalla de alto contraste, mediciones trazables al NIST y conectividad completa mejoran el rendimiento en campo.
Ideal para instalación, mantenimiento y restauración de redes de fibra óptica, el TFS3031 asegura pruebas eficientes con un solo botón y almacenamiento flexible mediante memoria interna o disquete.
Testwall can supply the used Tektronix TekRanger 2 TFS3031, fully tested. With expert support and global delivery, Testwall ensures high‑performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TekRanger 2 TFS3031.
