Tektronix WFM7120
Tektronix WFM7120 Waveform Monitor
SD, HD, 3 Gb/s SD-SDI, HD-SDI, dual link HD-SDI Formatos de señal compatibles
3 Gb/s Ancho de banda
4 entradas SDI Número de entradas SDI
Pantalla LCD a color de 8,4 pulgadas Pantalla
Forma de onda, vectorscopio, parade, picture, audio, datos Modos de visualización
| Atributo | Valor |
|---|---|
| Formatos de señal compatibles | SD, HD, 3 Gb/s SD-SDI, HD-SDI, dual link HD-SDI |
| Ancho de banda | 3 Gb/s |
| Número de entradas SDI | 4 entradas SDI |
| Pantalla | Pantalla LCD a color de 8,4 pulgadas |
| Modos de visualización | Forma de onda, vectorscopio, parade, picture, audio, datos |
| Monitorización de audio | Soporte para audio embebido AES/EBU y analógico |
| Estándares de referencia | Tri-level sync, black burst (NTSC/PAL) |
| Interfaz de control | Ethernet (100Base-T), control remoto SNMP |
| Factor de forma | Montaje en rack 2U, media bahía |
| Alimentación | 100-240 V CA, 50/60 Hz, consumo máximo 100 W |
Tektronix WFM7120 Options:
- WFM7120 - SD - Standard Definition SDI (Standard on all units)
- WFM7120 - CPS - Add support for monitoring NTSC/PAL composite analog video, 2 inputs with passive loopthrough outputs
- WFM7120 - HD - Add support for monitoring High Definition digital video formats, 2 auto-sensing SDI inputs with switched output of selected input
- WFM7120 - 3G - Support for Single Link 3G SDI
- WFM7120 - DL - Adds Full Dual Link Support
- WFM7120 - SIM - Adds support for Simultaneous Chan 1, Chan 2 Inputs
- WFM7120 - AVD - Adds support for AV Delay Measurements (Requires signals provided from the TG700 with either the DVG7 or an HDVG7 module with A/V Timing Mode enabled)
- WFM7120 - AD - Add support for monitoring digital audio, embedded, and AES/EBU inputs, up to 8 AES/EBU inputs (16 channels), up to 4 AES/EBU outputs (8 channels) capabilities available, plus support for monitoring analog audio, up to 12 analog audio inputs, up to 8 analog audio outputs
- WFM7120 - DDE - Add capabilities available in Option AD, plus support for monitoring Dolby Digital (AC-3) and Dolby-E
- WFM7120 - EYE - Add support for Eye diagrams, jitter measurement, cable parameter measurements
- WFM7120 - PHY - Add capabilities available on Option EYE, plus jitter waveform and Eye parameter measurements
- WFM7120 - DAT - Add in-depth video data and ancillary data analysis
- WFM7120 - IT - Adds Jitter Measurement Capability
- WFM7120 - NRC - No portable cabinet or rack cabinet
- WFM7120 - 01 - Portable cabinet (same as WFM7F02)
- WFM7120 - 02 - Dual rack cabinet (same as WFM7F05 option NN)
- WFM7120 - 05 - Dual rack cabinet (same as WFM7F05 option ON)
- WFM7120 - 62 - Analog audio breakout cable, 6 feet, male 62 pin connector to 8 XLR male output connectors and 12 XLR female input connectors
- WFM7120 - CA1 - Provides a single calibration event or coverage for the designated calibration interval, whichever comes first
- WFM7120 - C3 - Calibration service 3 Years
- WFM7120 - C5 - Calibration service 5 Years
- WFM7120 - D1 - Calibration data report
- WFM7120 - D3 - Calibration data report 3 Years (with option C3)
- WFM7120 - D5 - Calibration data report 5 Years (with option C5)
- WFM7120 - R3 - Repair service 3 years (including warranty)
- WFM7120 - R5 - Repair service 5 years (including warranty)
- WFM7120 - A0 - Power connection – North America
- WFM7120 - A1 - Power connection – Universal Euro
- WFM7120 - A2 - Power connection – United Kingdom
- WFM7120 - A3 - Power connection – Australia
- WFM7120 - A4 - Power connection – 240 V, North America
- WFM7120 - A5 - Power connection – Switzerland
- WFM7120 - A6 - Power connection – Japan
- WFM7120 - A10 - Power connection – China
- WFM7120 - A99 - Power connection – No power cord or AC adapter
- WFM7120 - L0 - English Manual
- WFM7120 - L5 - Japanese Manual
- WFM7120 - L7 - Simplified Chinese Manual
| Model | WFM7120 |
|---|

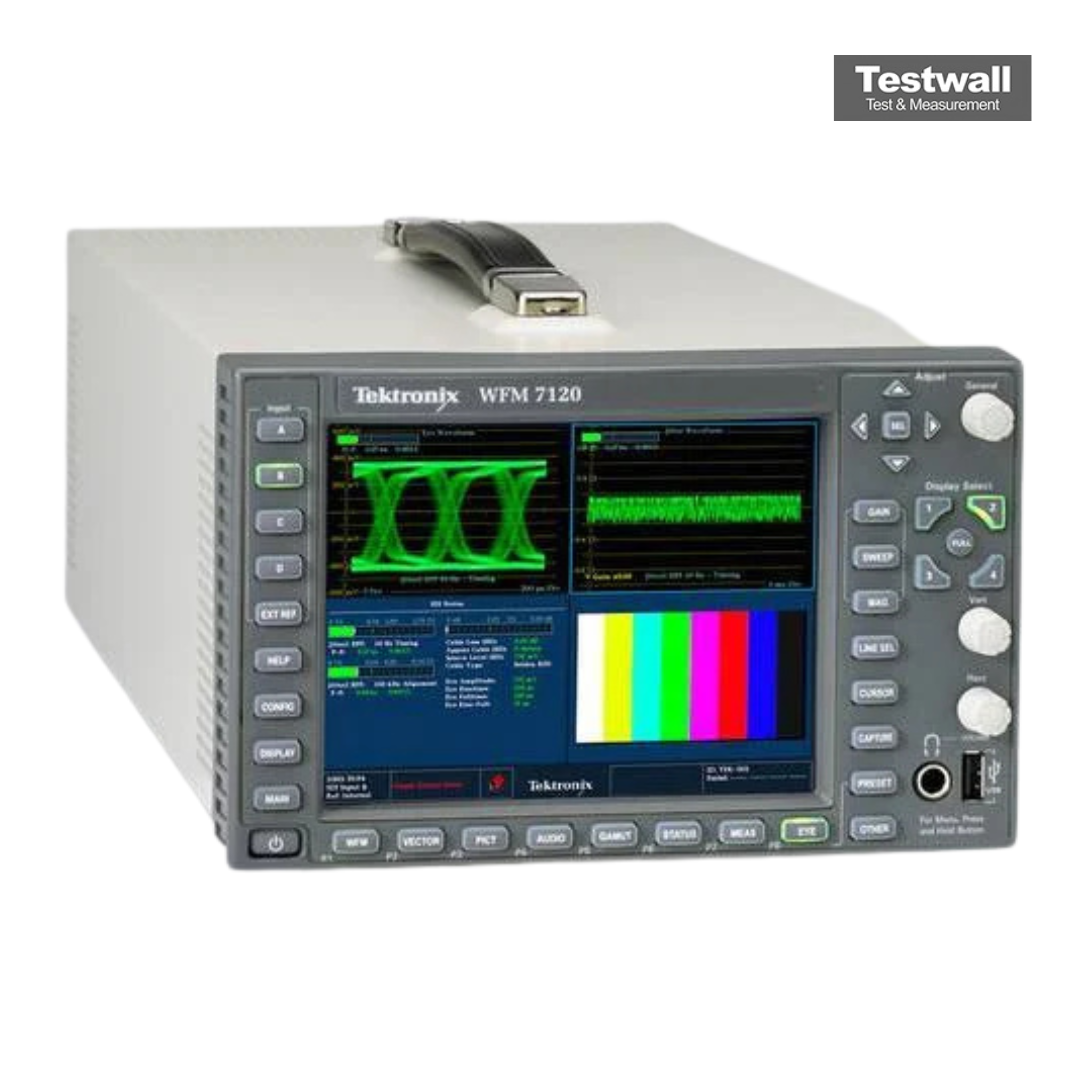

El Tektronix WFM7120 es un monitor de forma de onda HD de alto rendimiento que ofrece un análisis integral de señales digitales de video y audio. Incorpora funciones del WFM7020 y se amplía con audio Dolby (Opt. DDE), análisis avanzado de datos (Opt. DAT), medición de señal SDI y retraso AV (Opt. AVD). También admite supervisión A/B simultánea (Opt. SIM) y Dual Link (Opt. DL).
Ideal para producción de video HD y entornos de transmisión, el WFM7120 garantiza una evaluación precisa con diagnósticos mejorados.
Testwall puede suministrar el Tektronix WFM7120 usado, completamente probado. Con soporte experto y entrega global, Testwall garantiza instrumentación de alto rendimiento con fiabilidad y calidad de servicio incomparables. Contáctenos directamente si necesita calibración o reparación del Tektronix WFM7120.
