Tektronix

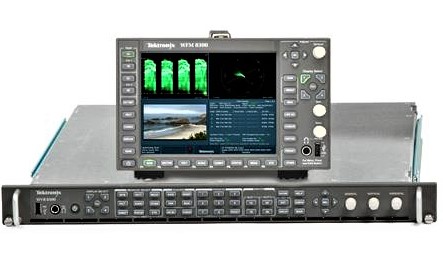

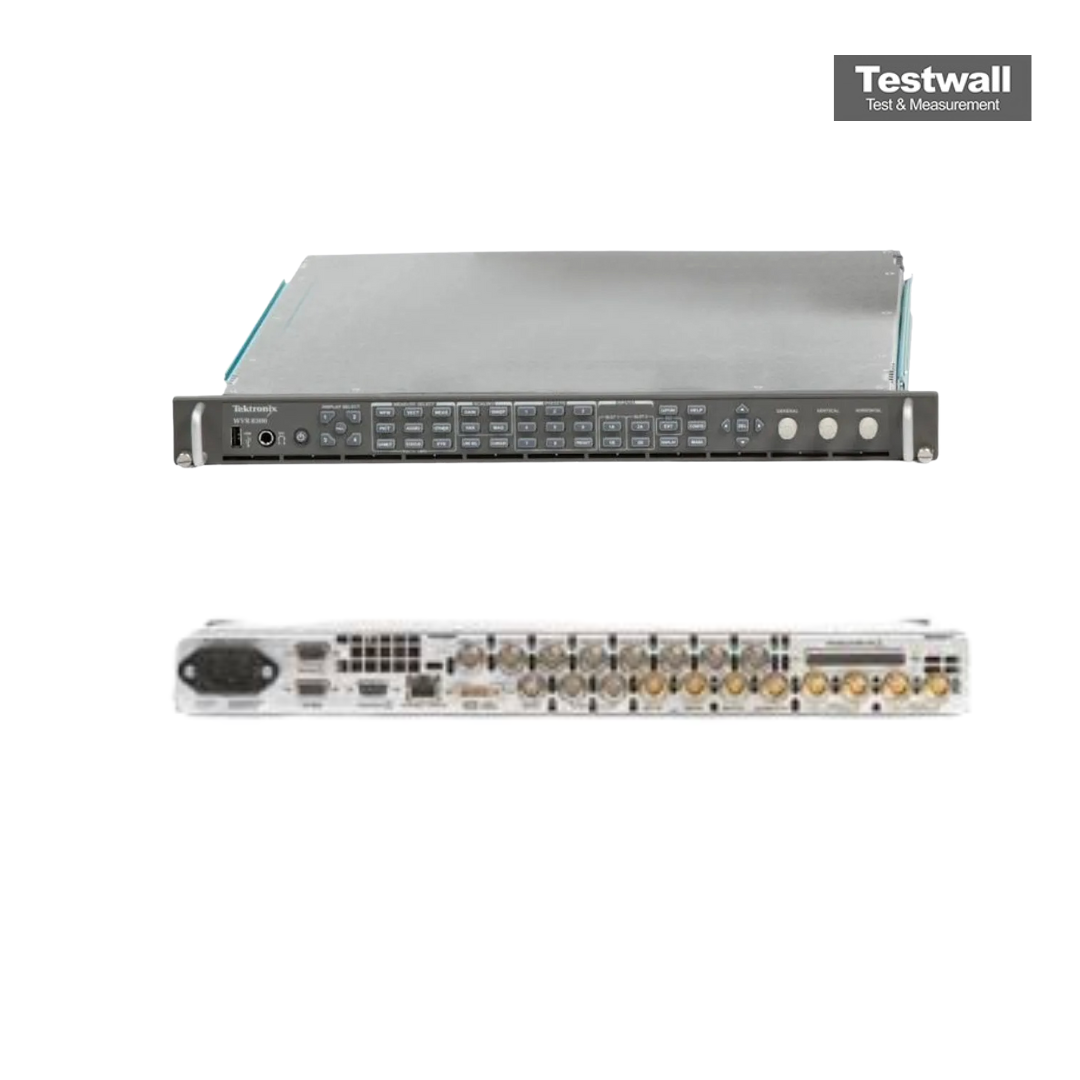

Tektronix WVR8300
Multiformat Waveform Rasterizer and Analyzer, 3G/HD/SD
SD, HD, 3G-SDI hasta 3 Gb/s Formatos de vídeo compatibles
4 entradas SDI independientes Número de entradas SDI
SMPTE 259M, SMPTE 292M, SMPTE 424M, SMPTE 425M Estándares de señal
Pantalla LCD de alta resolución de 9,6 pulgadas Pantalla
Forma de onda, vectorscopio, parade, picture, audio, status Tipos de visualización
| Atributo | Valor |
|---|---|
| Formatos de vídeo compatibles | SD, HD, 3G-SDI hasta 3 Gb/s |
| Número de entradas SDI | 4 entradas SDI independientes |
| Estándares de señal | SMPTE 259M, SMPTE 292M, SMPTE 424M, SMPTE 425M |
| Pantalla | Pantalla LCD de alta resolución de 9,6 pulgadas |
| Tipos de visualización | Forma de onda, vectorscopio, parade, picture, audio, status |
| Monitorización de audio | Soporta audio embebido AES/EBU, hasta 16 canales de audio |
| Opciones de conectividad | Ethernet, GPI/O, puerto USB, salida de referencia |
| Análisis de contenido | Detección de error SDI, monitorización de closed caption y subtítulos |
| Factor de forma | Rack de 2U, diseño compacto para instalación en bastidor |
| Alimentación eléctrica | 100-240 V CA, 50/60 Hz, fuente de alimentación universal |
Tektronix WVR8300 Options:
- WVR8300 - 2SDI - Adds additional SDI module (in slot 2) to support up to 4 SDI inputs within multi-mode displays (3G-SDI, HD-SDI, and SD-SDI support on the same inputs – auto detect). Option 3G required for 3G-SDI support. Cannot be installed with option CPS.
- WVR8300 - 3G - Adds support for 3G-SDI signal formats (Level A and Level B). Upgrades are available by a software option key.
- WVR8300 - 4K - Adds support for 4K/UHDTV1 signal formats (requires Options 3G and 2SDI).
- WVR8300 - AD - Adds analog audio monitoring (2 sets of 6-channel analog audio inputs and 8-channel analog audio outputs) plus 16 channels, embedded or AES/EBU digital audio support (8 channels at a time), including loudness monitoring.
- WVR8300 - CPS - Adds support for composite analog video monitoring; 2 composite analog inputs; passive loopthrough. Cannot be installed with option 2SDI.
- WVR8300 - DPE - Adds option AD capabilities (analog and digital audio – embedded or external AES) plus support for decoding and monitoring Dolby E, Dolby D, and Dolby Digital Plus including loudness monitoring.
- WVR8300 - IF - Upgrade installation service. Available as an option for the WVR830UP.
- WVR8300 - IFC - Upgrade installation service and calibration. Available as an option for the WVR830UP.
- WVR8300 - PHY - Physical layer measurement package (includes 3G-SDI, HD-SDI, and SD-SDI eye pattern and jitter waveform displays; automated measurements of eye pattern parameters, jitter, and cable parameters; color bar and pathological signal generation). Option 3G required for 3G-SDI support.
- WVR8300 - PROD - Advanced gamut monitoring package (Spearhead Gamut display and Luma Qualified Vector display).
- WVR8300 - 62 - Analog audio breakout cable, 6 feet, male 62-pin connectors to 8 XLR male output connectors and 12 XLR female input connectors.
- WVR8300 - A0 - North America power plug (115 V, 60 Hz)
- WVR8300 - A1 - Universal Euro power plug (220 V, 50 Hz)
- WVR8300 - A2 - United Kingdom power plug (240 V, 50 Hz)
- WVR8300 - A3 - Australia power plug (240 V, 50 Hz)
- WVR8300 - A5 - Switzerland power plug (220 V, 50 Hz)
- WVR8300 - A6 - Japan power plug (100 V, 50/60 Hz)
- WVR8300 - A10 - China power plug (50 Hz)
- WVR8300 - A11 - India power plug (50 Hz)
- WVR8300 - A12 - Brazil power plug (60 Hz)
- WVR8300 - A99 - No power cord
- WVR8300 - C3 - Calibration Service 3 Years
- WVR8300 - C5 - Calibration Service 5 Years
- WVR8300 - CA1 - Single Calibration or Functional Verification
- WVR8300 - D1 - Calibration Data Report
- WVR8300 - D3 - Calibration Data Report 3 Years (with Opt. C3)
- WVR8300 - D5 - Calibration Data Report 5 Years (with Opt. C5)
- WVR8300 - G3 - Complete Care 3 Years (includes loaner, scheduled calibration, and more)
- WVR8300 - G5 - Complete Care 5 Years (includes loaner, scheduled calibration, and more)
- WVR8300 - R3 - Repair Service 3 Years (including warranty)
- WVR8300 - R3DW - Repair Service Coverage 3 Years (includes product warranty period). 3-year period starts at time of instrument purchase.
- WVR8300 - R5 - Repair Service 5 Years (including warranty)
- WVR8300 - R5DW - Repair Service Coverage 5 Years (includes product warranty period). 5-year period starts at time of instrument purchase.
| Model | WVR8300 |
|---|
Tektronix WVR8300 Multiformat Waveform Rasterizer and Analyzer, 3G/HD/SD
The measurement and monitoring capabilities of the Tektronix WVR8300 provide precision capabilities such as physical layer measurements, digital data analysis (including ANC Data Inspector), A/V delay measurement, and indepth simultaneous input monitoring, making Tektronix the brand of choice for applications that require deep signal and content analysis with unquestionable accuracy. The WVR8300 features the complete range of product family options and comes standard with HD/SD-SDI and Dual Link video format support. It provides high-performance monitoring and measurement for applications for a wide range of formats from Composite Analog to SD-SDI, HD-SDI and 3G-SDI video signals in single, dual and quad-link video formats. The WVR8300 offers support for a variety of audio formats for analog, digital AES/EBU, digital embedded, Dolby Digital, Dolby Digital Plus, and Dolby E.
Features and Specifications of the Tektronix WVR8300 includes:
- Standard with auto-detection of HD/SD-SDI and multiple Dual Link video formats
- Standard with Simultaneous Input Monitoring capability, ANC Data Inspector, and numerical/graphical display of A/V delay for analog, digital audio (Option AD), and Dolby (Option DPE)
- Most comprehensive eye pattern measurements including eye amplitude, rise/fall time, and overshoot/undershoot measurements as well as Tektronix jitter waveform display Option PHY
- Most in-depth digital data analysis helps quickly resolve difficult content quality and reliability issues
