Test Equity 1016C
| Atributo | Valor |
|---|---|
| Rango de temperatura | -10°C a +100°C |
| Estabilidad de temperatura | ±0,1°C |
| Uniformidad espacial | ±0,3°C |
| Capacidad interior | 1,0 pies cúbicos (28 litros) |
| Tiempo de calentamiento | 30 minutos (de ambiente a 100°C) |
| Tiempo de enfriamiento | 45 minutos (de ambiente a -10°C) |
| Tensión de alimentación | 115 V CA, 60 Hz |
| Consumo de potencia | 1200 W |
| Controlador | Controlador digital de microprocesador con pantalla LED |
| Dimensiones exteriores | 52 cm (ancho) x 58 cm (alto) x 56 cm (profundidad) |
Test Equity 1016C Options:
- 1016C - Watlow F4T - Touch Screen Controller with RS-232, Ethernet interface, 4.3" color graphic touch screen
- 1016C - Watlow F4 - Controller with RS-232 interface, LED readout of temperature, LCD display of other parameters
- 1016C - DR4300 - Honeywell DR4300 Series Chart Recorder (Optional): One pen, 10" circular chart, mounts in lower front door
| Model | 1016C |
|---|

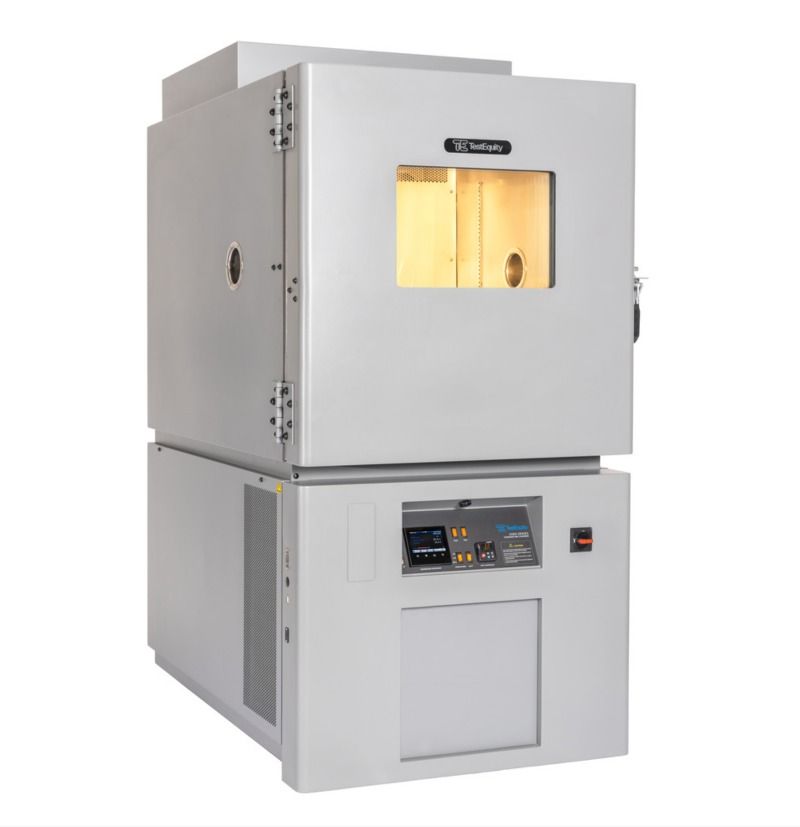

TEST EQUITY 1016C Temperature Chamber
The Test Equity Model 1016C Temperature Chamber provides 16 Cubic Feet of chamber workspace. It is designed to fit the industry-standard 16 Cu Ft footprint, allowing you to fit a TestEquity 1016C in the same space as models from other manufacturers. It shares the same features as the 1007C and 1027C models plus a host of additional benefits, including a 3.5 HP Scroll Compressors for reliable and efficient operation, Optional Shelf Slides, Optional Glove Ports and Field Retrofittable GN2 and Dry Air Purge.
TestEquity Cascade refrigeration systems, included in the 1016C, are capable of achieving workspace temperatures down to -73 °C. This is required for many ruggedized industrial, automotive and military tests that require low temperatures of typically -40 °C, -55 °C or -65 °C. The stainless-steel interior liner is heliarc welded, while the refrigeration compartment behind the liner is double-insulated and carefully sealed. These design features reduce thermal losses and prevent moisture migration, ensuring years of optimum performance while keeping the cabinet rust-free. The Test Equity 1016C includes two alarms and seven event outputs to control remote devices. RS-232C communications is also included. GPIB, Ethernet and analog retransmit are available as options.
Specifications for the TEST EQUITY 1016C Temperature Chamber Include:
| Temp Range | -73 °C to +175 °C |
| Workspace | 16 Cu Ft |
| Control Tolerance | ±0.5 °C ( ±0.2 °C Typical) |
| Uniformity | ±1.0 °C |
