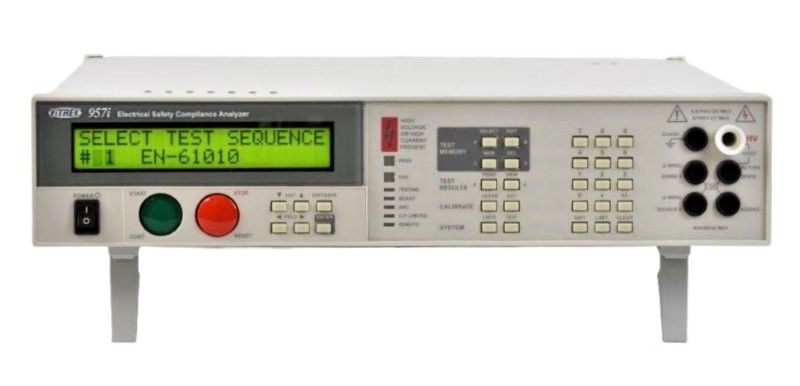

Vitrek 957I
| Atributo | Valor |
|---|---|
| Voltaje de prueba máximo | 10 kV CC / 10 kV CA |
| Corriente de prueba máxima | 30 mA |
| Modos de prueba | Resistencia de aislamiento (IR), Rigidez dieléctrica CC (DC-HiPot), Rigidez dieléctrica CA (AC-HiPot), Resistencia de continuidad |
| Rango de medición de resistencia de aislamiento | Hasta 100 TΩ |
| Precisión de voltaje | ±1% de la lectura |
| Interfaz de comunicación | USB, RS-232, GPIB (opcional) |
| Pantalla | Pantalla gráfica a color con visualización en tiempo real de corriente y voltaje |
| Funciones de seguridad | Detección de arco eléctrico, límites de fallo programables, interrupción automática en caso de fallo |
| Alimentación eléctrica | 100 – 240 V CA, 50/60 Hz |
| Dimensiones y peso | Formato de media anchura de rack 2U; peso aproximado de 9 kg |
Vitrek 957I Options:
- 957I - 500VA - 500VA Output Option
- 957I - AC-2 - 200mA 2 KVAC Max Output Option
- 957I - AC-30 - 30KVAC External Option
- 957I - RPOO-95 - Rear Panel Only Output Terminals
- 957I - HSS-1 - High Side Current Measurement (for grounded loads)
- 957I - PMT-1 - Pulse Mode / High Speed Flash Test Option
- 957I - GPIB-9 - Optional GPIB Interface
- 957I - ISO-CALN-95X - ISO 17025 Accredited Cal Cert (with purchase)
| Model | 957I |
|---|
VITREK 957i Electrical Safety Compliance Analyzer
Vitrek built the 957i Electrical Safety Analyzer from the ground up with DSP technology €”to bring you the safest, fastest, most capable, feature rich hipot testers available. The 957i combines high output power, with a wide range of AC & DC voltage outputs and extremely low leakage cur measurement. Speed and power go hand in hand, the 6.5KVDC offers 50mA of source cur for DC Hipot €”providing the power you need to rapidly charge and discharge challenging DUTs.
When it comes to making critical leakage cur measurements, the Vitrek 957i delivers rock-solid resolution down to 100 pico-amps. This high resolution provides built-in insulation resistance measurement (IR) up to a Tera-ohm, add a 4-wire milli-ohmmeter with autoranging up to 100K ohm and an available 40 amp Ground Bond function. The 957i has the ability to directly control up to four 64 channel HV scanners, right out of the box. That is up to 256 test points and using a PC with Vitrek's QuickTest Pro software you can expand the count up to 640 test points. The Vitrek 957i Electrical Safety Compliance Analyzer is the result of this pursuit €”offering power, speed, accuracy and resolution that leave the others far behind.
Specifications for the VITREK 957i Electrical Safety Compliance Analyzer Include:
| AC Hipot | 20V - 6KV |
| Max Std Current | 50mA |
| DC Hipot / IR | 30V - 15kV |
| MAX IR | 4T |
