Yokogawa

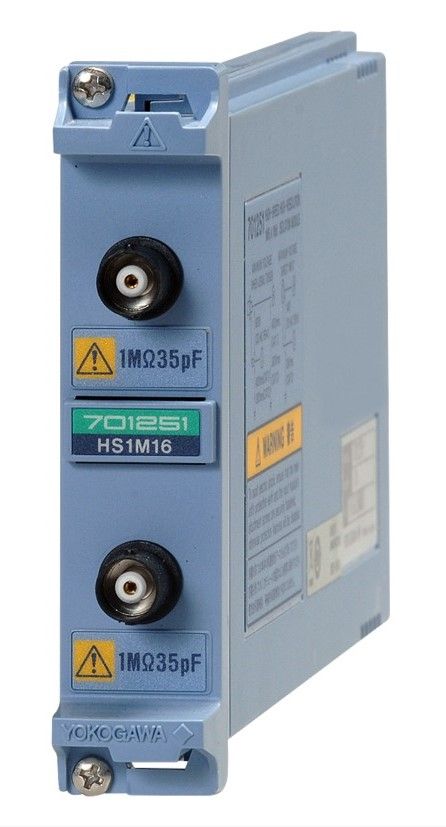

Yokogawa 701251

Analog Voltage Input Module, High-Speed 1 Ms/s 16-Bit Isolation Module (2 ch)

16 canales Número de Canales

500 MHz Ancho de Banda

2,5 GS/s Frecuencia de Muestreo

6,25 M palabras por canal Longitud de Registro

12 bits Resolución Vertical

Solicitar ficha técnica

Atributo	Valor
Número de Canales	16 canales
Ancho de Banda	500 MHz
Frecuencia de Muestreo	2,5 GS/s
Longitud de Registro	6,25 M palabras por canal
Resolución Vertical	12 bits
Rango de Voltaje de Entrada	2 mV/div a 20 V/div
Impedancia de Entrada	1 MΩ / 50 Ω
Pantalla	Pantalla LCD TFT a color de 12,1 pulgadas
Interfaz de Comunicación	Ethernet, USB, GP-IB
Fuente de Alimentación	100-240 V CA, 50/60 Hz

Yokogawa 701251 Options:

701251 - 701947 - 100:1 Probe (for isolated BNC input) 1000 V (DC+ACpeak) CAT II, 1.5 m
701251 - 702902 - 10:1 Probe (for isolated BNC input) operating temp. range: −40 to 85°C, 2.5 m
701251 - 700929 - 10:1 Probe (for isolated BNC input) 1000 V (DC+ACpeak) CAT II, 1.5 m
701251 - 701901 - 1:1 Safety BNC adapter lead 1000 Vrms CAT II
701251 - 701904 - 1:1 Safety Adapter Lead 1000 Vrms CAT II, 600 Vrms CAT III
701251 - B9852MM - Safety mini-clip (Hook type) 1000 Vrms CAT III black
701251 - B9852MN - Safety mini-clip (Hook type) 1000 Vrms CAT III red
701251 - 701954 - Large alligator-clip (Dolphin type) 1000 Vrms CAT II, 1 set each of red and black
701251 - 758929 - Alligator clip adaptor set (Rated voltage 1000 V) 1000 Vrms CAT II, 1 set each of red and black
701251 - 758922 - Alligator clip adaptor set (Rated voltage 300 V) 300 Vrms CAT II, 1 set each of red and black
701251 - 758921 - Fork terminal adapter set 1000 Vrms CAT II, 1 set each of red and black
701251 - 366926 - 1:1 BNC-alligator cable Non-isolated 42 V or less, 1 m
701251 - 366961 - 1:1 Banana-alligator cable Non-isolated 42 V or less, 1.2 m
701251 - 701917 - Current probe 5 Arms, DC to 50 MHz
701251 - 701918 - Current probe 5 Arms, DC to 120 MHz
701251 - 701932 - Current probe 30 Arms, DC to 100 MHz
701251 - 701933 - Current probe 30 Arms, DC to 50 MHz
701251 - 701930 - Current probe 150 Arms, DC to 10 MHz
701251 - 701931 - Current probe 500 Arms, DC to 2 MHz
701251 - 720930 - Clamp-on probe AC 50 Arms
701251 - 720931 - Clamp-on probe AC 200 Arms
701251 - 701934 - Probe power supply, large current output, external probe power supply (4 outputs)
701251 - 438920 - Shunt resistor 250 Ω ±0.1%
701251 - 438921 - Shunt resistor 100 Ω ±0.1%
701251 - 438922 - Shunt resistor 10 Ω ±0.1%
701251 - 700924 - Differential probe 1400 Vpk, 1000 Vrms CAT II
701251 - 701926 - Differential probe 7000 Vpk, 5000 Vrms
701251 - 758924 - Safety BNC-banana adapter 500 Vrms CAT II
701251 - 701902 - Safety BNC-BNC cable (1 m) 1000 Vrms CAT II (BNC-BNC)
701251 - 701903 - Safety BNC-BNC cable (2 m) 1000 Vrms CAT II (BNC-BNC)
701251 - 701948 - Plug-on clip for 700929 and 701947
701251 - 701906 - Long test clip for 700924, 701901 and 701926
701251 - 758917 - Measurement lead set, measurement leads (2 per set), alligator-clip required separately
701251 - 758933 - Measurement lead set 1000 V/19 A/1 m length, alligator-clip required separately

Más información
Model	701251

YOKOGAWA 701251 ANALOG VOLTAGE INPUT MODULE

The Yokogawa 701251 Analog Voltage Input Module is a two input channel, high speed, isolation module designed to provide a high sensitivity range, low noise, and high noise immunity.

Features and Specifications of the Yokogawa 701251 Analog Voltage Input Module include:

Features:

High Speed: 1Ms/s
High Sensitivity Range: 10 mV
Low Noise: ±100 Î¼V (typical)
High noise immunity

Specifications:

Effective measurement range: Twice of setting range
Number of input channels: 2
Input coupling: AC, DC, and GND
Maximum sample rate: 1 MS/s
Input format: Isolated unbalanced
Frequency characteristics (-3 dB point when a sine wave of amplitude 60% of range is input):

50 mV to 200 V range: DC to 300 kHz
20 mV and 10 mV range: DC to 200 kHz

Voltage-axis range setting: 10 mV to 200 V range (1-2-5 steps)
Maximum input voltage (at frequency of 1 kHz or less):

Combined with the 700929 (10:1): 600 V (DC+AC_peak)
Combined with the 701901+701954 (1:1): 140 V (DC+AC_peak)

Direct input or cable not complying w/safety standard: 140V (DC+AC_peak)

Maximum allowable common mode voltage (at a frequency of 1 kHz or less):

Working voltage of safety standard
Combined with the 700929 (10:1) or combined with the 701901+701954 (1:1): 400 V_rms (CAT l), 300 V_rms (CAT ll)

Direct input or cable not complying w/safety standard: 42 V (DC+AC_peak)(CAT l and CAT ll, 30 V_rms)

Vertical (voltage) axis accuracy DC accuracy:

50 mV to 200V range: ±(0.25% of range)
20 mV range: ±(0.3% of range)
10 mV range: ±(0.5% of range)

Input connector: BNC connector (isolated type)
-3 dB point when AC coupled low frequency attenuation point: 10 Hz or less (1 Hz or less when using the 700929)
Common mode rejection ratio: 80 dB (50/60 Hz) or more (typical)
Residual noise level (input section shorted): ±100 Î¼ V or ±0.1% of range, whichever is greater (typical)
Withstand voltage: 1500 V_rms for 1 minute (across each terminal and earth) (60 Hz)
Allowable transient surge voltage (instantaneous): ±2100 V_peak (across each input terminal and earth)
A/D conversion resolution: 16 bit (2400 LSB/range)
Temperature coefficient:

Zero point:

50 mV to 200 V range: ±(0.02% of range)/ ºC(typical)
20 mV range: ±(0.05% of range)/ ºC(typical)
10 mV range: ±(0.10% of range)/ ºC(typical)

Gain: 10 mV to 200 V range: ±(0.02% of range)/ ºC(typical)

Bandwidth limit:

Select from OFF, 40 kHz, 4 kHz, and 400 Hz
Cut-off characteristics: -12 dB/OCT (typical)

Probe attenuation setting:

Voltage probe: 1:1, 10:1, 100:1, 1000:1
Cur probe: 10 A:1 V (for the 700937/701933), 100 A: 1 V (for the 701930/701931)

Reference junction compensation accuracy (When the input terminal temperature is balanced:

K, E, J, T, L, U, N: ±1 C
R, S, B, W: ±1.5 C
Au7Fe: ±1K

Bandwidth limit (digital filter): Select from OFF, 30 Hz, 8 Hz, and 2 Hz
Input bias current: 20 nA or less
