Yokogawa 720211
| Atributo | Valor |
|---|---|
| Número de canales | 16 canales |
| Ancho de banda | 500 MHz |
| Frecuencia de muestreo | 2 GS/s (en tiempo real) |
| Longitud de registro | hasta 1 M palabras por canal |
| Resolución vertical | 8 bits |
| Rango de tensión de entrada | 2 mV/div a 10 V/div |
| Impedancia de entrada | 1 MΩ / 50 Ω |
| Base de tiempos | 1 ns/div a 50 s/div |
| Interfaz de comunicación | GPIB, RS-232C, Ethernet |
| Alimentación eléctrica | 100-240 V CA, 50/60 Hz |
Yokogawa 720211 Options:
- 720211 - 701947 - 100:1 Probe (for isolated BNC input) 1000 V (DC + ACpeak) CAT II, 1.5 m
- 720211 - 702902 - 10:1 Probe (for isolated BNC input) Operating temp. range: −40 to 85°C, 2.5 m
- 720211 - 700929 - 10:1 Probe (for isolated BNC input) 1000 V (DC + ACpeak) CAT II, 1.5 m
- 720211 - 701901 - 1:1 Safety BNC adapter lead 1000 Vrms CAT II
- 720211 - 701904 - 1:1 Safety Adapter Lead 1000 Vrms CAT II, 600 Vrms CAT III
- 720211 - 758928 - Pinchers tip (Hook type) 1000 Vrms CAT III, 1 set each of red and black
- 720211 - 701954 - Large alligator-clip (Dolphin type) 1000 Vrms CAT III, 1 set each of red and black
- 720211 - 758929 - Alligator clip adaptor set (Rated voltage 1000 V) 1000 Vrms CAT II, 1 set each of red and black
- 720211 - 758922 - Alligator clip adaptor set (Rated voltage 300 V) 300 Vrms CAT II, 1 set each of red and black
- 720211 - 758921 - Fork terminal adapter set 1000 Vrms CAT II, 1 set each of red and black
- 720211 - 701948 - Plug-on clip for 700929 and 701947
- 720211 - 701906 - Long test clip for 701977, 701978 and 701901
- 720211 - 701902 - Safety BNC-BNC cable (1 m) 1000 Vrms CAT II
- 720211 - 701903 - Safety BNC-BNC cable (2 m) 1000 Vrms CAT II
- 720211 - 702915 - Current probe 0.5, 5, 30 Arms, DC to 50 MHz
- 720211 - 702916 - Current probe 0.5, 5, 30 Arms, DC to 120 MHz
- 720211 - 701917 - Current probe 5 Arms, DC to 50 MHz
- 720211 - 701918 - Current probe 5 Arms, DC to 120 MHz
- 720211 - 701932 - Current probe 30 Arms, DC to 100 MHz
- 720211 - 701933 - Current probe 30 Arms, DC to 50 MHz
- 720211 - 701930 - Current probe 150 Arms, DC to 10 MHz
- 720211 - 701931 - Current probe 500 Arms, DC to 2 MHz
- 720211 - 720930 - Clamp-on probe AC 50 Arms, 40 Hz to 3.5 kHz
- 720211 - 720931 - Clamp-on probe AC 200 Arms, 40 Hz to 3.5 kHz
- 720211 - 701934 - Probe power supply, large current output, external probe power supply (4 outputs)
- 720211 - 701977 - Differential probe 5000 Vrms and 7000 Vpeak or less
- 720211 - 701978 - Differential probe ±1500 V (DC + ACpeak)
- 720211 - 758933 - Measurement lead set 1000 V/19 A/1 m length
- 720211 - 366926 - 1:1 BNC-alligator cable, non-isolated 42 V or less, 1 m
- 720211 - 366961 - 1:1 Banana-alligator cable, non-isolated 42 V or less, 1.2 m
- 720211 - 438920 - Shunt resistor 250 Ω ±0.1%
- 720211 - 438921 - Shunt resistor 100 Ω ±0.1%
- 720211 - 438922 - Shunt resistor 10 Ω ±0.1%
- 720211 - 758924 - Safety BNC-banana adapter 500 Vrms CAT II
| Model | 720211 |
|---|

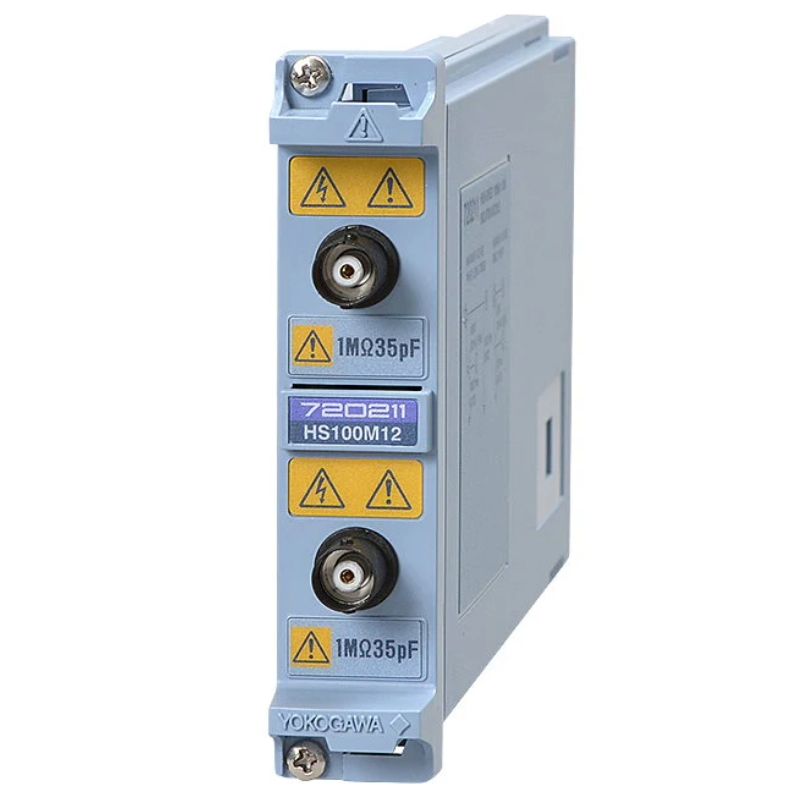

Yokogawa 720211 High-Speed 100 MS/s 12-Bit Isolation Module
The Yokogawa 720211 High-Speed 100 MS/s 12-Bit Isolation Module is designed for use with Yokagawa ScopeCoders, specifically the DL350 series. It's IsoPRO technology enables 1kV isolated measurements in combination with 700929 or 701947 probe and is designed for inverter / IGBT related applications in mind. Using high speed optical fiber-based transmission, Yokogawa 720211 High-Speed Module achieves high speed ADC clock and data isolation.
Yokogawa 720211 High-Speed 100 MS/s 12-Bit Isolation Module provides the performance needed to develop high efficiency inverters, which employ high voltages, large currents, and ever increasing switching speeds. It features 100 MS/s sampling rate, allowing for detailed capture of fast-changing signals. This module is particularly useful for applications involving power electronics, motor drives, and other high -peed, high-voltage systems. Yokogawa 720211 High-Speed 100 MS/s 12-Bit Isolation Module provides the necessary performance and safety features to accurately measure and analyze these challenging signals.
Specifications for the Yokogawa 720211 High-Speed 100 MS/s 12-Bit Isolation Module:
| Input channels | 2 |
| Sample rate | 100 MS/s |
| Resolution | 12 bit |
| Bandwidth | 20 MHz |
