Yokogawa 720230
| Atributo | Valor |
|---|---|
| Número de canales | 16 canales |
| Velocidad de muestreo máxima | 100 MS/s |
| Resolución vertical | 12 bits |
| Ancho de banda | 20 MHz |
| Longitud de registro | hasta 1 MW por canal |
| Rango de entrada | ±10 mV a ±100 V |
| Aislamiento de entrada | Aislamiento galvánico entre canales |
| Interfaz de comunicación | Ethernet (100BASE-TX), USB, GP-IB |
| Formato de almacenamiento | Tarjeta PC, disco duro interno, USB |
| Fuente de alimentación | 100-240 V CA, 50/60 Hz |
Yokogawa 720230 Options:
- 720230 - 702911 - Logic Probe (TTL level/contact input) 8 bit, 1 m, non-Isolated
- 720230 - 702912 - Logic Probe (TTL level/contact input) 8 bit, 3 m, non-Isolated
- 720230 - 700986 - High-Speed Logic Probe, 8 bit, non-isolated, response speed: 1 µs (typ.)
- 720230 - 700987 - Isolation Logic Probe, 8 bit, each channel isolated
| Model | 720230 |
|---|
Yokogawa 720230 (call for availability)

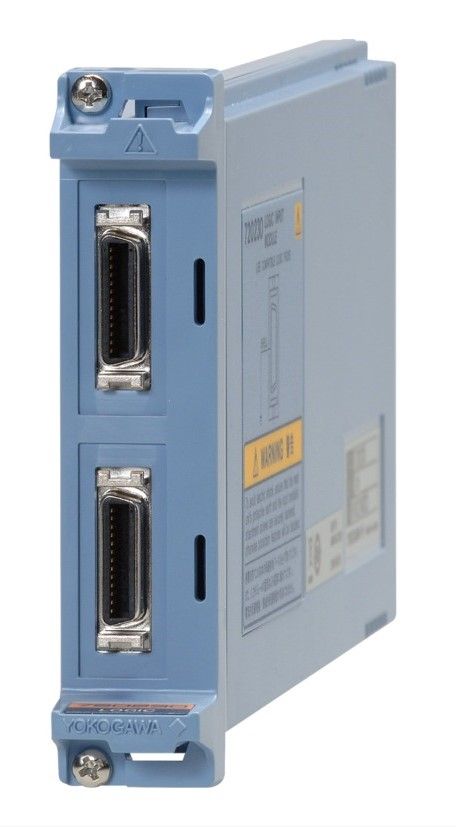

The Yokogawa 720230 Logic Input Module, 2x 8-bit ports, used in the , allows input logic signals to be displayed as waveforms at a sampling resolution of up to 10 MS/s. Each port can measure 8 bits, and 2 ports of input are available on each module. Thus, a single module can observe 16-bit logic signals. You can turn display of individual bits ON/OFF, and give each bit its own unique label.
In all, you can input and display up to 128 bits of logic signals by installing up to 8 modules in a single DL850. You can select from 4 diffe types of logic probe to best fit the input signal.
The input format, maximum input voltage, threshold level, and other settings depend on the logic probe being used. Please refer to the specifications of your logic probe. The following logic probes can be used.
