Yokogawa 720241
| Atributo | Valor |
|---|---|
| Número de Canales | 16 canales |
| Velocidad de Muestreo Máxima | 1 MS/s |
| Resolución | 16 bits |
| Rango de Voltaje de Entrada | ±10 V |
| Aislamiento de Canal | Aislamiento entre canales incluido |
| Tipo de Módulo | Módulo de entrada de voltaje de alta velocidad |
| Compatibilidad | Compatible con sistema ScopeCorder DL750/DL750P |
| Impedancia de Entrada | 1 MΩ |
| Ancho de Banda | 100 kHz |
| Temperatura de Funcionamiento | 0 °C a 40 °C |
Yokogawa 720241 Options:
- 720241 - 701947 - 100:1 Probe (for isolated BNC input) 1000 V (DC + ACpeak) CAT II, 1.5 m
- 720241 - 702902 - 10:1 Probe (for isolated BNC input) Operating temp. range: −40 to 85°C, 2.5 m
- 720241 - 700929 - 10:1 Probe (for isolated BNC input) 1000 V (DC + ACpeak) CAT II, 1.5 m
- 720241 - 701901 - 1:1 Safety BNC adapter lead 1000 Vrms CAT II
- 720241 - 701904 - 1:1 Safety Adapter Lead 1000 Vrms CAT II, 600 Vrms CAT III
- 720241 - 758928 - Pinchers tip (Hook type) 1000 Vrms CAT III, 1 set each of red and black
- 720241 - 701954 - Large alligator-clip (Dolphin type) 1000 Vrms CAT III, 1 set each of red and black
- 720241 - 758929 - Alligator clip adaptor set (Rated voltage 1000 V) 1000 Vrms CAT II, 1 set each of red and black
- 720241 - 758922 - Alligator clip adaptor set (Rated voltage 300 V) 300 Vrms CAT II, 1 set each of red and black
- 720241 - 758921 - Fork terminal adapter set 1000 Vrms CAT II, 1 set each of red and black
- 720241 - 701902 - Safety BNC-BNC cable (1 m) 1000 Vrms CAT II
- 720241 - 701903 - Safety BNC-BNC cable (2 m) 1000 Vrms CAT II
- 720241 - 701906 - Long test clip for 701977, 701978 and 701901
- 720241 - 758924 - Safety BNC-banana adapter 500 Vrms CAT II
| Model | 720241 |
|---|

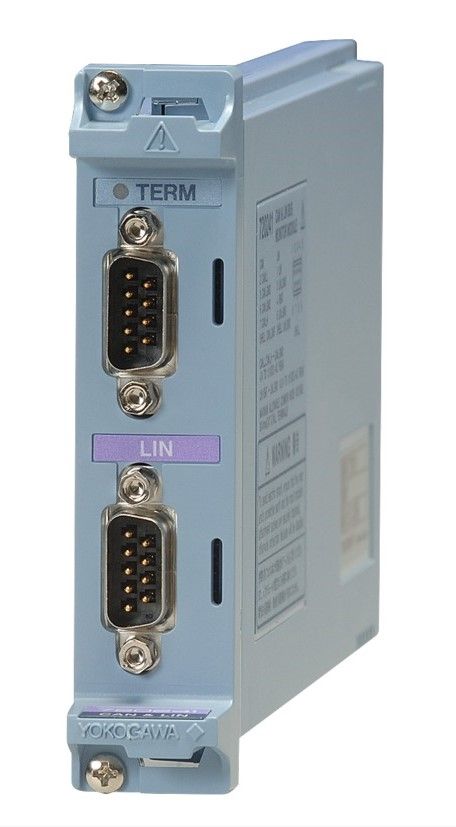

Yokogawa 720241 CAN/LIN Bus Monitor Module
The Yokogawa 720241 CAN/LIN Bus Monitor Module is used for monitoring and analyzing the data transmitted on a CAN or LIN bus. This module is used to decode the CAN or LIN-Bus signals and display information on physical data like engine temperature, vehicle speed and brake-pedal position as analog waveforms and compare this with the data coming from real sensors.
The Yokogawa 720241 CAN/LIN Bus Monitor Module is equipped with one CAN and one LIN input port, enabling a single module to be connected to a CAN and a LIN protocol network. This module interprets vehicle installed communication protocols, monitor the communication data, and display the time series trend waveforms. By combining Yokogawa 720241 CAN/LIN Bus Monitor Module module with other input modules, it can simultaneously measure the communication data in a vehicle, the voltage and temperature, the sensor signals and other changes in analog data over time, as well as ECU (Electronic Control Unit) control logic signals.
Specifications for Yokogawa 720241 CAN/LIN Bus Monitor Module Include:
| Maximum Sample Rate | 100 kS/s |
| Maximum Measurement Voltage | 10V (CAN port), 18V (LIN port) |
| Supported data length | 32 bits |
| Input Ports | 2 (1 for CAN, 1 for LIN) |
