Yokogawa
Yokogawa 761922
Harmonic & Flicker Software
Registrador de datos digital Tipo de instrumento
16 canales analógicos Número de canales
0°C a 50°C Rango de temperatura de funcionamiento
±0,1% de la escala completa Precisión de medición
Ethernet, RS-232C, USB Interfaz de comunicación
| Atributo | Valor |
|---|---|
| Tipo de instrumento | Registrador de datos digital |
| Número de canales | 16 canales analógicos |
| Rango de temperatura de funcionamiento | 0°C a 50°C |
| Precisión de medición | ±0,1% de la escala completa |
| Interfaz de comunicación | Ethernet, RS-232C, USB |
| Pantalla | Pantalla LCD a color de 10,4 pulgadas |
| Almacenamiento de datos | Tarjeta CompactFlash y memoria interna |
| Fuente de alimentación | 100 a 240 V CA, 50/60 Hz |
| Velocidad de muestreo | Hasta 10 muestras por segundo por canal |
| Cumplimiento normativo | CE, UL, CSA |
Yokogawa 761922 Options:
- WT3000 - /G6 - Advanced Computation (IEC standard testing, harmonic, FFT, Waveform computation)
- WT3000 - /B5 - Built-in Printer
- WT3000 - /DT - Delta Calculation
- WT3000 - /FQ - Add-on Frequency Measurement
- WT3000 - /DA - 20ch D/A output
- WT3000 - /V1 - VGA Output
- WT3000 - /C2 - Serial (RS-232) Interface
- WT3000 - /C12 - USB port (PC)
- WT3000 - /C5 - USB port (Peripheral)
- WT3000 - /C7 - Ethernet function
- WT3000 - /CC - Cycle by Cycle
- WT3000 - /FL - Voltage Fluctuation, Flicker
- WT3000 - 760301 - WT3000 1 input element model
- WT3000 - 760302 - WT3000 2 input elements model
- WT3000 - 760303 - WT3000 3 input elements model
- WT3000 - 760304 - WT3000 4 input elements model
- 751574 - 751574 - Current Transducer DC to 100 kHz/600Apk
- 751574 - B8200JQ - Output connector, D-SUB 9-pin with 2 screws (sold separately)
- 751574 - B8200JR - Load resistors (4 in parallel) (sold separately)
| Model | 761922 |
|---|

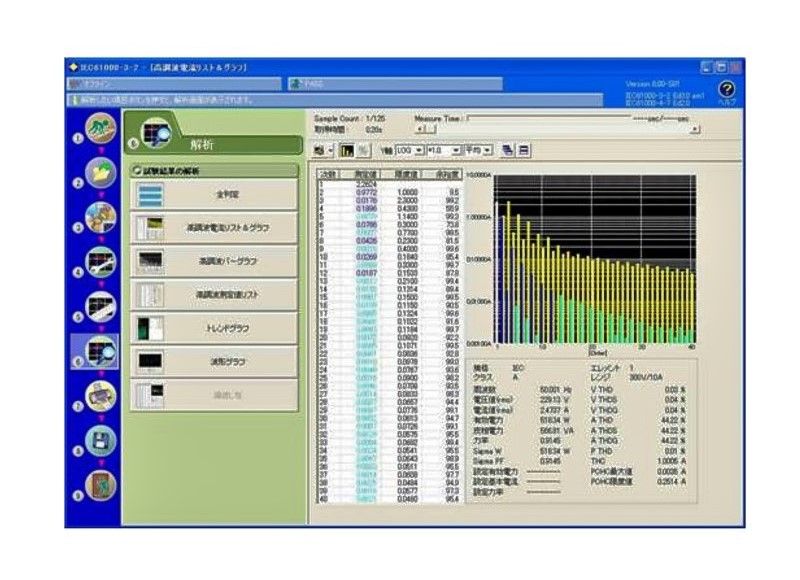

YOKOGAWA 761922 Harmonic & Flicker Software for WT3000
The measurement procedures and settings for harmonic/flicker standards testing have been precisely defined. Engineers must also stay cur with the specialized knowledge and up-to-date information required to periodically review the contents of the standards and perform the standards conformance tests. The model 761922 Harmonic/Flicker Measurement Software enables engineers without specialized knowledge to perform a range of operations using the WT3000 Precision Power Analyzer including judging standards compliance and outputting test reports.
