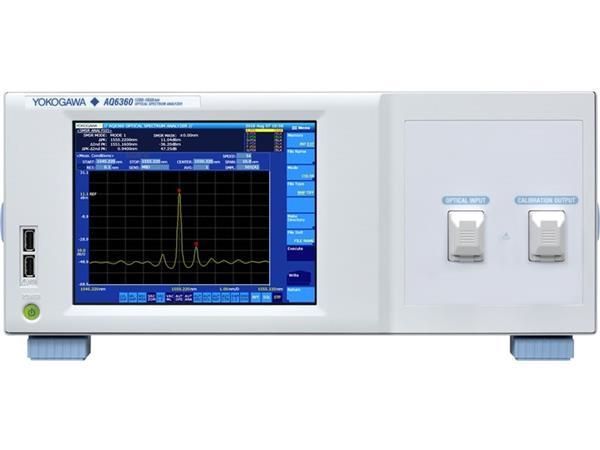

Yokogawa AQ6360
Optical Spectrum Analyzer 1200 - 1650 nm
1200 nm – 1650 nm Rango de longitud de onda
0,02 nm Resolución de longitud de onda
±0,05 nm Precisión de longitud de onda
≥ 60 dB Rango dinámico
-80 dBm a +20 dBm Rango de nivel de potencia
| Atributo | Valor |
|---|---|
| Rango de longitud de onda | 1200 nm – 1650 nm |
| Resolución de longitud de onda | 0,02 nm |
| Precisión de longitud de onda | ±0,05 nm |
| Rango dinámico | ≥ 60 dB |
| Rango de nivel de potencia | -80 dBm a +20 dBm |
| Precisión de nivel | ±0,5 dB |
| Tipo de conector de entrada | Conector de fibra óptica universal (FC/PC, SC, LC adaptable) |
| Interfaz de comunicación | USB, LAN (Ethernet) |
| Pantalla | Pantalla táctil TFT a color de 7 pulgadas |
| Fuente de alimentación | 100 – 240 V CA, 50/60 Hz |
Yokogawa AQ6360 Options:
- AQ6360 - -10 - Standard model
- AQ6360 - -FC - AQ9447 (FC) Connector Adapter (Optical input connector)
- AQ6360 - -SC - AQ9447 (SC) Connector Adapter (Optical input connector)
- AQ6360 - -D1 - Built-in display
- AQ6360 - -D - Power cord, UL/CSA standard and PSE compliant, 125 V
- AQ6360 - -F - Power cord, VDE/Korean standard, 250 V
- AQ6360 - -H - Power cord, Chinese standard, 250 V
- AQ6360 - -Q - Power cord, British standard, 250 V
- AQ6360 - -R - Power cord, Australian standard, 250 V
- AQ6360 - -N - Power cord, Brazilian standard, 250 V
- AQ6360 - -T - Power cord, Taiwanese standard, 125 V
- AQ6360 - -B - Power cord, Indian standard, 250 V
- AQ6360 - -U - Power cord, IEC Plug Type B, 250 V
- AQ6360 - /LFC - Wavelength reference source (FC connector)
- AQ6360 - /LSC - Wavelength reference source (SC connector)
| Model | AQ6360 |
|---|
Yokogawa AQ6360 Telecom Production Optical Spectrum Analyzer 1200 - 1650 nm
Ideal performance for manufacturing tests
The AQ6360 satisfies the typical measurement needs of industrial manufacturing of telecom devices such as lasers, optical transceivers and optical amplifiers.Wavelength range: 1200 to 1650 nm
Wavelength resolution: 0.1 to 2 nm
High wavelength accuracy: ?0.02 nm
High dynamic range: 55 dB
Wide measurement range: +20 to ?80 dBm
Free space optical input
The free space optical input structure is the most effective to guarantee high coupling efficiency and measurement repeatability.
Dual-purpose, Accepts both single-mode and multimode optical fibers
Versatile, Accepts both flat and angle polished connectors
Worry free, Damage proof internal input connector
Maintenance-free, No internal fiber to clean
Description
The AQ6360 is the fastest optical spectrum analyzer for optical device manufacturing offered by Yokogawa. It is a cost-effective optical spectrum analyzer ideal for industrial manufacturing of telecom devices such as lasers, optical transceivers and optical amplifiers. The AQ6360 features a wavelength range of 1200 to 1650 nm for ideal manufacturing test performance. Its free space optical input structure design allows for guaranteed high coupling efficiency and measurement repeatability. Additional features and functions of the AQ6360 include built-in analysis functions and Ethernet and GPIB remote interfaces.
