Yokogawa

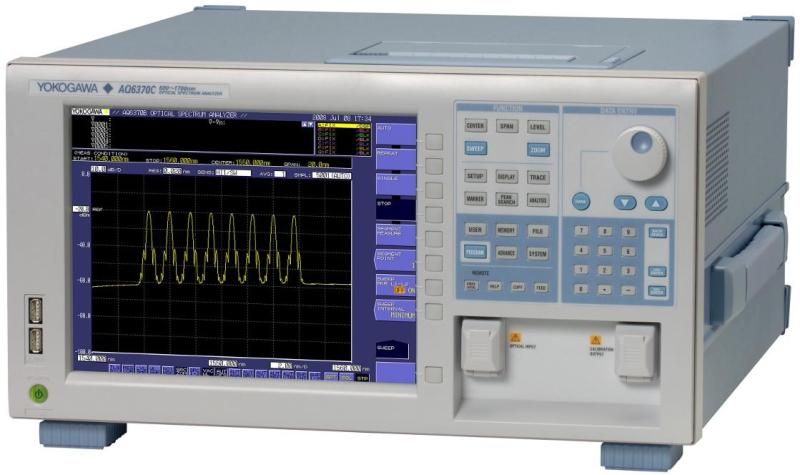

Yokogawa AQ6370C
600 to 1700nm Optical Spectrum Analyser
600 nm – 1700 nm Rango de longitud de onda
0,02 nm – 10 nm (variable) Resolución de longitud de onda
±0,01 nm Precisión de longitud de onda
78 dB Rango de potencia dinámica
+20 dBm – -90 dBm Rango de nivel de potencia
| Atributo | Valor |
|---|---|
| Rango de longitud de onda | 600 nm – 1700 nm |
| Resolución de longitud de onda | 0,02 nm – 10 nm (variable) |
| Precisión de longitud de onda | ±0,01 nm |
| Rango de potencia dinámica | 78 dB |
| Rango de nivel de potencia | +20 dBm – -90 dBm |
| Precisión de nivel de potencia | ±0,4 dB |
| Tiempo de barrido | 0,5 s (mínimo, en modo de alta velocidad) |
| Interfaz de comunicación | USB, GPIB, Ethernet (LAN) |
| Pantalla | Pantalla TFT LCD en color de 8,4 pulgadas |
| Alimentación eléctrica | 100 – 240 V CA, 50/60 Hz |
Yokogawa AQ6370C Options:
- AQ6370C - -10 - Standard model
- AQ6370C - -20 - High performance model
- AQ6370C - -D - Power cord: UL/CSA standard
- AQ6370C - -F - Power cord: VDE standard
- AQ6370C - -R - Power cord: AS standard
- AQ6370C - -H - Power cord: GB standard
- AQ6370C - -Q - Power cord: BS standard
- AQ6370C - /FC - AQ9447(FC) Connector Adapter for Optical Input
- AQ6370C - /SC - AQ9447(SC) Connector Adapter for Optical Input
- AQ6370C - /ST - AQ9447(ST) Connector Adapter for Optical Input
- AQ6370C - /RFC - AQ9441(FC) Universal Adapter for Calibration Output
- AQ6370C - /RSC - AQ9441(SC) Universal Adapter for Calibration Output
- AQ6370C - /RST - AQ9441(ST) Universal Adapter for Calibration Output
- AQ6370C - /B5 - Thermal Printer (Factory Installed)
| Model | AQ6370C |
|---|
Wavelength Range: 600 to 1700 nm
Application Fiber: 9/125um 50/125um, 62.5/125um
Dynamic Range at 1523 nm: 37 dB (?0.1 nm from peak resolution: 0.02 nm), 55 dB (?0.2 nm from peak resolution: 0.02 nm) 45 dB (?0.2 nm from peak resolution: 0.05 nm)
& 45 dB ((?0.1 nm from peak resolution: 0.02 nm)
Wavelength Accuracy: ?0.1 nm (Full range)
Wavelength Linearity: ?0.01 nm (1520 to 1580 nm)
Wavelength Repeatability: ?0.005 nm (1 min.)
Polarization Dependency: ?0.05 dB (1550/1600 nm)
Maximum Input Power: 20 dBm (per channel, full range)
GP-IB, RS-232C, and Ethernet (10/100BASE)
Weight without printer option: Appro. 19 kg
