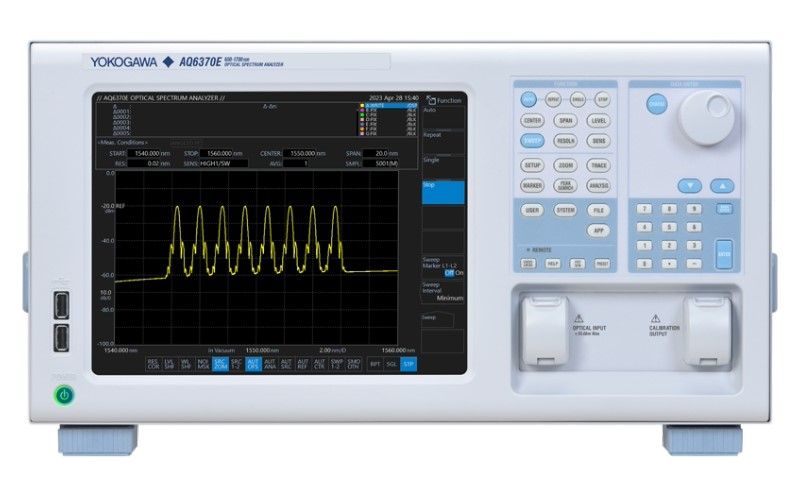

Yokogawa AQ6370E
| Atributo | Valor |
|---|---|
| Rango de longitud de onda | 600 nm – 1700 nm |
| Precisión de longitud de onda | ±0,01 nm |
| Resolución de longitud de onda | 0,02 nm – 10 nm (variable) |
| Rango de nivel de potencia | +20 dBm – -90 dBm |
| Precisión de nivel | ±0,4 dB |
| Rango dinámico | 78 dB o superior |
| Interfaz de conectividad | USB, LAN (Ethernet), GP-IB |
| Tipo de detector | InGaAs (semiconductor de arseniuro de indio y galio) |
| Pantalla | Pantalla TFT a color de 8,4 pulgadas |
| Fibra óptica compatible | Monomodo (SMF) y multimodo (MMF) |
Yokogawa AQ6370E Options:
- AQ6370E - -10 - Standard model
- AQ6370E - -20 - High performance model
- AQ6370E - -L0 - Without light source
- AQ6370E - -L1 - Wavelength reference source (built-in)
- AQ6370E - -D - Power cord: UL/CSA standard and PSE compliant, 125 V
- AQ6370E - -F - Power cord: VDE/Korean standard, 250 V
- AQ6370E - -R - Power cord: Australian standard, 250 V
- AQ6370E - -H - Power cord: Chinese standard, 250 V
- AQ6370E - -Q - Power cord: British standard, 250 V
- AQ6370E - -N - Power cord: Brazilian standard, 250 V
- AQ6370E - -T - Power cord: Taiwanese standard, 125 V
- AQ6370E - -B - Power cord: Indian standard, 250 V
- AQ6370E - -U - Power cord: IEC Plug Type B, 250 V
- AQ6370E - /FC - Factory installed AQ9447 (FC) Connector Adapter for Optical Input
- AQ6370E - /SC - Factory installed AQ9447 (SC) Connector Adapter for Optical Input
- AQ6370E - /RFC - Factory installed AQ9441 (FC) Connector Adapter for Calibration Output
- AQ6370E - /RSC - Factory installed AQ9441 (SC) Connector Adapter for Calibration Output
| Model | AQ6370E |
|---|
YOKOGAWA AQ6370E Optical Spectrum Analyzer
The Yokogawa AQ6370E Optical Spectrum Analyzer is designed with extensive experience in optical Test & Measurement, stands out as the most reliable and versatile Optical Spectrum Analyzers. This instrument offers exceptional resolution, sensitivity, and a wide measurement power range, making it suitable for diverse applications in R&D and manufacturing. Due to the diffractive technology used, the monochromator in some circumstances could generate high order diffracted light, which appears at wavelengths equal to the integral multiple of input wavelengths. By cutting incoming light below 1150 nm with the built-in filter, the AQ6370E drastically reduces the influence of high order diffracted light on the measurement. Thus, the measured data are always reliable and replicate the real signal under test.
The Yokogawa AQ6370E Optical Sprctrum Analyzer's flexibility allows users to fine-tune parameters for specific testing requirements. The AQ6370E also has the high wavelength accuracy of ±0.1 nm over the whole wavelength range. The high wavelength accuracy is achieved in the S, C, and L bands. With fast measurement capabilities and built-in analysis functions, the AQ6370E optimizes productivity and cost-effectiveness in optical device evaluation. It also offers application-specific modes and remote control options, making it a valuable tool in various industries, from telecommunications to instrumentation and beyond.
Specifications for the YOKOGAWA AQ6370E Optical Spectrum Analyzer Include:
| Wavelength Range | 600 to 1700 nm |
| Wavelength Resolution Settings | 0.02, 0.05, 0.1, 0.2, 0.5, 1 and 2 nm |
| Level Sensitivity | -90 dBm |
| Wavelength Accuracy | ±0.01 nm ( ±0.10 nm Full Range) High Performance |
