Yokogawa AQ6374E
| Atributo | Valor |
|---|---|
| Rango de longitud de onda | 350 nm – 1750 nm |
| Precisión de longitud de onda | ±0,05 nm |
| Resolución de longitud de onda | 0,02 nm |
| Rango de nivel de potencia | +20 dBm a -90 dBm |
| Precisión de nivel de potencia | ±0,4 dB |
| Rango dinámico | 78 dB o superior |
| Interfaz de comunicación | USB, GPIB, Ethernet (LAN) |
| Pantalla | Pantalla LCD en color de 8,4 pulgadas |
| Conector de entrada óptica | Conector universal (FC, SC, ST adaptable) |
| Fuente de alimentación | 100 – 240 V CA, 50/60 Hz |
Yokogawa AQ6374E Options:
- AQ6374E - -10 - Standard model
- AQ6374E - -L1 - Wavelength reference source (Built-in light source)
- AQ6374E - -D - Power cord: UL/CSA standard and PSE compliant, 125 V
- AQ6374E - -F - Power cord: VDE/Korean standard, 250 V
- AQ6374E - -R - Power cord: Australian standard, 250 V
- AQ6374E - -H - Power cord: Chinese standard, 250 V
- AQ6374E - -Q - Power cord: British standard, 250 V
- AQ6374E - -N - Power cord: Brazilian standard, 250 V
- AQ6374E - -T - Power cord: Taiwanese standard, 125 V
- AQ6374E - -B - Power cord: Indian standard, 250 V
- AQ6374E - -U - Power cord: IEC Plug Type B, 250 V
- AQ6374E - /FC - Factory installed: AQ9447 (FC) Connector Adapter for Optical Input
- AQ6374E - /SC - Factory installed: AQ9447 (SC) Connector Adapter for Optical Input
- AQ6374E - /RFC - Factory installed: AQ9441 (FC) Connector Adapter for Calibration Output
- AQ6374E - /RSC - Factory installed: AQ9441 (SC) Connector Adapter for Calibration Output
| Model | AQ6374E |
|---|

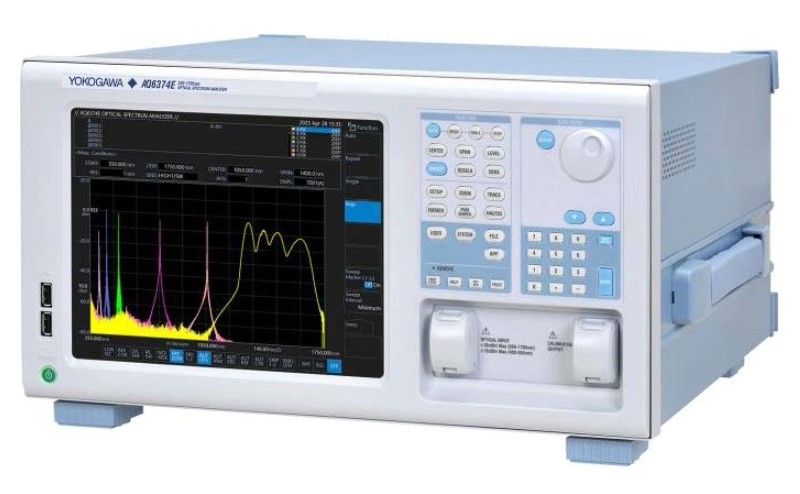

YOKOGAWA AQ6374E Optical Spectrum Analyzer
The Yokogawa AQ6374E Optical Spectrum Analyzer is designed with extensive experience in optical Test & Measurement, stands out as the most reliable and versatile Optical Spectrum Analyzers. This instrument offers exceptional resolution, sensitivity, and a wide measurement power range, making it suitable for diverse applications in R&D and manufacturing. The AQ6374E excels in eliminating interference from water vapor and high order diffracted light, ensuring accurate measurements.
The Yokogawa AQ6374E Optical Sprctrum Analyzer's flexibility allows users to fine-tune parameters for specific testing requirements. With fast measurement capabilities and built-in analysis functions, the AQ6374E optimizes productivity and cost-effectiveness in optical device evaluation. It also offers application-specific modes and remote control options, making it a valuable tool in various industries, from telecommunications to instrumentation and beyond.
Specifications for the YOKOGAWA AQ6374E Optical Spectrum Analyzer Include:
| Wavelength Range | 350 to 1750 nm |
| Wavelength Resolution Settings | 0.05, 0.1, 0.2, 0.5, 1, 2, 5, 10 nm |
| Level Sensitivity | -80 dBm |
| Wavelength Accuracy | ±0.05 nm ( ±0.20 nm Full Range) |
