Yokogawa AQ6375E
| Atributo | Valor |
|---|---|
| Rango de longitud de onda | 1200 nm – 2400 nm |
| Precisión de longitud de onda | ±0,5 nm |
| Resolución de longitud de onda | 0,05 nm – 10 nm |
| Rango dinámico | 60 dB o superior |
| Rango de nivel de potencia | -90 dBm – +20 dBm |
| Precisión del nivel de potencia | ±0,4 dB |
| Conector de fibra óptica de entrada | FC/PC (estándar) |
| Interfaz de comunicación | USB, GPIB, Ethernet (LAN) |
| Pantalla | Pantalla TFT en color de 8,4 pulgadas |
| Fuente de alimentación | 100 – 240 V CA, 50/60 Hz |
Yokogawa AQ6375E Options:
- AQ6375E - -10 - Standard model
- AQ6375E - -20 - Extended model
- AQ6375E - -01 - Limited model
- AQ6375E - -L1 - Wavelength reference source (built-in light source)
- AQ6375E - -D - Power cord: UL/CSA standard and PSE compliant, 125 V
- AQ6375E - -F - Power cord: VDE/Korean standard, 250 V
- AQ6375E - -R - Power cord: Australian standard, 250 V
- AQ6375E - -H - Power cord: Chinese standard, 250 V
- AQ6375E - -Q - Power cord: British standard, 250 V
- AQ6375E - -N - Power cord: Brazilian standard, 250 V
- AQ6375E - -T - Power cord: Taiwanese standard, 125 V
- AQ6375E - -B - Power cord: Indian standard, 250 V
- AQ6375E - -U - Power cord: IEC Plug Type B, 250 V
| Model | AQ6375E |
|---|

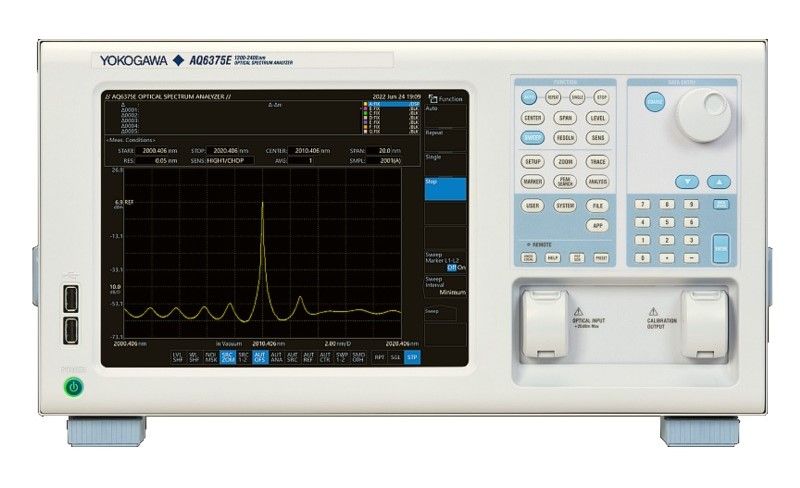

YOKOGAWA AQ6375E Optical Spectrum Analyzer
The Yokogawa AQ6375E can quickly measure optical characteristics of devices, such as LD, LED light sources, and optical amplifiers. It also has a touch screen and a zoom feature to make it easier to use. Due to the diffractive technology used, the monochromator in some circumstances could generate high order diffracted light, which appears at wavelengths equal to the integral multiple of input wavelengths. By cutting incoming light below 1150 nm with the built-in filter, the AQ6375E drastically reduces the influence of high order diffracted light on the measurement. Thus, the measured data are always reliable and replicate the real signal under test.
The AQ6375E covers not only the wavelength span used in communications, but also the 2 µm region which is used for environmental sensing, medical, biology and industrial applications. It can measure optical power from +20dBm down to -70dBm thanks to its high-dynamic and very low noise components and circuits used for photo detection. This enables precise measurements of both high power and low power sources. The AQ6375E uses a double-pass monochromator structure to achieve high wavelength resolution (0.05 nm) and wide close-in dynamic range (55 dB). Thus, closely allocated signals and noise can be separately measured.
Specifications for the YOKOGAWA AQ6375E Optical Spectrum Analyzer Include:
| Wavelength Range |
1200 to 2400 nm Standard 1000 to 2500 nm Extended (optional) |
| Wavelength accuracy | ± 0.5 nm (Full range) |
| Minimum sampling resolution | 0.002 nm |
| Polarization dependence | ±0.1 dB (1550 nm) |
