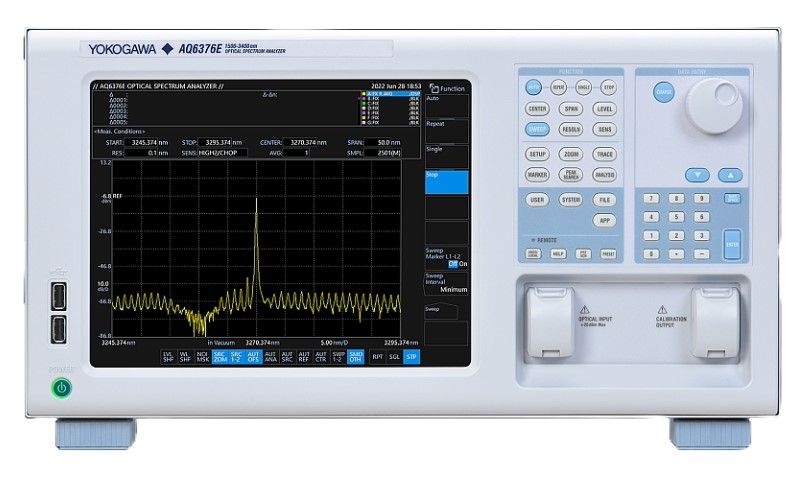

Yokogawa AQ6376E
| Atributo | Valor |
|---|---|
| Rango de longitud de onda | 1500 nm a 3400 nm |
| Resolución de longitud de onda | 0,1 nm (mínimo) |
| Precisión de longitud de onda | ±0,5 nm |
| Rango dinámico | 60 dB o más |
| Rango de medición de nivel | -70 dBm a +20 dBm |
| Precisión de nivel | ±0,4 dB |
| Interfaz de fibra óptica | Conector FC/PC estándar (compatible con fibra monomodo) |
| Pantalla | Pantalla TFT LCD a color de 8,4 pulgadas |
| Interfaces de comunicación | USB, LAN (Ethernet), GP-IB (opcional) |
| Fuente de alimentación | 100 V a 240 V CA, 50/60 Hz |
Yokogawa AQ6376E Options:
- AQ6376E - -10 - Standard model
- AQ6376E - -L1 - Wavelength reference source (Built-in light source)
- AQ6376E - -D - Power cord: UL/CSA standard and PSE compliant, 125 V
- AQ6376E - -F - Power cord: VDE/Korean standard, 250 V
- AQ6376E - -R - Power cord: Australian standard, 250 V
- AQ6376E - -H - Power cord: Chinese standard, 250 V
- AQ6376E - -Q - Power cord: British standard, 250 V
- AQ6376E - -N - Power cord: Brazilian standard, 250 V
- AQ6376E - -T - Power cord: Taiwanese standard, 125 V
- AQ6376E - -B - Power cord: Indian standard, 250 V
- AQ6376E - -U - Power cord: IEC Plug Type B, 250 V
| Model | AQ6376E |
|---|
YOKOGAWA AQ6376E Optical Spectrum Analyzer
The Yokogawa AQ6376E Optical Spectrum Analyzer is designed with extensive experience in optical Test & Measurement, stands out as the most reliable and versatile Optical Spectrum Analyzers. This instrument offers exceptional resolution, sensitivity, and a wide measurement power range, making it suitable for diverse applications in R&D and manufacturing. The AQ6376E excels in eliminating interference from water vapor and high order diffracted light, ensuring accurate measurements.
The Yokogawa AQ6376E Optical Sprctrum Analyzer's flexibility allows users to fine-tune parameters for specific testing requirements. With fast measurement capabilities and built-in analysis functions, the AQ6376E optimizes productivity and cost-effectiveness in optical device evaluation. It also offers application-specific modes and remote control options, making it a valuable tool in various industries, from telecommunications to instrumentation and beyond.
Specifications for the YOKOGAWA AQ6376E Optical Spectrum Analyzer Include:
| Wavelength Range | 1500 to 3400 nm |
| Wavelength Resolution Settings | 0.1, 0.2, 0.5, 1 and 2 nm |
| Level Sensitivity | -65 dBm |
| Wavelength Accuracy | ±0.05 nm Full Range |
