Yokogawa AQ6377
| Atributo | Valor |
|---|---|
| Rango de longitud de onda | 1500 nm a 3400 nm |
| Resolución de longitud de onda | 0,1 nm |
| Precisión de longitud de onda | ±1 nm |
| Rango dinámico | 60 dB o superior |
| Nivel de sensibilidad mínimo | -60 dBm |
| Rango de potencia de entrada | -60 dBm a +20 dBm |
| Precisión de nivel de potencia | ±0,5 dB |
| Interfaz de comunicación | USB, LAN (Ethernet), GPIB |
| Pantalla | Pantalla TFT en color de 8,4 pulgadas |
| Aplicaciones principales | Análisis de fuentes de luz de banda media infrarroja, caracterización de láseres y componentes ópticos en el rango MIR |
Yokogawa AQ6377 Options:
- AQ6377 - -10 - Standard model (Spec code)
- AQ6377 - -L1 - Wavelength reference source (Built-in light source)
- AQ6377 - -D - UL/CSA standard and PSE compliant, 125 V (Power cord)
- AQ6377 - -F - VDE/Korean standard, 250 V (Power cord)
- AQ6377 - -R - Australian standard, 250 V (Power cord)
- AQ6377 - -H - Chinese standard, 250 V (Power cord)
- AQ6377 - -Q - British standard, 250 V (Power cord)
- AQ6377 - -N - Brazilian standard, 250 V (Power cord)
- AQ6377 - -T - Taiwanese standard, 125 V (Power cord)
- AQ6377 - -B - Indian standard, 250 V (Power cord)
- AQ6377 - -U - IEC Plug Type B, 250 V (Power cord)
| Model | AQ6377 |
|---|

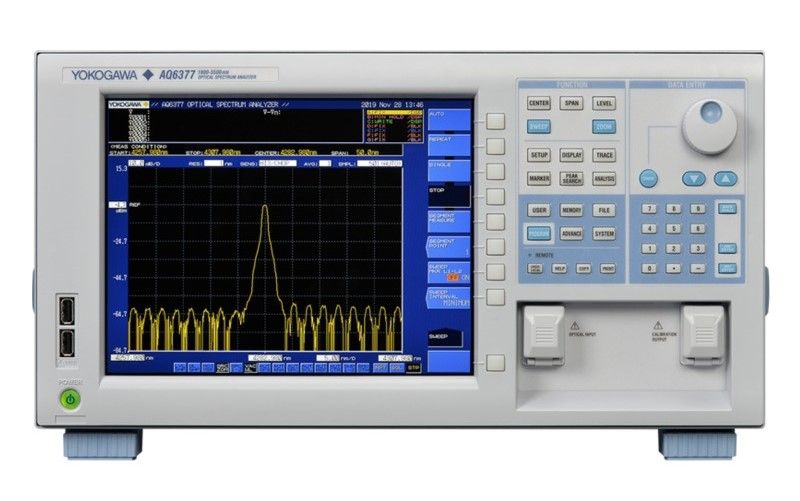

Yokogawa AQ6377 Optical Spectrum Analyzer 1900 - 5500 nm
The Yokogawa AQ6377 Optical Spectrum Analyzer is the latest version of our optical spectrum analyzer series, offering extended wavelength coverage into the MWIR region from 1900 - 5500 nm. Its wide wavelength range makes the AQ6377 ideal for environmental sensing and medical applications. Key features of the Yokogawa AQ6377 Optical Spectrum Analyzer include gas purging input ports/output ports, a built-in cut filter for high order diffracted light, and a novel double speed mode which increases the sweep speed up to 2 times compared to the standard sweep mode.
The Yokogawa AQ6377 Optical Spectrum Analyzer uses a free-space optical input structure (i.e. no fiber is mounted inside the instrument), most effective for guaranteeing high coupling efficiency, measurement repeatability, and no maintenance. Large touchscreen display along with a suite of electrical interfaces allow the user to easily operate it locally in the lab as well as remotely. Overall, the Yokogawa AQ6377 Optical Spectrum Analyzer is a reliable and versatile optical spectrum analyzer suitable for various applications in the optical communication, optical component, and laser diode industries.
Specifications for Yokogawa AQ6377 Optical Spectrum Analyzer 1900 - 5500 nm Include:
| Wavelength range | 1900 to 5500 nm |
| Dynamic range | 50 dB |
| Wavelength accuracy | ±0.5 nm |
| Minimum sampling resolution | 0.01 nm |
