Yokogawa CT200
| Atributo | Valor |
|---|---|
| Tipo de transformador de corriente | Transformador de corriente de pinza flexible |
| Rango de medición de corriente | 0 A a 200 A CA |
| Frecuencia de trabajo | 50 Hz / 60 Hz |
| Precisión | ±1% de la lectura |
| Salida | 0 a 333 mV CA |
| Diámetro máximo del conductor | 55 mm |
| Temperatura de funcionamiento | -10 °C a +55 °C |
| Temperatura de almacenamiento | -25 °C a +70 °C |
| Longitud del cable | 2 m |
| Categoría de instalación | CAT III 300 V |
Yokogawa CT200 Options:
- CT200 - A1559WL - Current Sensor Cable, Cable length 3 m for Shunt Resistor Box
- CT200 - A1560WL - Current Sensor Cable, Cable length 5 m for Shunt Resistor Box
- CT200 - A1589WL - Direct Current Input Cable, Burden resistor 2.7 Ω, Cable length 3 m
- CT200 - A1628WL - Direct Current Input Cable, Without Burden resistor, Cable length 5 m
- CT200 - A1325EZ - Shunt Resistor Box, 20 Ω ±0.02%, for CT60/CT200
- CT200 - B8200JQ - Output connector, D-Sub 9-pin connector with 2 screws (female on connector side)
- CT200 - B8200JR - Load resistor, 10 Ω/0.25 W (×4)
- CT200 - 758917 - Measurement lead set, 75-cm long cable, 2 pieces (red and black) in set
- CT200 - 758921 - Fork terminal adapter set, 4-mm banana plug-to-fork terminal, 2 pieces (black and red) in set
- CT200 - 758922 - Small alligator-clip adapter set, Safety terminal-to-alligator-clip adapter, 2 pieces (black and red) in set, Rated 300 V
- CT200 - 758929 - Large alligator-clip adapter set, Safety terminal-to-alligator-clip adapter, 2 pieces (black and red) in set, Rated 1000 V
- CT200 - 758923 - Safety terminal adapter set, Spring-hold type, 2 pieces (black and red) in set
- CT200 - 758931 - Safety terminal adapter set, Spring-fastened type, 2 pieces (black and red) in set
| Model | CT200 |
|---|

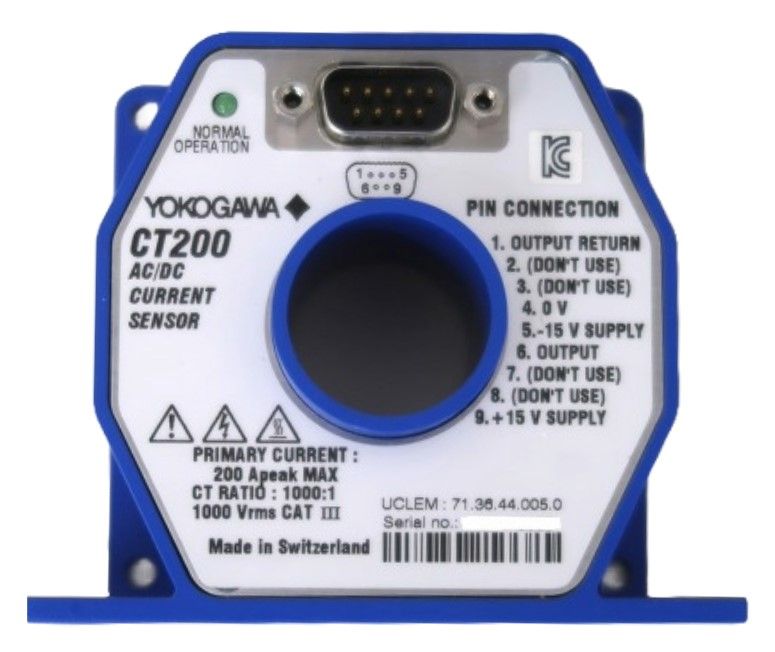

Yokogawa CT200 AC/DC Currenct Sensor
Yokogawa CT200 AC/DC Currenct Sensor offers a wide range of reliable cur sensors optimized for multichannel measurements of large AC/DC currents. The cur output mode makes it possible to connect the AC/DC cur sensors to the direct cur input terminals of the WT Series Power Analyzers and PX8000 Precision Power Scope for measurements. With a single power meter, you can measure very small currents by direct input and large currents of up to 2000 A using the CT200 AC/DC Currenct Sensor (and of up to 1400 A using the 751552 clamp probe).
Yokogawa CT200 AC/DC Currenct Sensor offers excellent linearity ensureing precise power measurement for applications that require wide dynamic range where cur levels change dramatically. It's high resistance to electromagnetic noise minimizes the influence on cur readings and enables accurate measurements. The CT200 AC/DC cur sensors can be used for large cur and power measurements in a wide range of application areas, such as hybrid electric and pure electric vehicles, batteries, inverter motors, energy, railway, and industrial motors.
Specifications for the Yokogawa CT200 AC/DC Currenct Sensor Include:
| Cur range | 0 to 200 A (DC), 200 Apeak (AC) |
| Frequency range | DC to 500 kHz (-3 dB) |
| Accuracy | ±(0.05% of rdg + 30 µA) |
| Measurement range | DC to 500 kHz ( ˆ’3 dB) |
